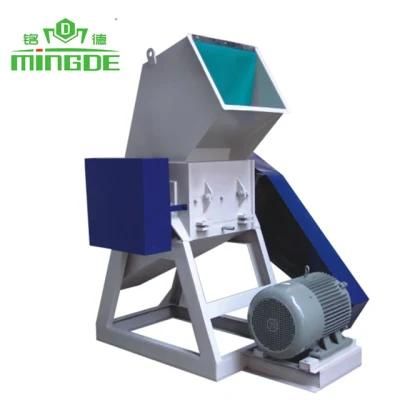

Single Shaft Shredder/Wood Shredder/Plastic Shredder/Paper Shredder
Guangzhou 3E Machinery Co., Ltd.- Type：Hard Plastic Crusher
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
- Color：White & Blue
- Motor Power：15-132kw
Base Info
- Model NO.：WT2260
- Capacity：500-10000kg,H
- Transport Package：According to customer requirements
- Specification：CE
- Trademark：3E
- Origin：China
- HS Code：84778000
- Production Capacity：800sets,Year
Description
|
Model Item |
WT2250 | WT2260 | WT3060 | WT3080 |
| A(mm) | 1780 | 1780 | 2455 | 2455 |
| B(mm) | 1190 | 1350 | 1478 | 1678 |
| C(mm) | 857 | 857 | 1200 | 1200 |
| D(mm) | 502 | 602 | 600 | 800 |
| E(mm) | 546 | 546 | 500 | 500 |
| H(mm) | 1754 | 1754 | 1700 | 1700 |
| Cylinder Stroke(mm) | 500 | 500 | 750 | 750 |
| Rotor Diameter(mm) | φ224.7 | φ224.7 | φ300 | φ300 |
| Main Shaft Speed (r/min) | 83 | 83 | 83 | 83 |
| Screen Mesh(mm) | φ25 | φ25 | φ40 | φ40 |
| Rotor-knives(PCS) | 24+4 | 28+4 | 30+4 | 42+4 |
| Stator-knives(PCS) | 2+2 | 2+2 | 2 | 2 |
| Main Motor Power(KW) | 15 | 18.5 | 22 | 30 |
| Hydraulic Motor Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 |
| Weight(KG) | 1300 | 1400 | 1550 | 1950 |
