• Model NO.：PL
• Computerized：Non-Computerized
• Certification：QS, ISO9001:2008, CE
• Applicable Material：HDPE LDPE PP Films,Bags,Barrel, Bottles
• Processing Capacity：300-2000kg,H
• Machine Type：Plastic Crushing Washing Drying Recycling Machine
• Raw Material：Waste Plastic
• Final Product：Clean Dry Plastic Scrap
• Related Machine：Waste Plastic Pelletizing Machine
• Machine Color：Customizable
• Machine Warranty：12 Months
• Max. Capacity：3000kg,H
• Automatic Grade：Full Automation
• Final Moisture：1-2%
• Water Consumption：1-2m3,H
• Machine Material：304 Stainless Steel
• Steam Use：Optional
• Name：Plastic Recycling Machine
• Transport Package：Wood Package
• Specification：12*3*4meter
• Trademark：PLASTAR
• Origin：China
• HS Code：8477800000
• Production Capacity：100sets,Year

ModelCapacity(kg/h)Power consumption  (kw)  Water consumption    (ton/h)ManpowerHumidity ContentMT-300300kg/hour125kw3ton/h3≤5%MT-500500kg/hour260kw4-5ton/h3≤5%MT-10001000kg/hour395kw6ton/h4≤5%Remark: we can customize the washing line according to client's material and product requirement.


Mainly Progressing Flow(1000KG/H pp pe film standard system):

---Belt conveyor: conveying dirty plastic film or bag into crusher. If too much scrap iron, metal detector may be needed.

--- Crusher: can crushing with water, cut plastic film or bag into small pieces

--- Screw loader: load film pieces into the next step

--- High-speed washing machine: Washing out the sand, soil and loading the material

---Washing tank: separate the sand, soil and other dirties

---Squeezing dryer machine: Remove the water from the material

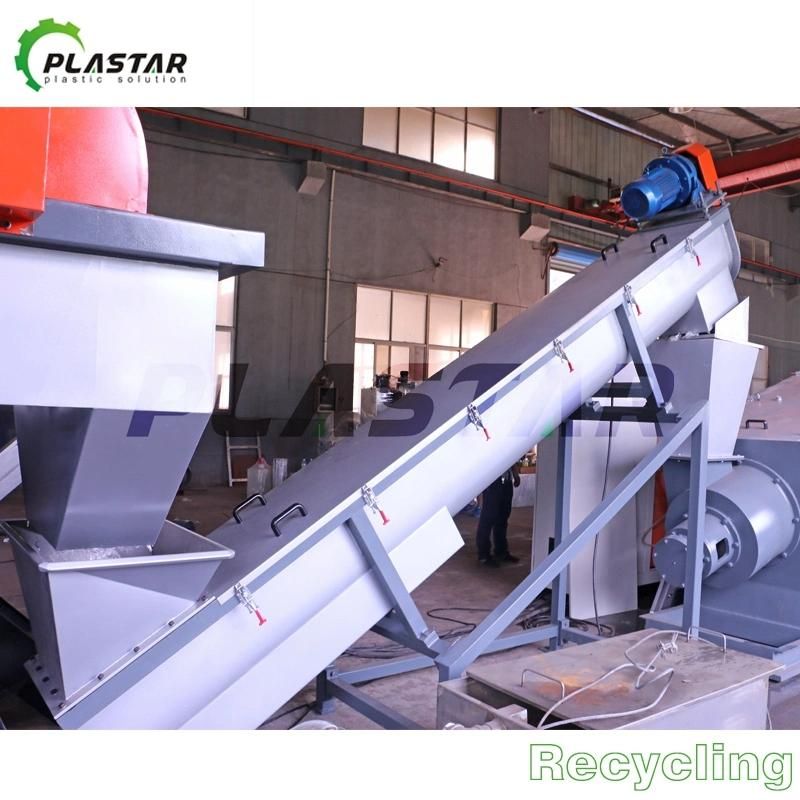

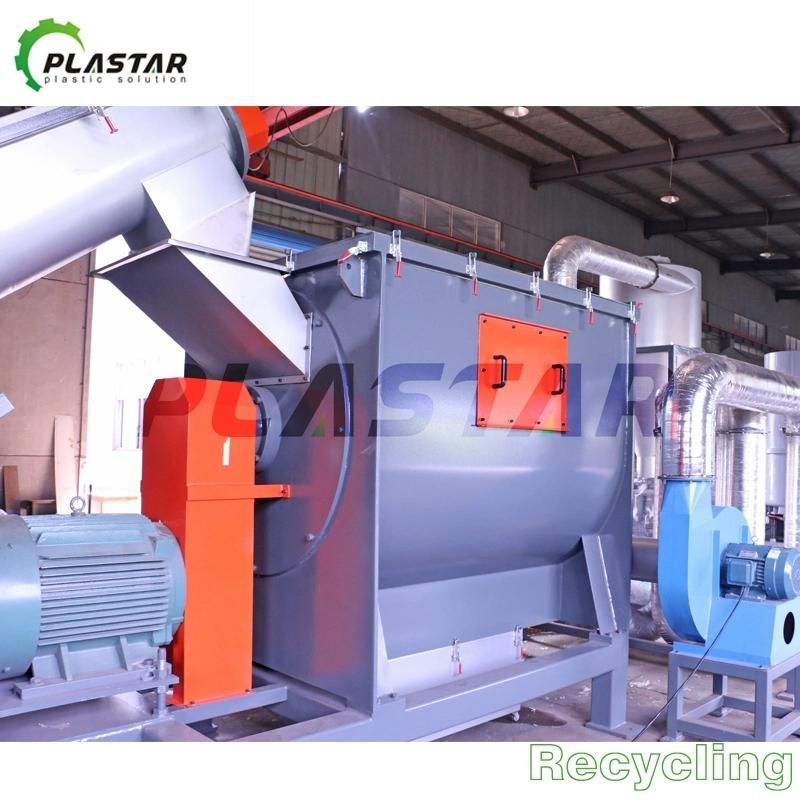

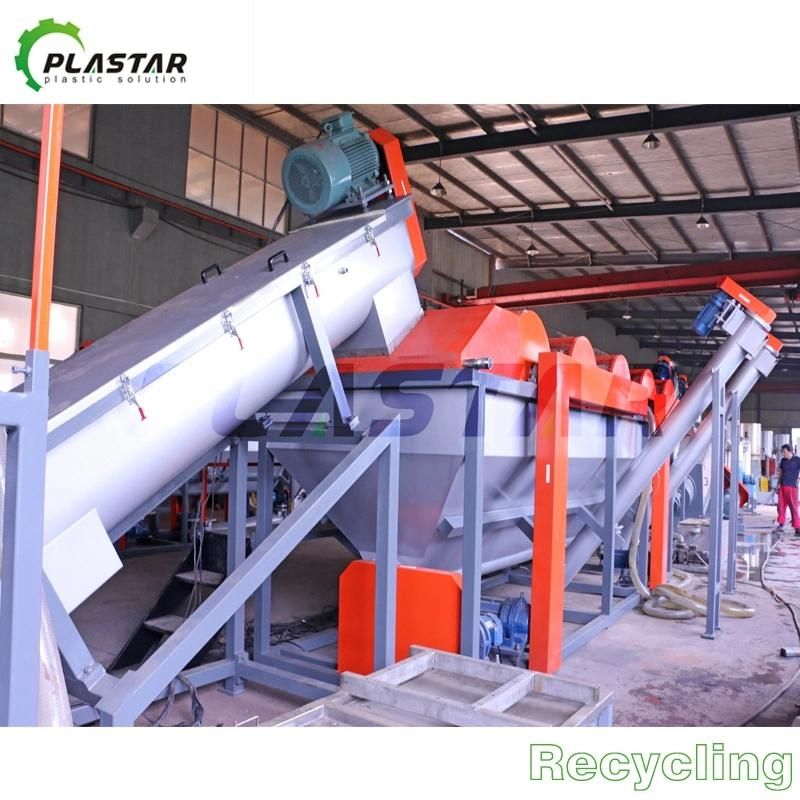

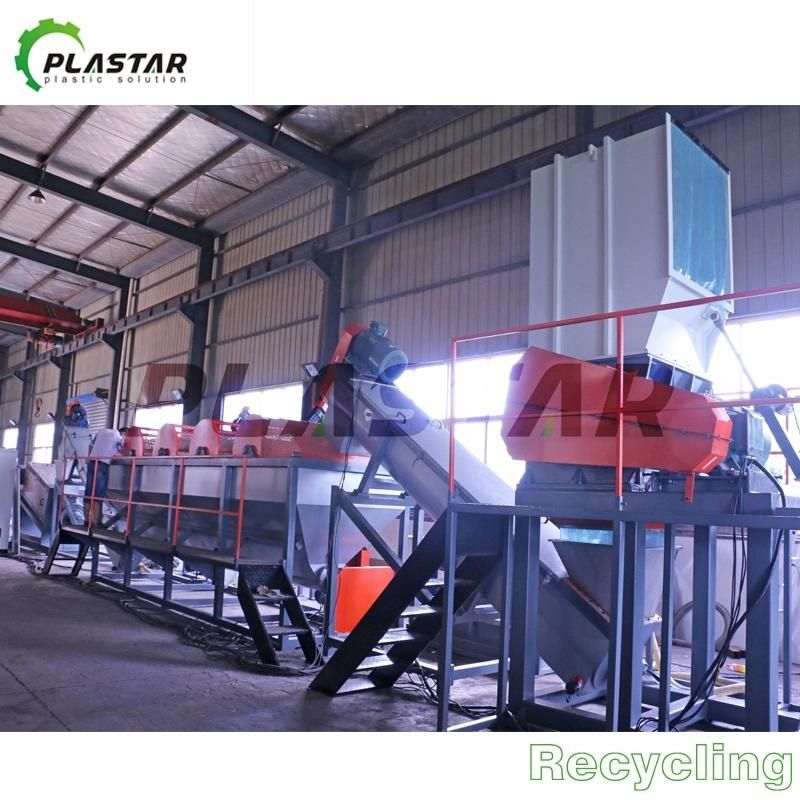

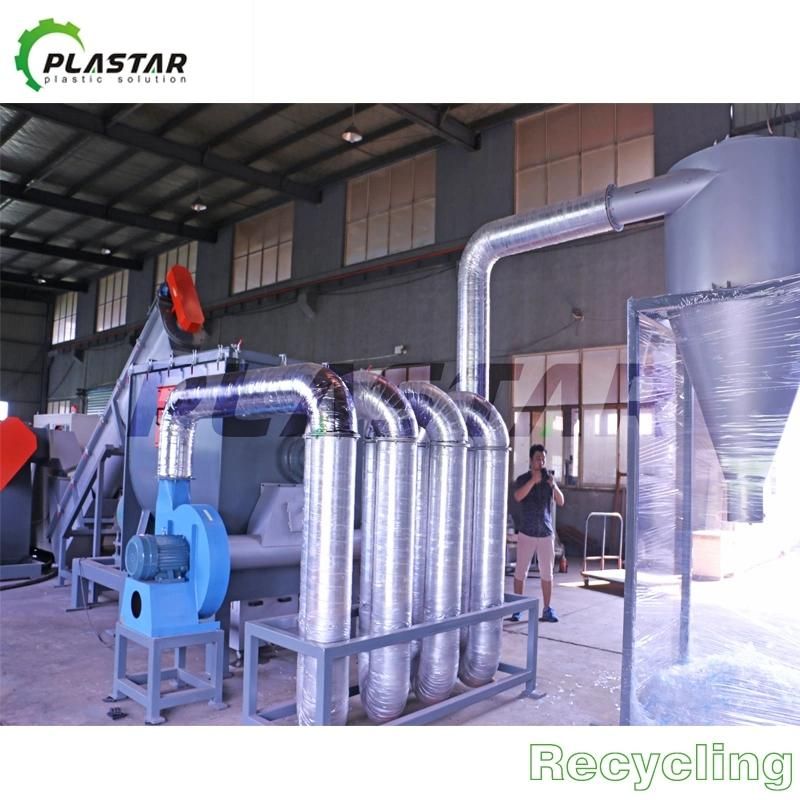

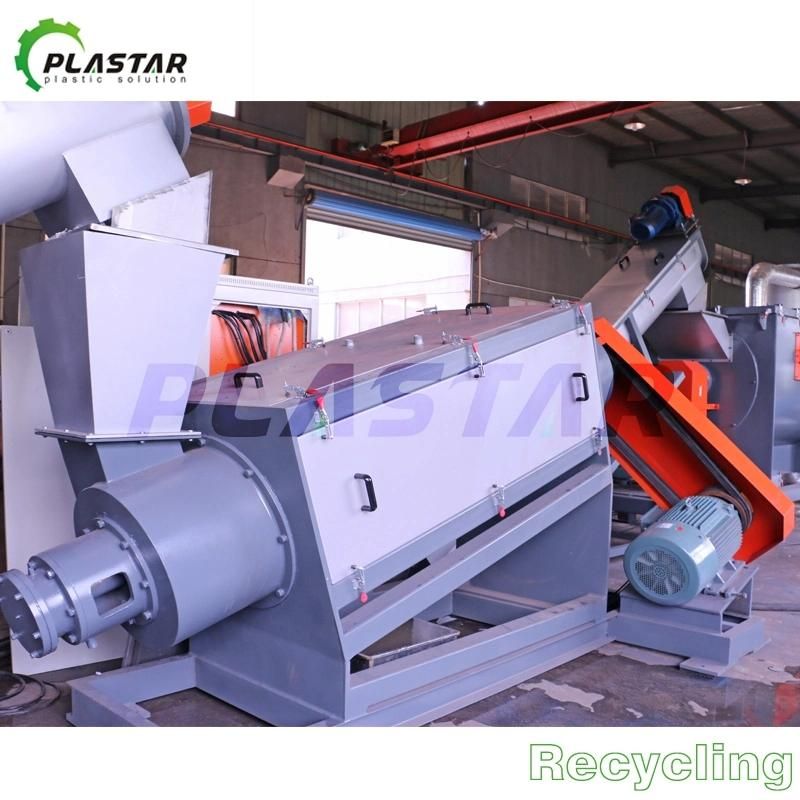

Machine pcitures for reference:

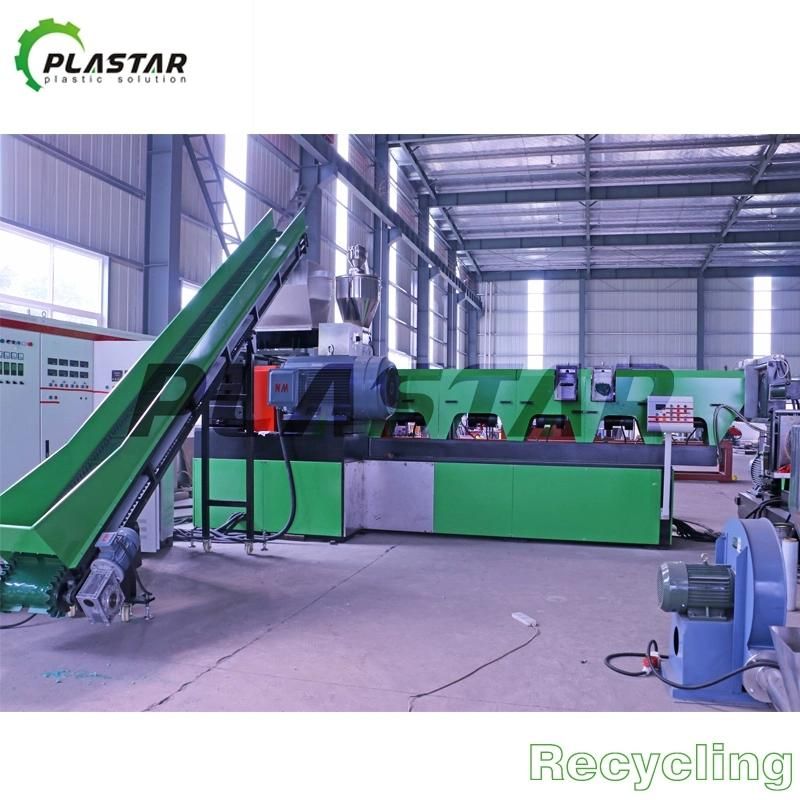

We also produce waste plastic pelletizing line for further recycling the waste plastic.

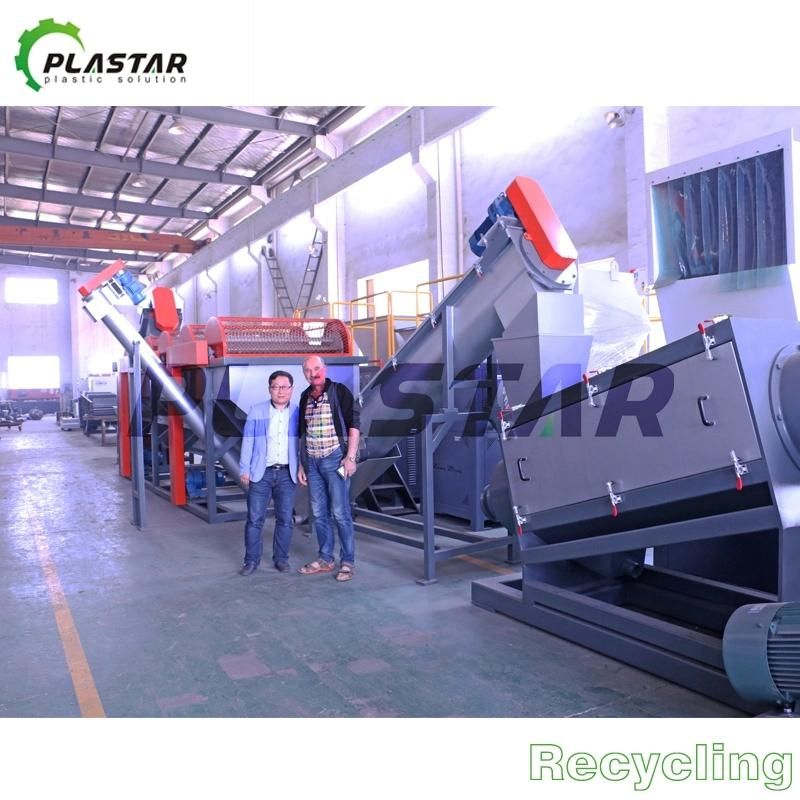

Customer visiting:


Machine package&shipping:


Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
