100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine

Qingdao Weier Plastic Machinery Co., Ltd.
  • Type：Profile Extruder
  • Plastic Processed：PE
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：SJ-90,33
  • Engagement System：Non-Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Transport Package：Wooden Case
  • Specification：Width: 100± 2mm
  • Trademark：WEIER
  • Origin：Qingdao China
  • HS Code：84772090
  • Production Capacity：10 Set,Month

Description

Basic Info.

Model NO. SJ-90/33 Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package Wooden Case Specification Width: 100± 2mm Trademark WEIER Origin Qingdao China HS Code 84772090 Production Capacity 10 Set/Month

Product Description

100mm Prefabricated Vertical Drain (PVD) production line with online welding unit


Equipment list
1.SJ-90/33 single screw extruder machine 1 set            Max extrusion capacity 250kg/h
2.Machine mould 1 set (Width of the finished product 100 mm )
3.Cooling water tank 1 set
4.Haul off machine 1 set

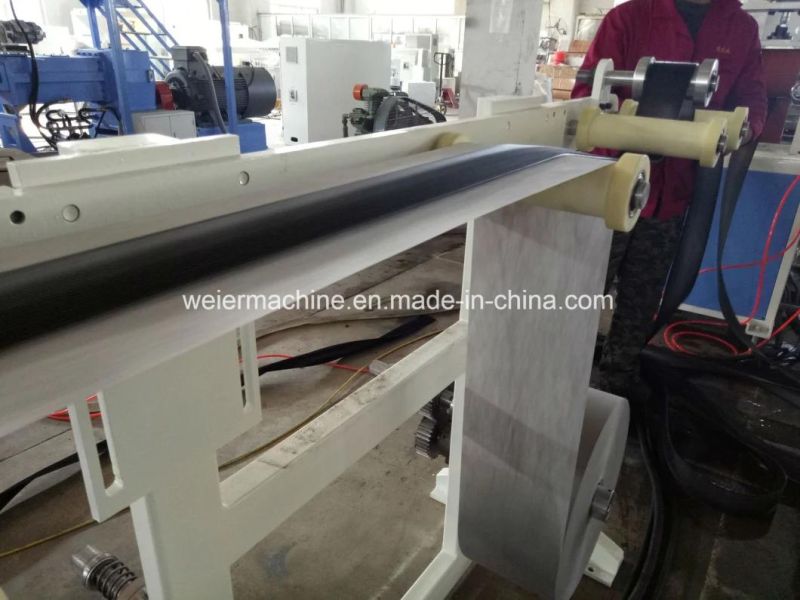

5.Non-woven fabrics material rack 1 set
6.Guiding device 1 set
7.Shrink forming device 1 set
8.Bonding apparatus 1 set
9.Composite and tightening device 1 set
10. Haul off machine 1 set

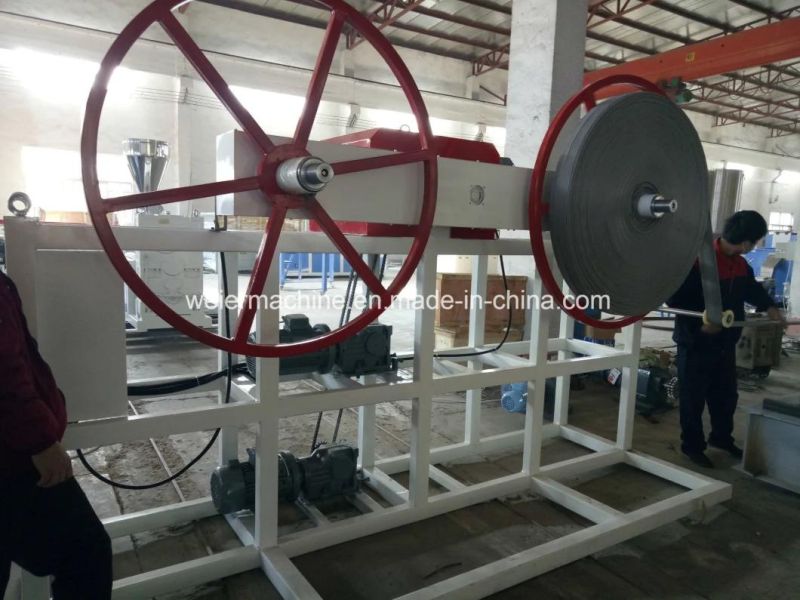

11.Double station rewinder 1 set

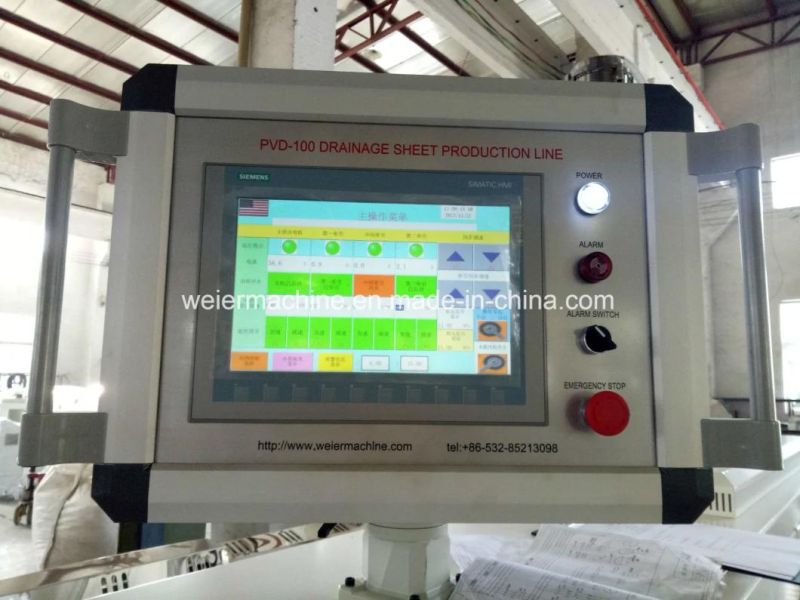

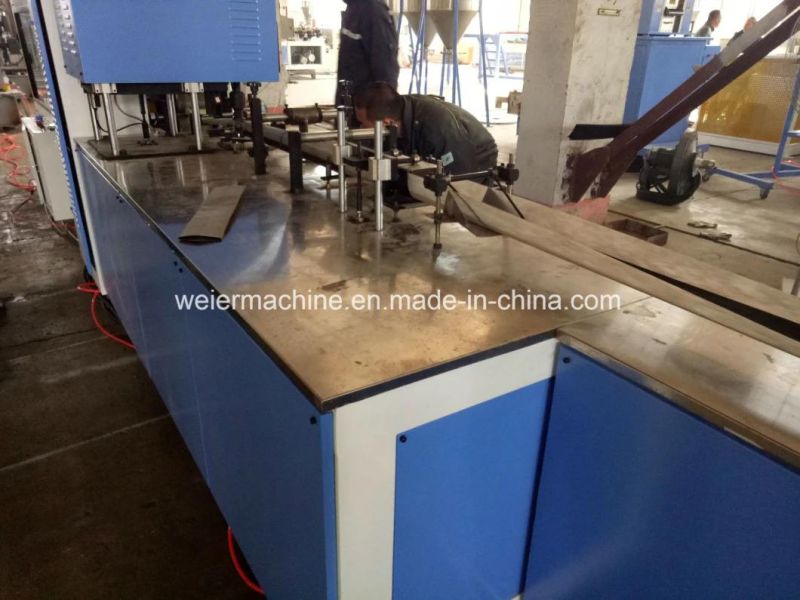

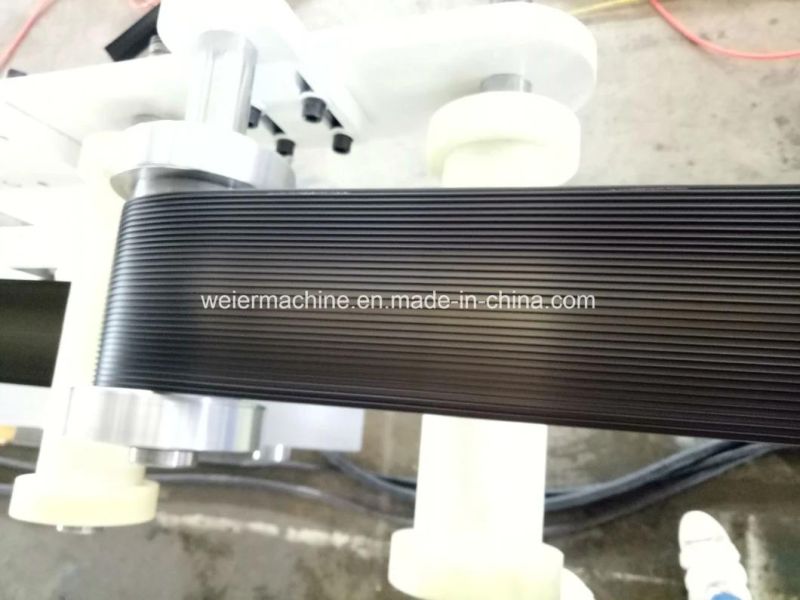

Equipment photos
100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine
100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine
100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine
100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine
100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine
Description
Prefabricated Vertical Drains, also called Wick Drains.
Prefabricated Vertical Drain(PVD) is a composite product of plastic strip with outer nonwoven geotextile layer. It is widely used for soft ground improvement due to its excellent physical, mechanical and hydraulic properties. PVD is an effective solution for soft ground treatment in minimizing the settlement issue after construction.

Specification:

Thickness: 3.5mm, 4.0mm, 4.5mm.

Width: 100±2mm

Roll Length: 200mm


Applications
PVD is applied to reduce construction time and speed up the consolidation of soft ground for the following work:

  1.  Improvement of dredged clay fill
  2.  Road, railway and airport construction
  3.  Development of building and industrial complex site
  4.  Development of seaport area
  5.  Bank revetment
  6. Construction of gas and oil storage facilities.
