• Model NO.：CNMC-500
• Application：Polyurethane Spray or Injection
• Power：3 Phase 4 Wires 380V 50Hz
• Driven Mode：Pneumatic
• Air Source：0.5-0.8 MPa More Than 1.3m3,Min
• Transport Package：Wooden Case
• Trademark：hightop
• Origin：Shandong
• HS Code：8428399000
• Production Capacity：20 Sets a Month

Basic Info.

Model NO. CNMC-500 Application Polyurethane Spray or Injection Power 3 Phase 4 Wires 380V 50Hz Driven Mode Pneumatic Air Source 0.5-0.8 MPa More Than 1.3m3/Min Transport Package Wooden Case Trademark hightop Origin Shandong HS Code 8428399000 Production Capacity 20 Sets a Month

Product Description

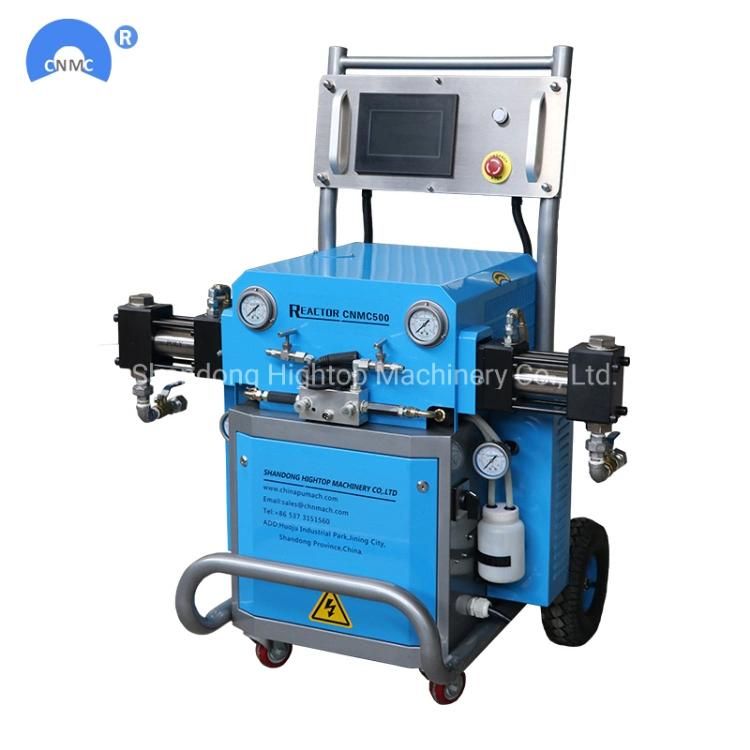

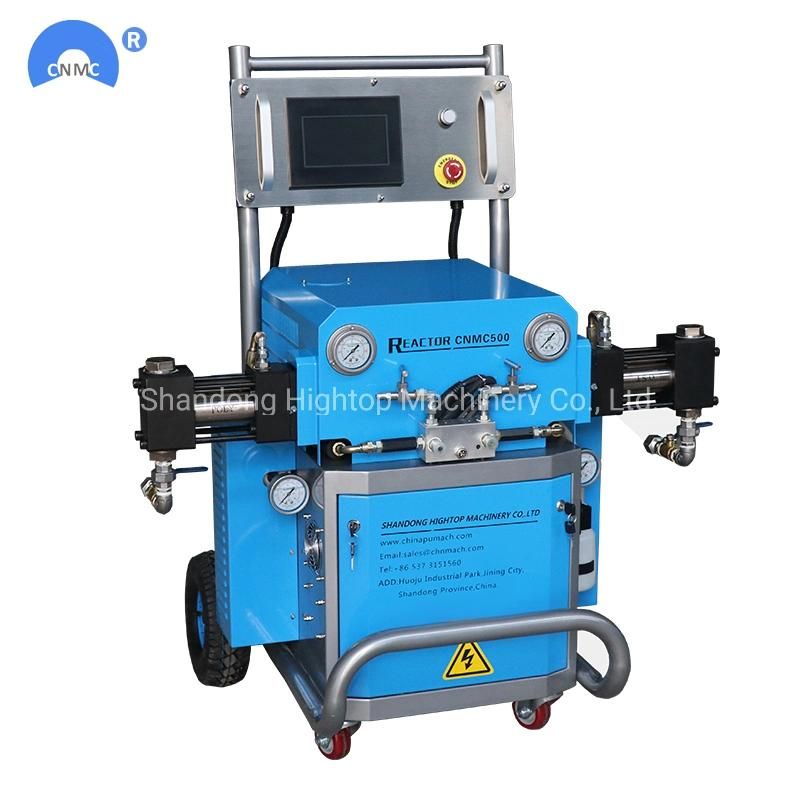

Hydraulic polyurea spray foam machine

Introduction

1. Hydraulic supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. minimizing spraying congestion with multi-feedstock device;

4. multi-leakage protection system to protect the safety of the operator;

5. equipped with emergency switch system, help operator deal with emergencies rapidly;

6. great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. digital counting system can understand original consumption timely;

8. humanized design with equipment operation panel, super easy to get the hang of it;

9. the latest spraying gun has great features like small volume, light weight, low failure rate, etc;

10. lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity


Polyurethane Spray Machine Equipment applications:

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

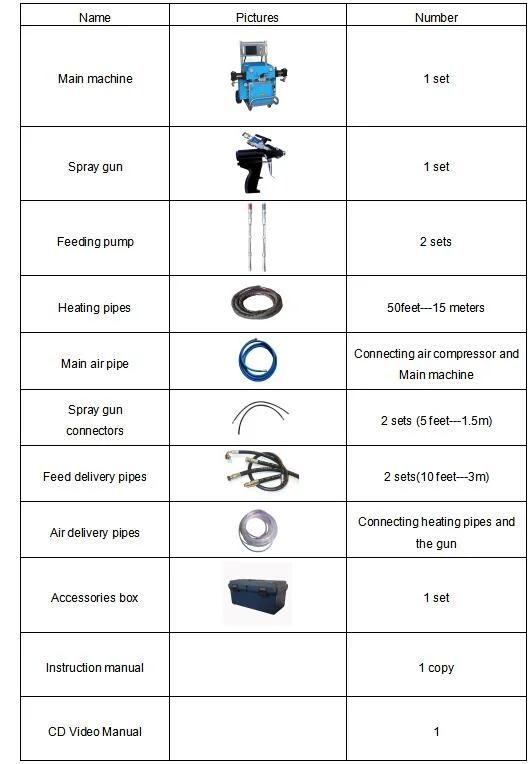

Equipment Standard Configuration:

Technical Data:

Project	CNMC-500
Proportion Fixed Mainframe	1 set
Self-cleaning spray gun	1 set
Gross weight	300KG
Net weight	250KG
Feed pump	2 sets
Heated hose	49.2 ft (15 m)
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Max Working pressure	23MPa (230 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	24kg/min (42 lb/min)
Each heater power	3000W
Heating hose power	1000W / 15m
Total power	12000W
Voltage	230V 1-ph / 3-phs 380V/400V 3-ph
Machine size	870mm * 700mm * 1150mm
