Professional Manufacturers Direct Selling Ce Customerized Easy Used Energy Conservation ...
Zhejiang Songshan Machinery Co., Ltd.- Raw Material：HDPE, LDPE, LLDPE; Virgin and Recycled
- Screw Diameter：50mm
- Certification：CE
- Condition：New
- Warranty：12 Months
- Blower：3kw
Base Info
- Model NO.：SJ-65
- Automatic：No
- Die Size：50,80mm
- Blow Moulding Type：Extrusion Blow Moulding
- Power(W)：11kw
- Ld Ratio：28:1
- film Width：1200mm
- Weight：2500kg
- Transport Package：Plastic Film; , Wooden Boxes, or as Required
- Trademark：songshan
- Origin：Zhejiang, China (Mainland)
Description
Model
SJ-50
SJ-55
SJ-65
Features
Raw Material
HDPE, LDPE, LLDPE; Virgin and Recycled
Film Width
600mm
800mm
1200mm
Output
30Kgs
40Kgs
65Kgs
Film Thickness
0.01mm-0.15mm
Dimension
4×3×4M
5×3.5×4.5M
6×4×5.5M
Extrusion Unit
Screw Diameter/LD ratio
50mm
28:1
55mm
30:1
65mm
30:1
Motor
11KW
15KW
22KW
Gearbox
133
146
173
Die Head Type
Fixed Die Head
Die Size
50/80mm
80/160mm
160/260mm
Taking-up Tower
Upper Tower Type
Up and down; embossing roller and gusseting
Roller Length
700mm
900mm
1400mm
Roller Working Way
Opened and Tightened By Air Cylinders
Winding Station
Winder Type
Single winding fraction type
Rollers
700mm
900mm
1400mm
Winding Diameter
650mm
Control Panel
Electronics
Top China Brand
Film blowing machine features:

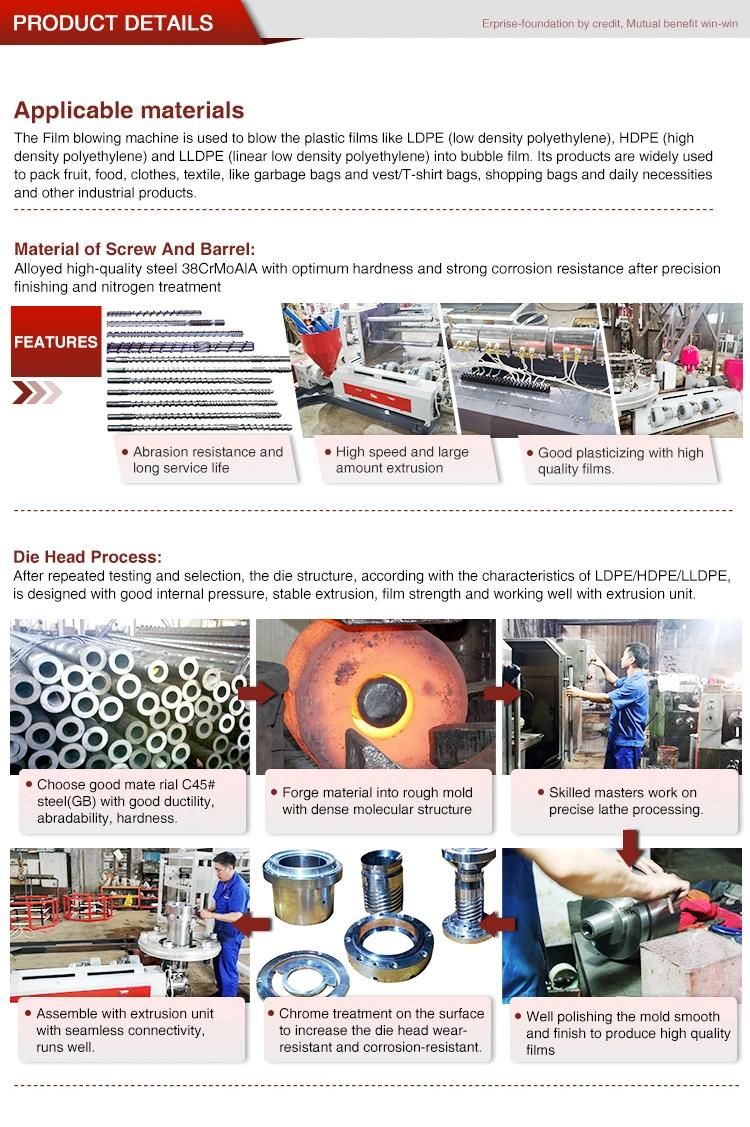

Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
Heaters: stainless heaters
Film blowing machine control Panel
1. Temperature of barrel and die head controlled by digital temperature controller
2. Inverter controls main motor driving speed and film taking up motor running speed
3. Electronics used are all Chinese top brand
4. Current meters and Voltage meters show the working state of motors
5. Small fan installed to avoid high temperature caused by long time running
