Ziplock Bag Film Blowing Machine (SJA-50-55) (Ziplock Film Extruder)
RUIAN YUNBANG MACHINE CO., LTD.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJA-50-55
- Machine Weight：1.2 T
- Certification：CE, ISO9001:2008
- Output：30-60kg,H
- Main Motor：11kw
- Total Power：25kw
- Transport Package：N,A
- Specification：CQC, ISO9001, CE, SGS
- Trademark：YUNBANG
- Origin：China
- HS Code：84773000
- Production Capacity：15 Sets,Month
Description
Basic Info.
Model NO. SJA-50-55 Machine Weight 1.2 T Certification CE, ISO9001:2008 Output 30-60kg/H Main Motor 11kw Total Power 25kw Transport Package N/A Specification CQC, ISO9001, CE, SGS Trademark YUNBANG Origin China HS Code 84773000 Production Capacity 15 Sets/MonthProduct Description

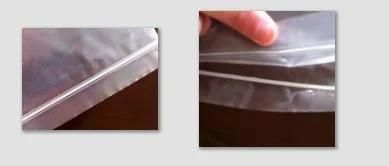

Product DescriptionUSERaw materials of this machine should be selected LDPE, index in 4.5-5.5, widely applying to high grade packing of food, sugar, medicine, jewelry, clothing, metal fittings, documents, directions, files and etc., The market potentiality is great.
Feature
We have the production history for many years, products for many years, products have the features of with reliable quality, easy to operate, correct. This machine is composed by heating, automatic control, die head of film blowing, drawing film in and etc. Mechanisms with reasonable designand stable performance.
| Technical Standard | Q/ZDSJ104-2001 |
| Diameter of Screw | Φ50mm |
| Screw L/D Ratio | 28:1(L/D) |
| Rational Speed of Screw Stem | 10-100rpm |
| Specification OF Die Head (mm) | Φ80/Φ120/Φ160/Φ200/Φ240/Φ300 |
| Thickness of Products | 0.018-0.10mm |
| Folding Width of Products | 80-600mm |
| Power of Main Motor | 5.5-7.5kw |
| Heating Power | 16kw |
| Output | 5-35kg/h |
| Machine Weight | ≈1.6T |
| Overall Dimensions(L×W×H)mm | 5250×1800×4200 |
