• Model NO.：HSD
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Application：PE Shell Pipe Extrusion
• Production Range：630,710,800, 900, 1000, 1200
• Capacity：1000kg,H
• Required Site Area：36m*4*4
• Required Operator：2 Persons
• Transport Package：Standard Package
• Specification：600-1200mm
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：100unit,Year

Basic Info.

Model NO. HSD Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Application PE Shell Pipe Extrusion Production Range 630,710,800, 900, 1000, 1200 Capacity 1000kg/H Required Site Area 36m*4*4 Required Operator 2 Persons Transport Package Standard Package Specification 600-1200mm Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 100unit/Year

Product Description

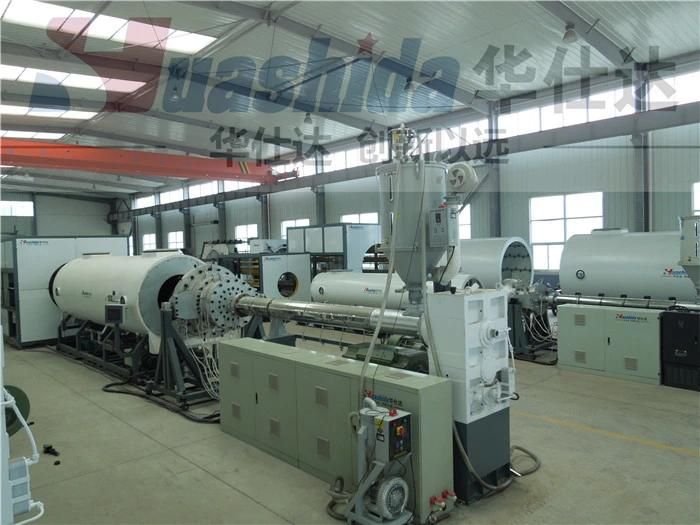

HDPE Jacket Pipe Polyurethane Pre-Insulated Pipe Machine Vacuum Calibration 600-1200mm

HDPE Jacket Pipe Polyurethane Pre-Insulated Pipe Machine is high-efficiency equipment with high speed and energy saving. It is small in size, easy to operate with an automatic control system and has a long service life.

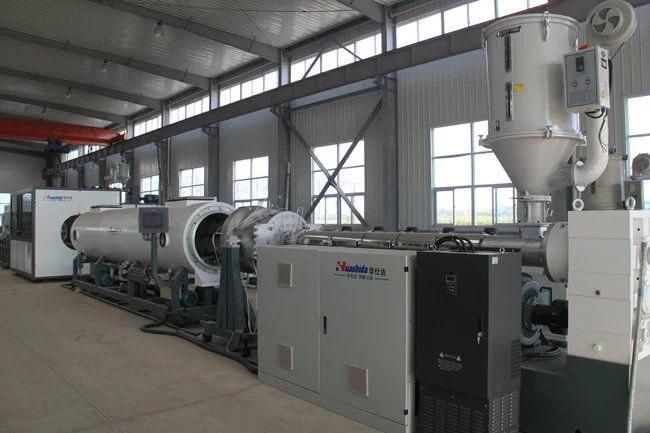

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Stacker

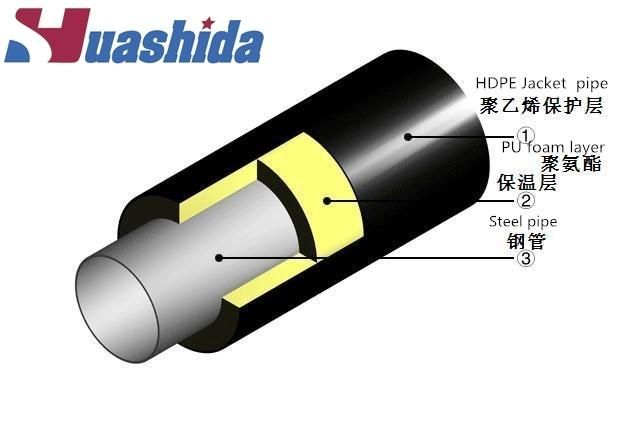

---Pipe Usage: the outer casing of thermal insulating pipe, which is widely used in central heating, oil, natural gas and other industrial areas.
---Pipe/jacket diameter range: 110-1200mm





Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
---Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
---No need to trim edge, once forming.
---High degree of automation, can be operated by one person, saving labor costs.


High-efficiency single screw extruder
---Single screw is with barrier & mixing head; new model barrel with slotting (channel), Both make the security of good jellification, large output and stable performance.


Die-head
The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts. The copper calibrating sleeve fixed in die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter.

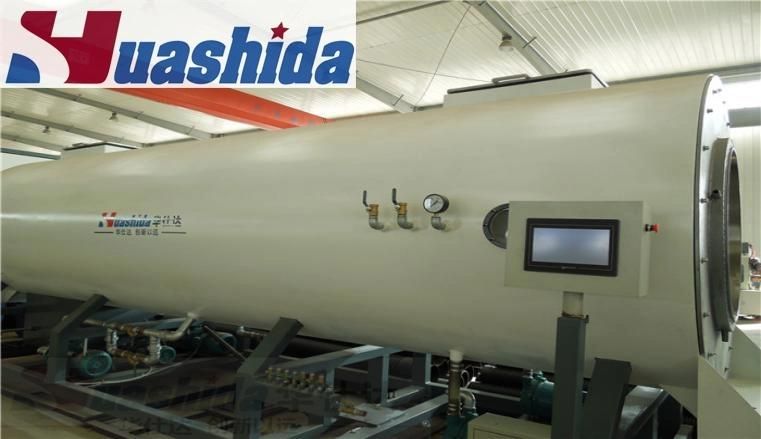

Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to calibrate the outer diameter.  Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.

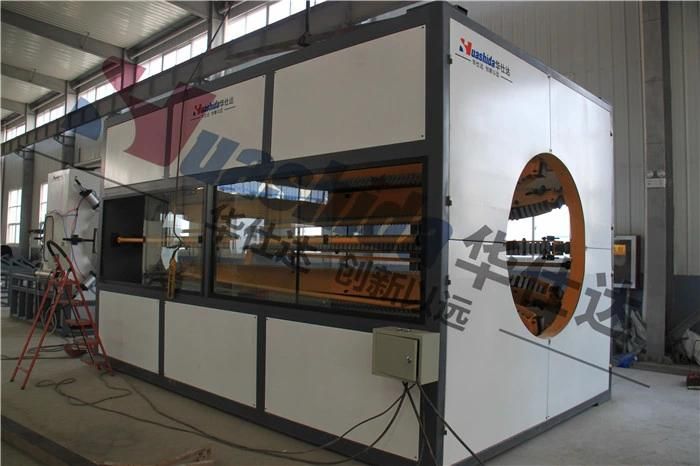

The haul-off machine is mainly composed of a driving device, tracks, clamping structure, adjusting system, side plate and foundation bed. Haul-off caterpillars are driven by AC motor with frequency conversion control to adapt to different extrusion speeds.



No-Dust Cutter
It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.

 Control systemThe complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system can be designed according to customers' requirements.


CUSTOMER VISITING

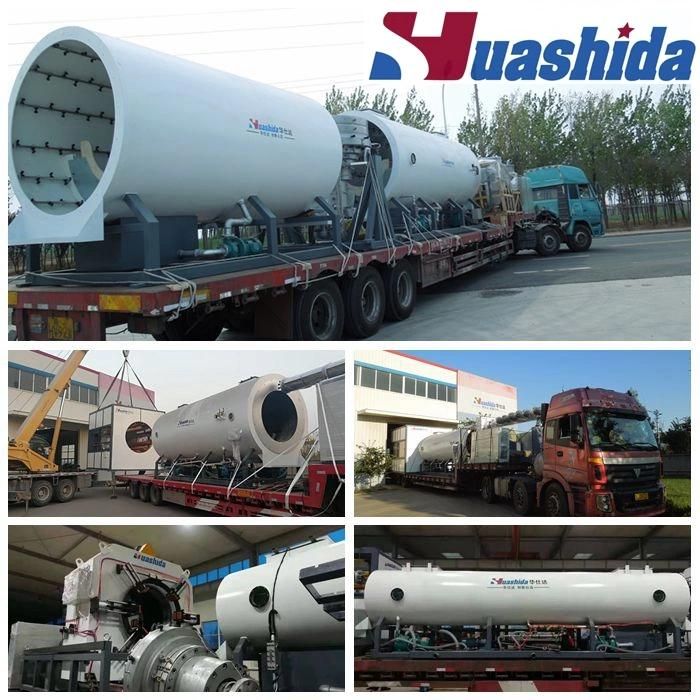

DELIVERY
