• Model NO.：ABLD150

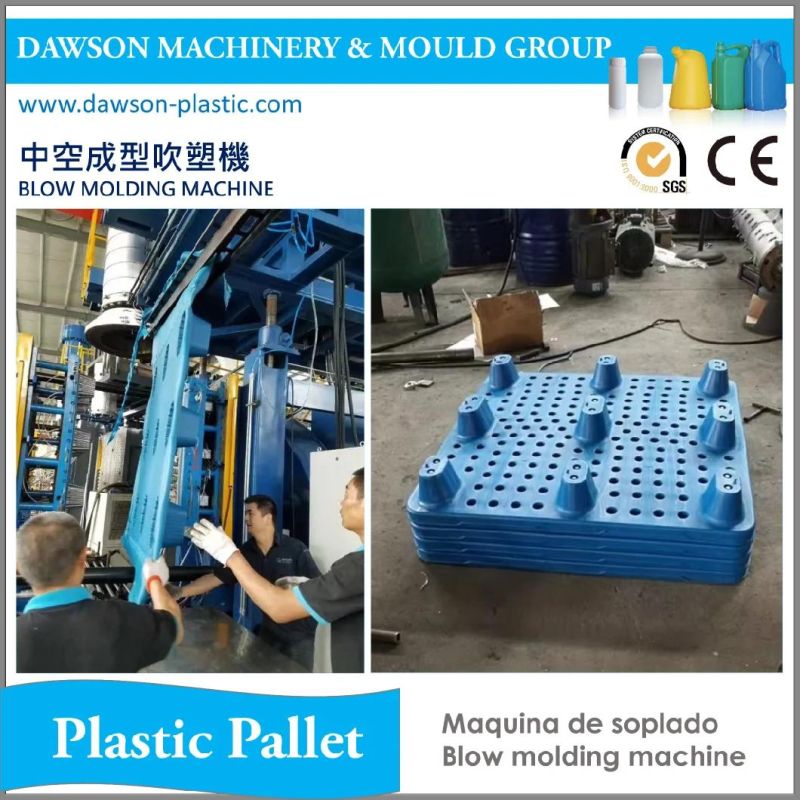

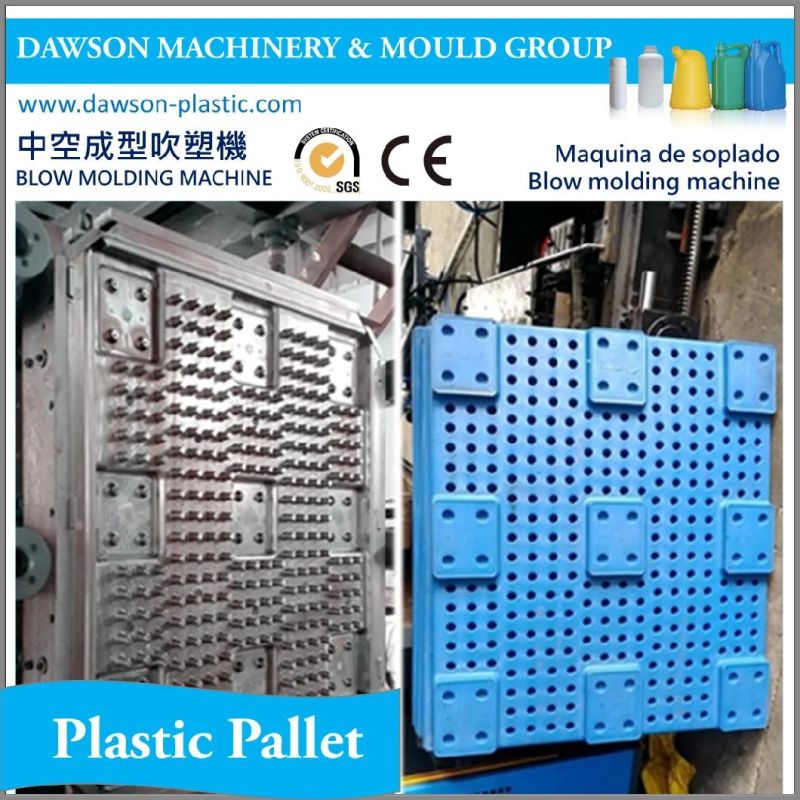

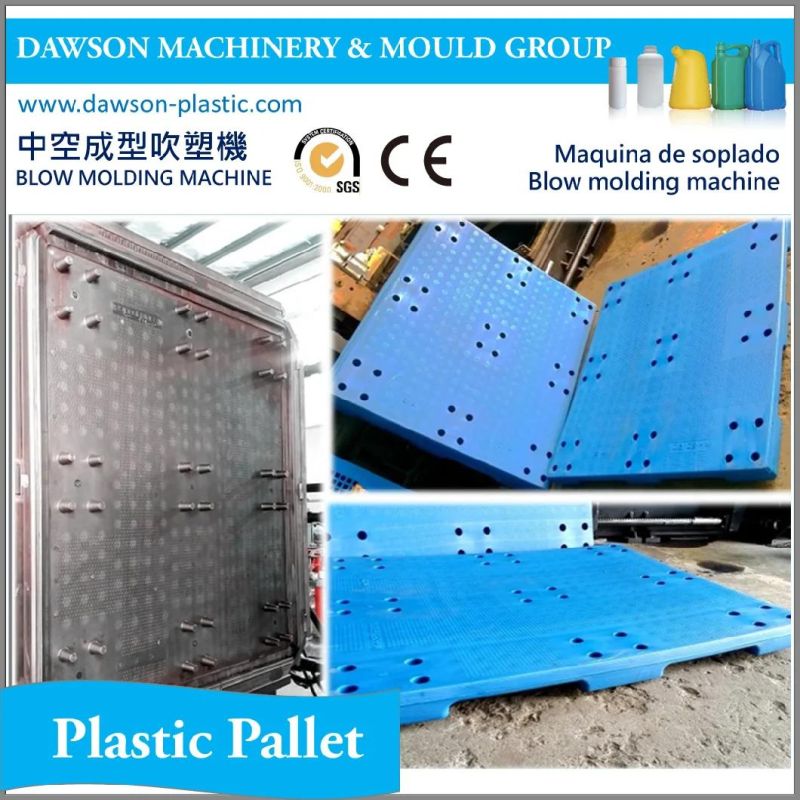

• Application：Drum, Plate, Float, Roadblocks, Medical Bed Board
• Max. Product Volume：250L
• Screw Diameter：120*2 mm
• L/D Ratio：24:1
• Drive Motor：45kw
• Heating Zone with Cooling Fan：6 Zone
• Heating Capacity：25.1 Kw
• Vertical Adjustment of Head：500mm
• Injection Pressure：12 MPa
• Hydraulic Valve：Taiwan Hitech
• Cooling Water for Oil：Fixed
• Operating Pressure：0.8 MPa
• Servo Valve：Moog
• Total Connected Load (Approx.)：114kw,H
• Machine Water Consumption：6000L,H
• Transport Package：Film Packaging
• Specification：ABLD150
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：as Per Samples

extruder1Screw diameter120*2 mm2L/D ratio333Drive motor132*2 Kw4Heating zone with cooling fan6*2 zone5Output/Capacity620~840 Kg/hr(HDPE  particle)6Heating capacity36*2 kwAccumulator  Head1Accumulator capacity70L2DesignFirst in and first out3Heating zone6 zone4Heating capacity64 kw5Max die&pin diameter1000mm6Accumulator push-out stroke measurementTransducer  Italy Gefran7Extruder stopHaveCLAMPING UNIT1Platen size1800X21202Length of mold1730-2200mm3Clamping force1800KN4Close/Open stroke1000-2700mm5Clamping stroke measurementTransducer  Italy Gefran6Hydraulic valveTaiwan HitechPARISON CONTROL1ProgrammerJAPAN MOOG2Servo valve
MOOG
 3Servo cylinderIntergret of die head4Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps
