• Model NO.：TSD- E
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Automation：Automatic
• Computerized：Non-Computerized
• Total Power：4500W
• Transport Package：Aluminium Box with Paper Bag Outside
• Specification：ISO9001: 2000
• Trademark：TSD
• Origin：China
• HS Code：84688000
• Production Capacity：2000set, Year

Basic Info.

Model NO. TSD- E Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Automation Automatic Computerized Non-Computerized Total Power 4500W Transport Package Aluminium Box with Paper Bag Outside Specification ISO9001: 2000 Trademark TSD Origin China HS Code 84688000 Production Capacity 2000set/ Year

Product Description

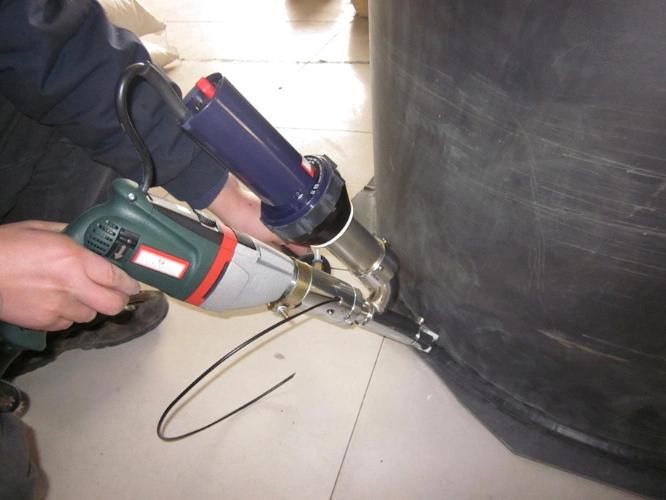

Hand plastic extrusion welder

Hand Extruder Welding Machine



1.widely used in plastic welding, plastic container welding, plastic pipe, plastic tube, plastic plate, electri-welding equipment etc.
2. Three attentions as following:
   a. Thermoplastic plastic HDPE. PP. PVDF and PE can show the characteristic best.
   b.  It is forbidden to use for electric condition plastic (PE-EL), which can bring electric conduction short     curcuit of machine.
   c. It can once weld the line with width of more than 10mm and plastic board with 40mm below.

Technical date:
Item No.: TSD-E
Rated voltage: 220V
Frequency: 50Hz
Temperature scope: 20-650
Max power: 4700W
Diameter of plastic rod: 3-5mm

Modle No.	TSD-E
Voltage	220- 230V
Extruder Power	1300W
Heating Power	3400W
Welding Rate	3.5KG/H
Net Weight	6.1 KG
