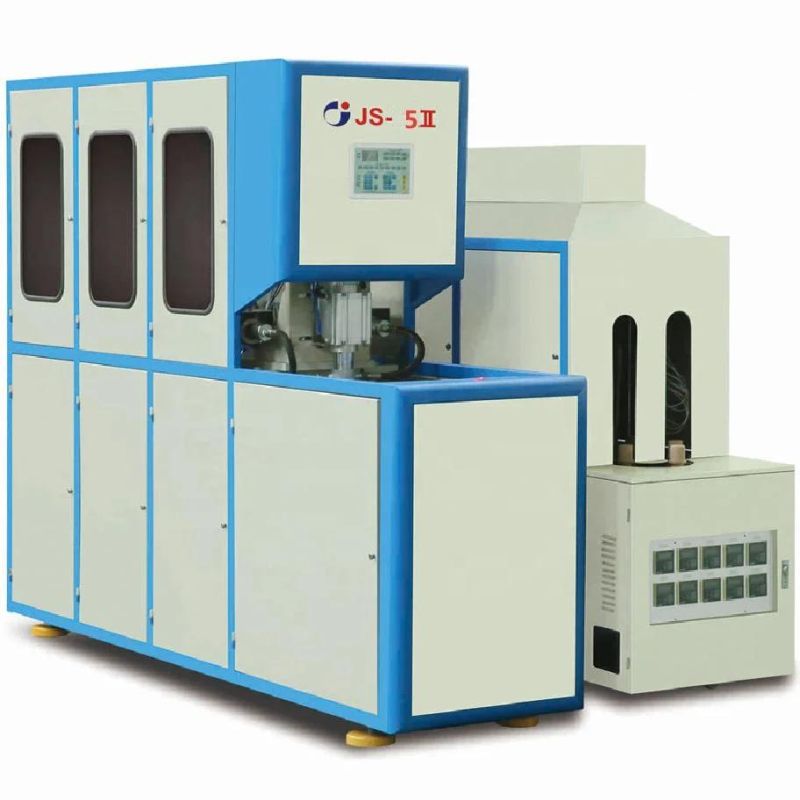

• Model NO.：JS-5II
• Certification：CE
• After-sales Service：1year
• Semi-Automatic：Main Machine:2.0*0.65*1.8 Oven:1.7*0.65*1.5
• Voltage：380V,50Hz
• Dimension(L*W*H)：2.0*0.65*1.8
• Hollow Part Volume：5L
• Clamping Force (Kn)：80
• Power (Kw)：11kw
• Weight (Kg)：950 Kg
• Applicable Industries：Food & Beverage Factory
• Max.Bottle Height(mm)：350
• Max.Bottle Diameter(mm)：180
• Neck Diameter(mm)：120
• Bottle Volume(Ml)：5000
• Transport Package：Wooden Case
• Specification：Bottle Blowing Machine (1 Cavity)
• Trademark：JS
• Origin：Huangyan, Taizhou, Zhejiang, Pr. China
• HS Code：84773090
• Production Capacity：400PCS,H for 5L Bottle and 700PCS,H for 2L Bottle

Semi Automatic Blow molding Machine (JS5L) can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide (less than 5liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, The machine has no noise It is easy to maintain It's the equipment for producing PET bottles.   JS-5  1 2Bottle Volume 5L 2LTheoretical output 400700 Max.caliber 120mm90mm Max bottle diameter180mm 125mm Max bottle height 350mm 350mm Max.thickness of mould 170-260 170-260 Mould opening stroke230 230 Main frame control box 2.0*0.65*1.8m 2.0*0.65*1.8m Oven1.7*0.6*1.5m 1.7*0.6*1.5m Main machine weight650kg 650kg Oven weight 300kg300kg

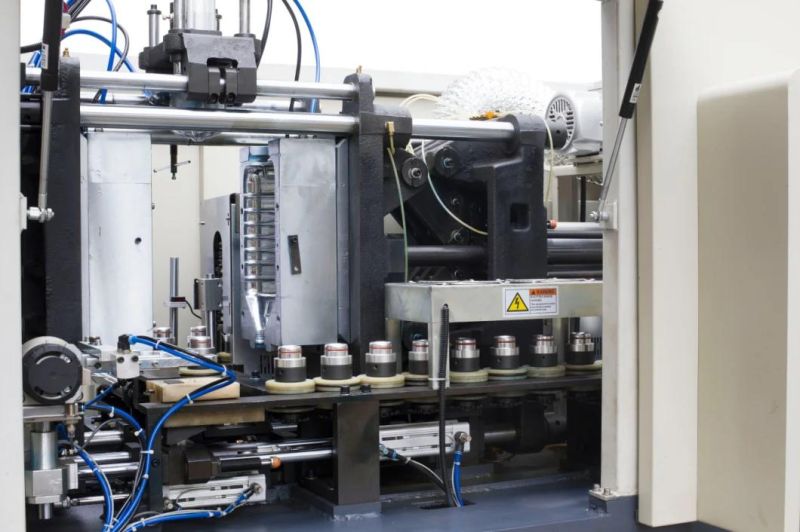

Internal details of the Machine
