• Model NO.：SLZ-120
• Automation：Automatic
• Computerized：Computerized
• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Cooling Way：by Water
• Transport Package：Wooden Packages by Sea
• Specification：8000*1200*1800mm
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：84772010
• Production Capacity：40 Sets,Month

Basic Info.

Model NO. SLZ-120 Automation Automatic Computerized Computerized Customized Customized Certification CE, ISO9001:2008 Condition New Cooling Way by Water Transport Package Wooden Packages by Sea Specification 8000*1200*1800mm Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84772010 Production Capacity 40 Sets/Month

Product Description

SLZ-120 Water-cooling Plastic Granulating Machine
This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same
discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance,
and favorable economic benefit.

Main Parameter:

Model	SLZ-90	SLZ-100	SLZ-110	SLZ-120
screw diameter	90mm	100mm	110mm	120mm
screw L/D	22:1	22:1	22:1	22:1
screw rotation	10-100r/min	10-100r/min	10-100r/min	10-100r/min
main motor	22kw	30kw	37kw	45kw
max extrusion output	68kg/h	95kg/h	120kg/h	138kg/h
Weight of machine	2000kg	2100kg	2200kg	2500kg
Dimension L*W*H	8000*1200*1800mm	8200*1600*1800mm	8500*1600*1800mm	8800*1600*1800mm

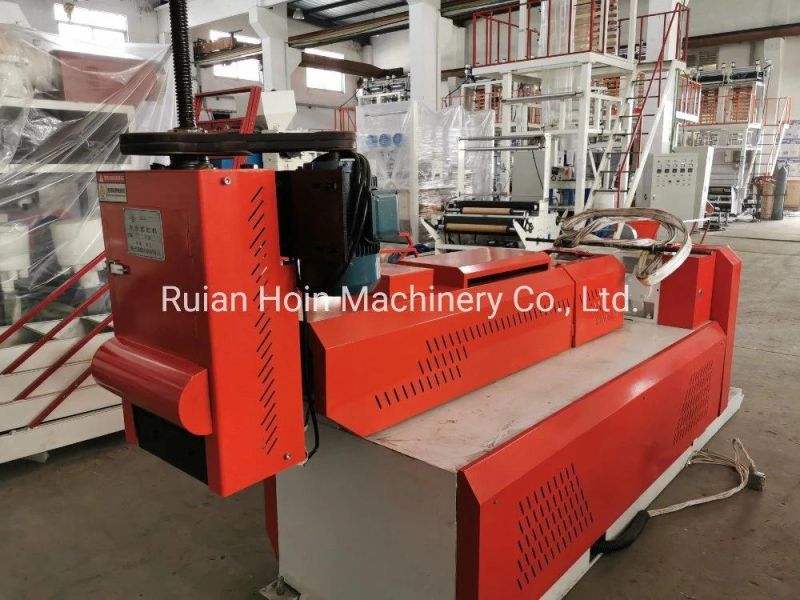

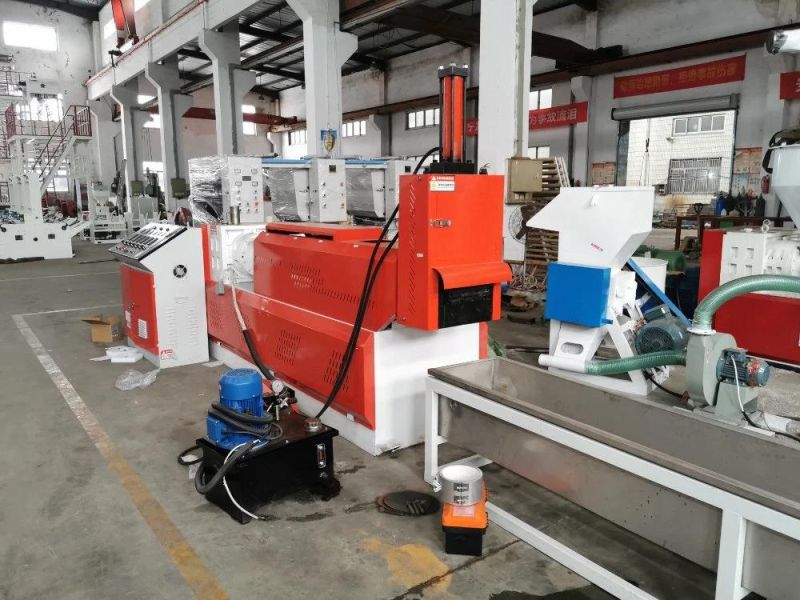

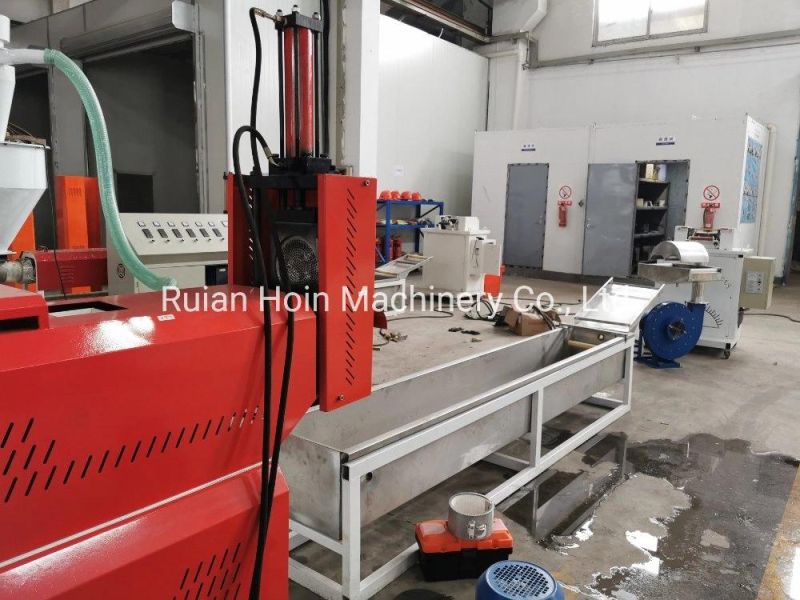

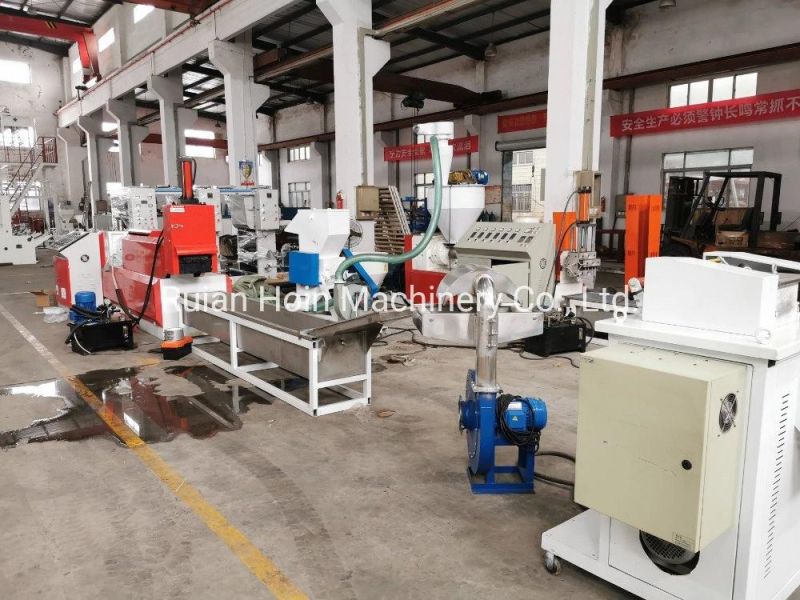

Machine Pictures for Reference:

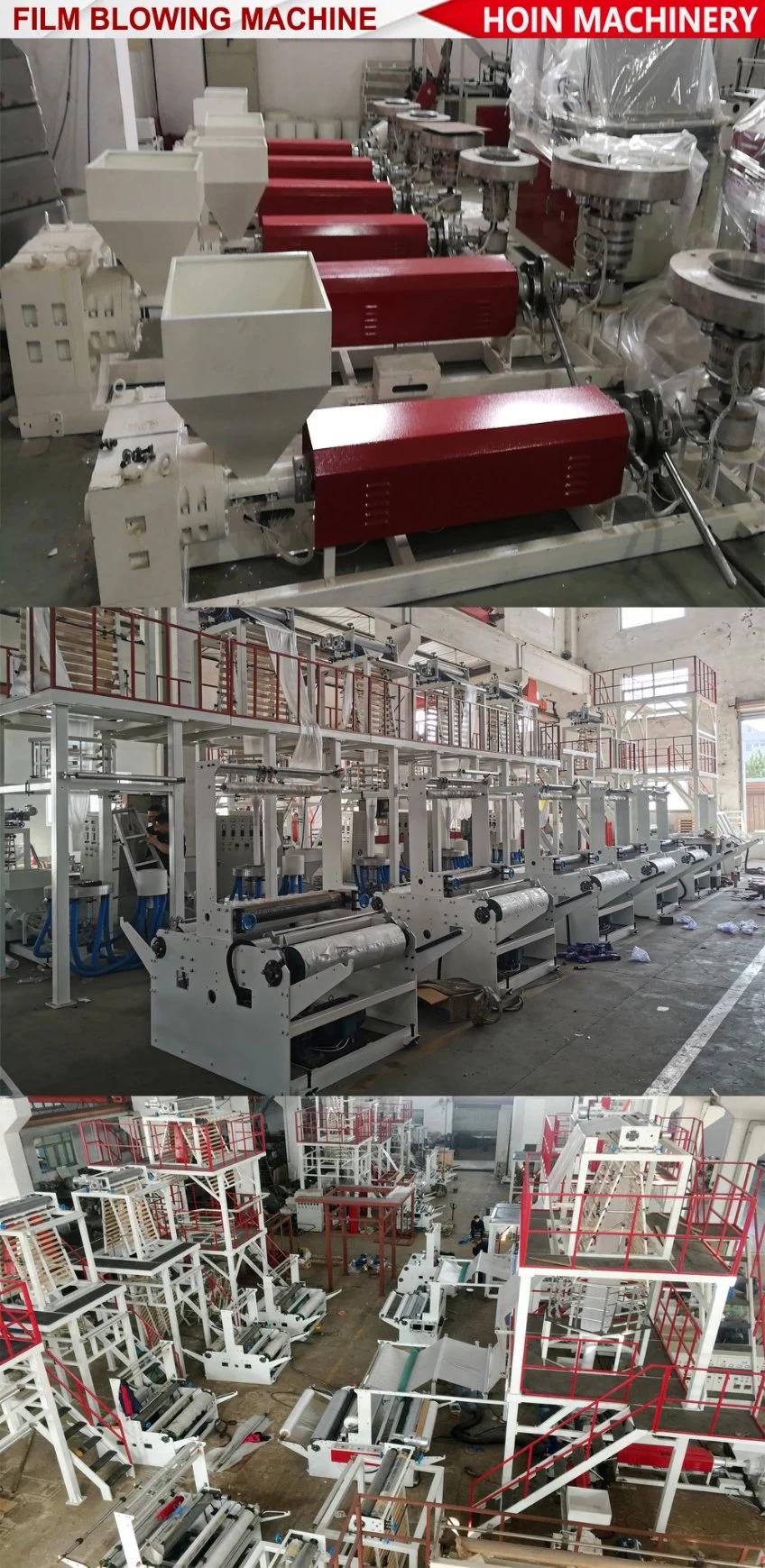

Workshop of HOIN

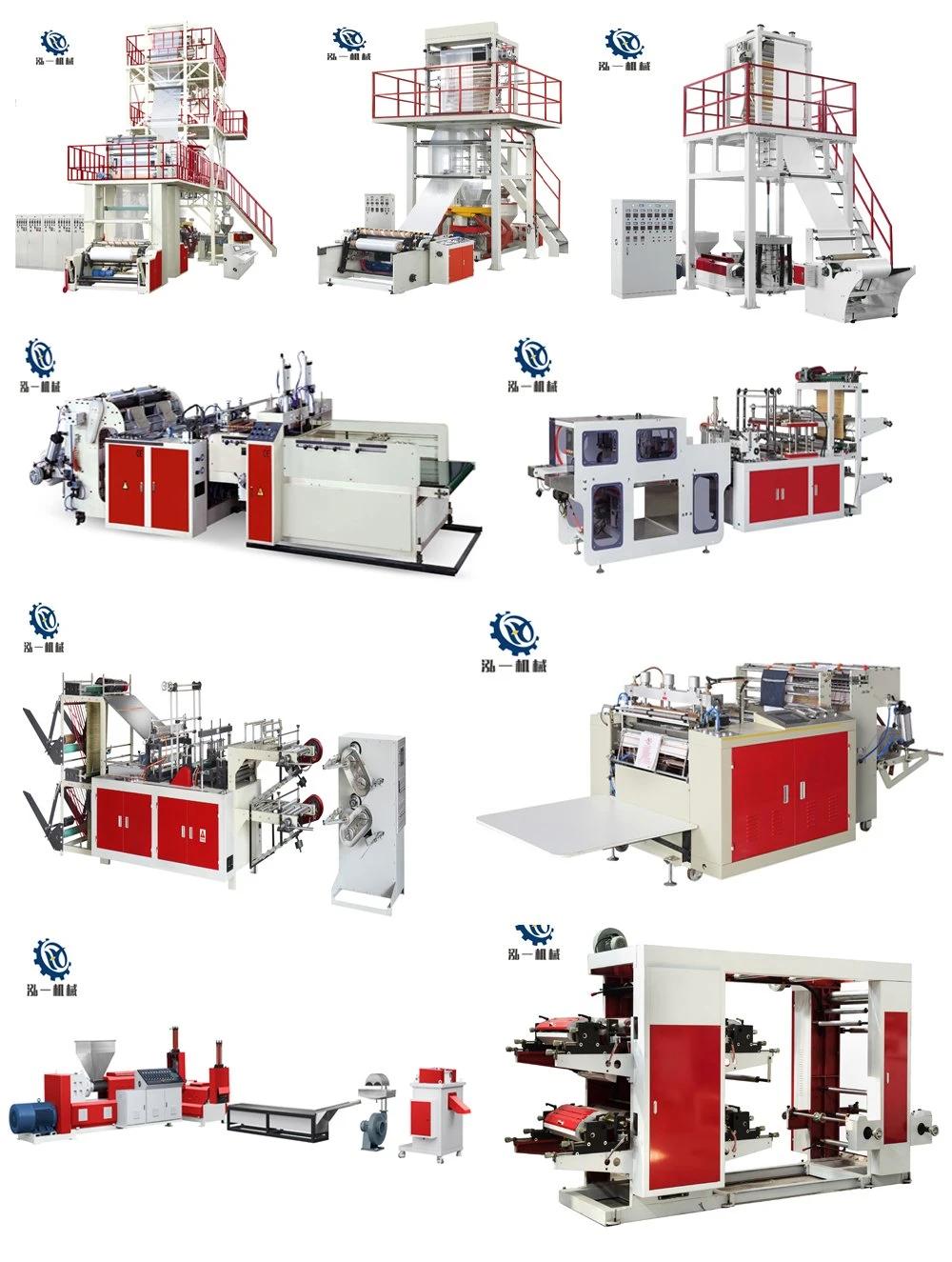

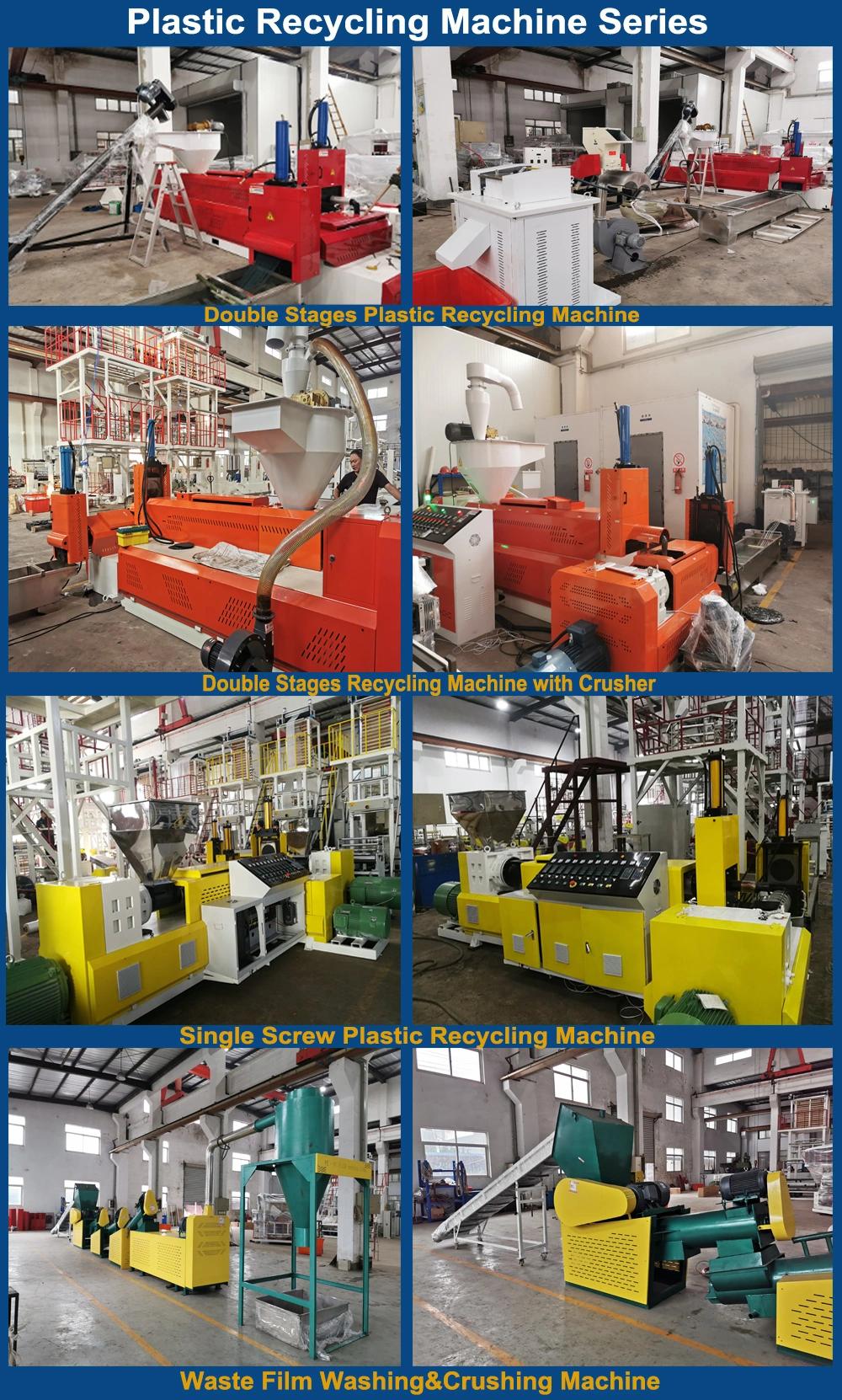

More Products Optional
After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
