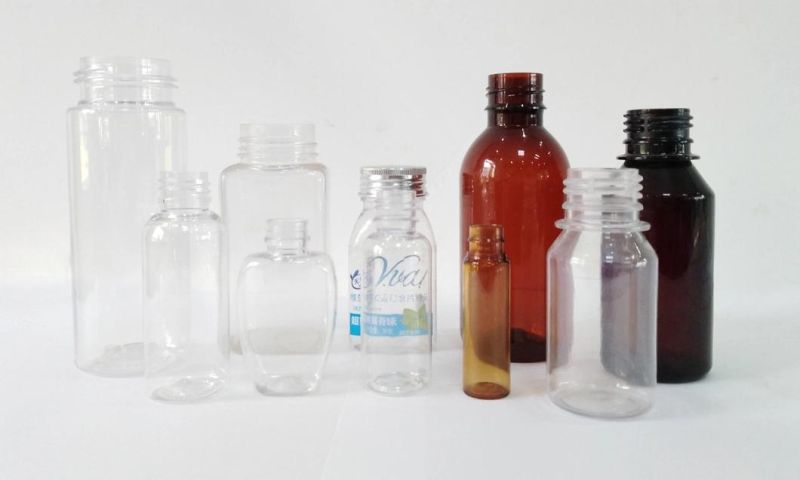

Multi-Cavity Pet Bottle Cough Syrup Brown Bottle Injection Stretch Blow Molding Machine
Zhangjiagang Dawson Machine Co., Ltd.- Type：Pet Injection Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Pet Injection Stretch Blow Molding Machine
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：ISB 1100N-3
- Screw Diameter：50mm
- Screw L/D Ratio：20.5:1 L,D
- Screw Speed：0-190 R,Min
- Theoretical Injection Capacity：238cm3
- Injection Pressure：174MPa
- Max.Hydraulic Pressure：140kg,Cm
- The Actual Injection Quantity：225g(PS),8oz
- Screw Stroke：190mm
- Blow Clamping Force：150kn
- Clamp Tonnage：600kn
- Wheel Diameter：1100mm
- Max. Height：220mm
- Open Vertical Mode Trip：570mm
- Max.Pump Pressure：16MPa
- Servo Motor：22kw
- Transport Package：Film Packing
- Specification：ISB 1100N-3
- Trademark：DAWSON
- Origin：Jiangsu Zhangjiagang
- HS Code：8477301000
- Production Capacity：as Per Samples
Description
No.
Configurations Name
Brand Name
1
Oil Pump and Servo Motor(Double hydraulic system)
Eckerle (Germany) and Inovance
2
Hydraulic Valve
Yuken, TAIWAN
3
Sealing Parts
SealTech, China
4
F.R.L
China
5
Air Valve
AirTAC
6
Air Cylinder
AirTAC
7
Controller (PC)
JASU, Taiwan
8
Servo Motor for Turntable
Inovance,China
9
Gear Reducer
SESAME, Taiwan
10
Low-voltage components
Joint Venture
