• Computerized：Computerized
• Model NO.：CNMC600
• Certification：CE, ISO9001:2008
• Power Source：3-Phase 4-Wires 380V 50Hz
• Heating Power：1.5kw
• Driven Mode：Pneumatic
• Heating Hose：8 Meters
• Spray Gun：1 Set
• Rotation Speed：500,Min
• Machine Weight：150kg

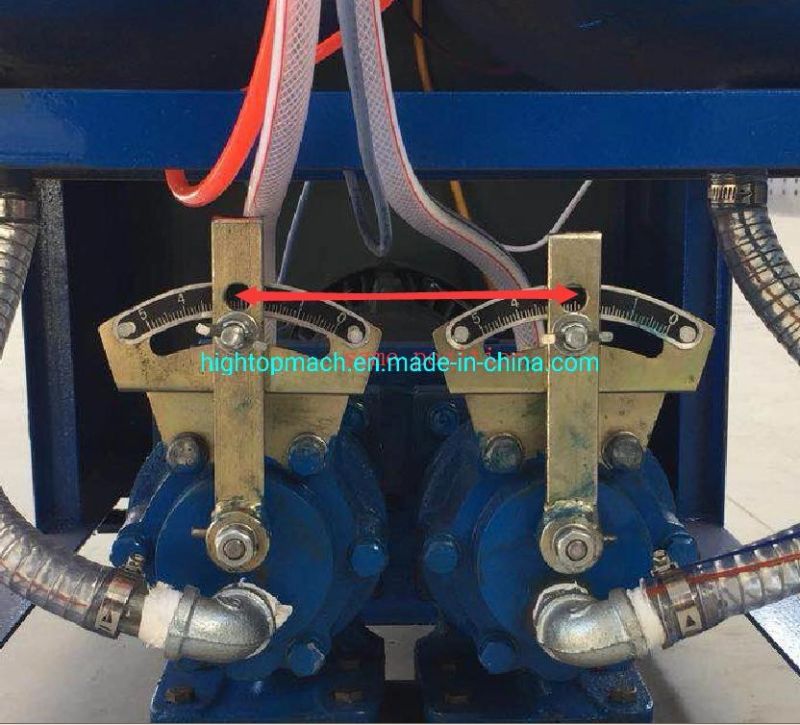

• Metering Pump Model：Hj9-100
• Transport Package：Wooden Box
• Specification：750mm*500mm*800mm
• Trademark：Hightop
• Origin：China
• Production Capacity：10000sets
• Package size per unit product：100.00cm * 100.00cm * 100.00cm
• Gross weight per unit product：250.000kg

Basic Info.

Model NO. CNMC600 Computerized Computerized Certification CE, ISO9001:2008 Power Source 3-Phase 4-Wires 380V 50Hz Heating Power 1.5kw Driven Mode Pneumatic Heating Hose 8 Meters Spray Gun 1 Set Rotation Speed 500/Min Machine Weight 150kg Metering Pump Model Hj9-100 Transport Package Wooden Box Specification 750mm*500mm*800mm Trademark Hightop Origin China Production Capacity 10000sets

Packaging & Delivery

Package size per unit product 100.00cm * 100.00cm * 100.00cm Gross weight per unit product 250.000kg

Product Description

The following precautions measures is highly required while using polyurethane spray equipment:
Protective mask required
Splash-proof goggles required
Chemical Protective Clothing
Protection Gloves required
Protective footwear required

Equipment applications:
1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.
2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators,  pipes, road construction, packaging, road construction, wall insulation, etc.



Technical Parameters:
Power source: 3-phase 4-wires 380V 50Hz/220v -single phase 50HZ
Heating power: 1.5KW
Driven mode: pneumatic
Air source: 0.5~0.8 MPa ≥0.9m3/min
Raw output: 0.5-9 kg/min
AB material output ratio: 1:3~3:1
