• Model NO.：SJ120,33
• Customized：Customized
• Condition：New
• Mould for Sheet/Board：T Type
• Button：Schneider
• Inverter：ABB
• Control System：PLC Control System
• Warranty：12monthes
• After Sale Service：Life Long with Professional After Sale Team
• Machine Color：as Request
• Contactor：Siemens
• Raw Material：PP Granule
• Operator：2-4 Per Line
• Transport Package：Export Package
• Specification：ISO9001 CE
• Trademark：suke
• Origin：Qingdao China
• HS Code：84775900
• Production Capacity：25sets,Year

Basic Info.

Model NO. SJ120/33 Customized Customized Condition New Mould for Sheet/Board T Type Button Schneider Inverter ABB Control System PLC Control System Warranty 12monthes After Sale Service Life Long with Professional After Sale Team Machine Color as Request Contactor Siemens Raw Material PP Granule Operator 2-4 Per Line Transport Package Export Package Specification ISO9001 CE Trademark suke Origin Qingdao China HS Code 84775900 Production Capacity 25sets/Year

Product Description

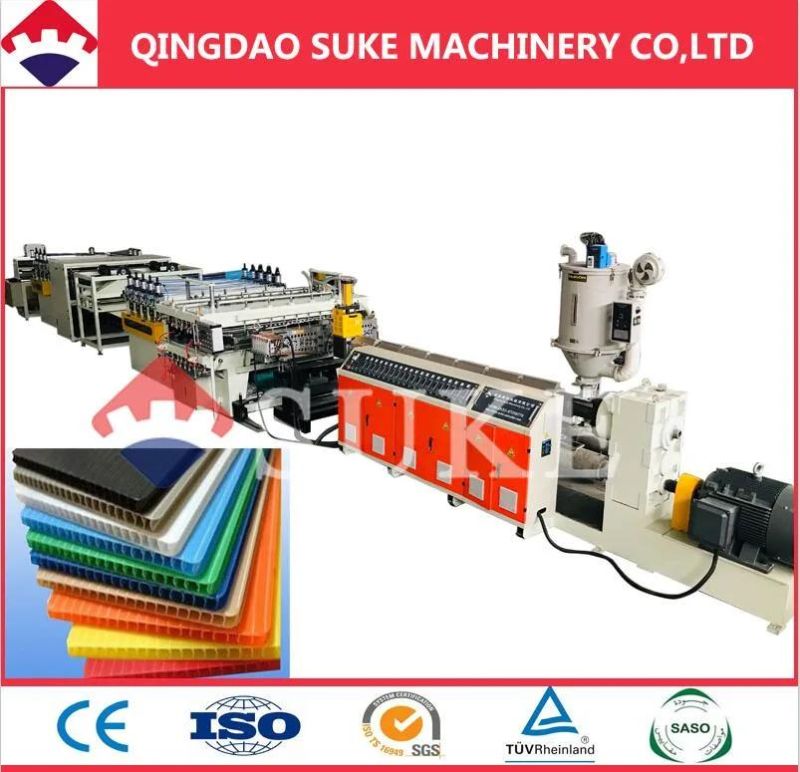

PC PP Hollow Sheet Extrusion Line Machine


Specifications
New PP/PC hollow sheet extrusion line
1. High output
2. Product width: 1300-2100mm
3. Low power consumption
4. CE & ISO9001

Equipment List:

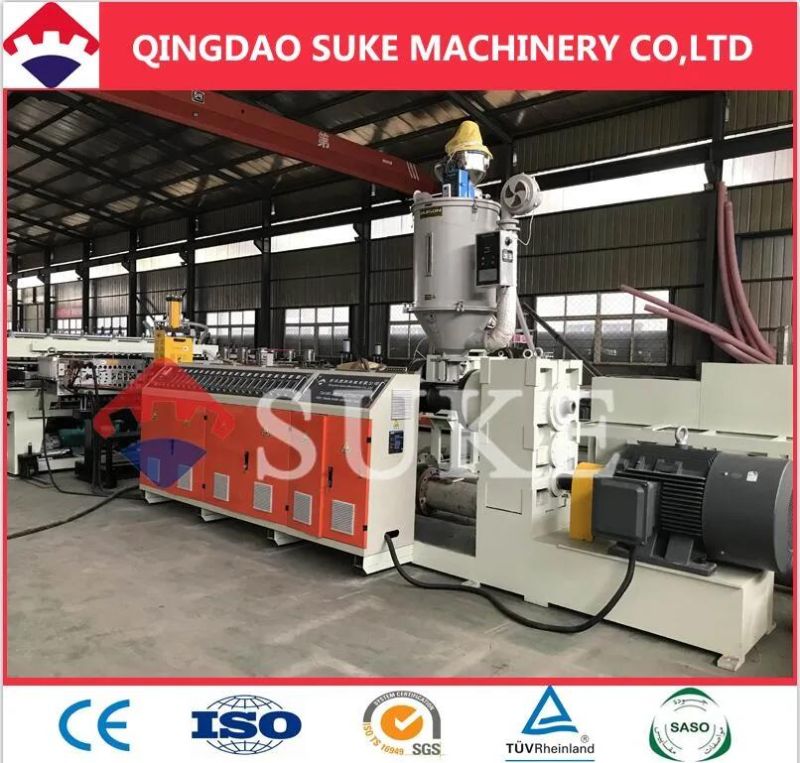

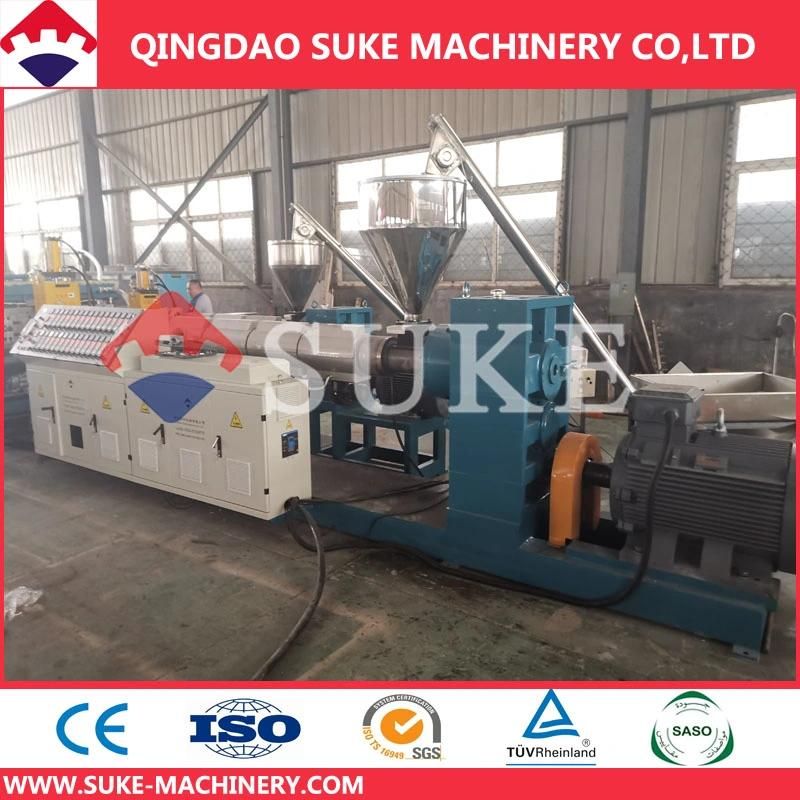

1. Single Screw Extruder(SJ120x35)
2. Hydraulic screen exchanger, Gear pump
3. T-die
4. Air knife

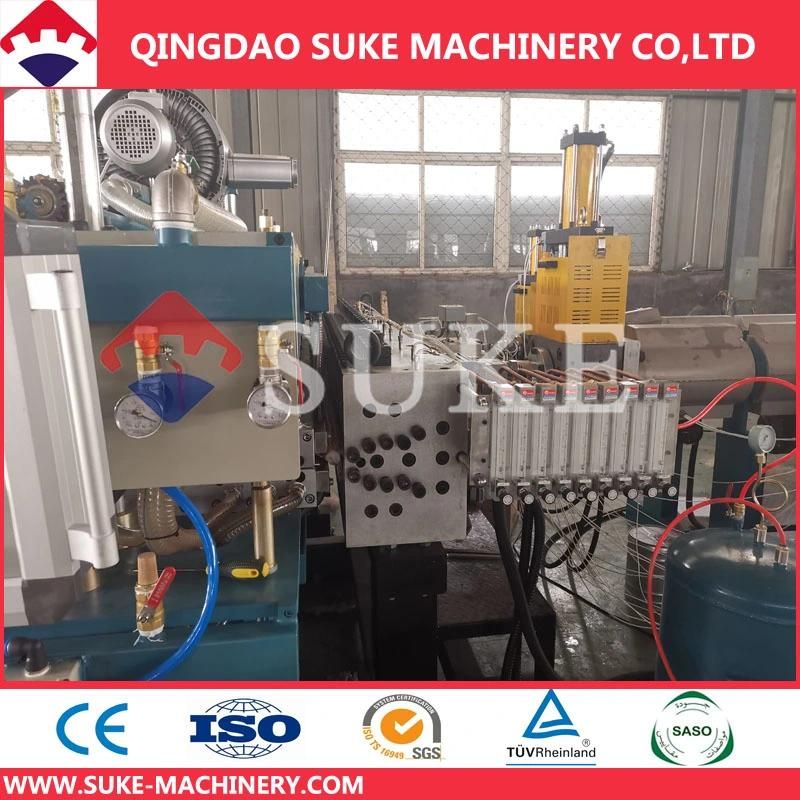

5. calibration unit
6. the first haul-off unit

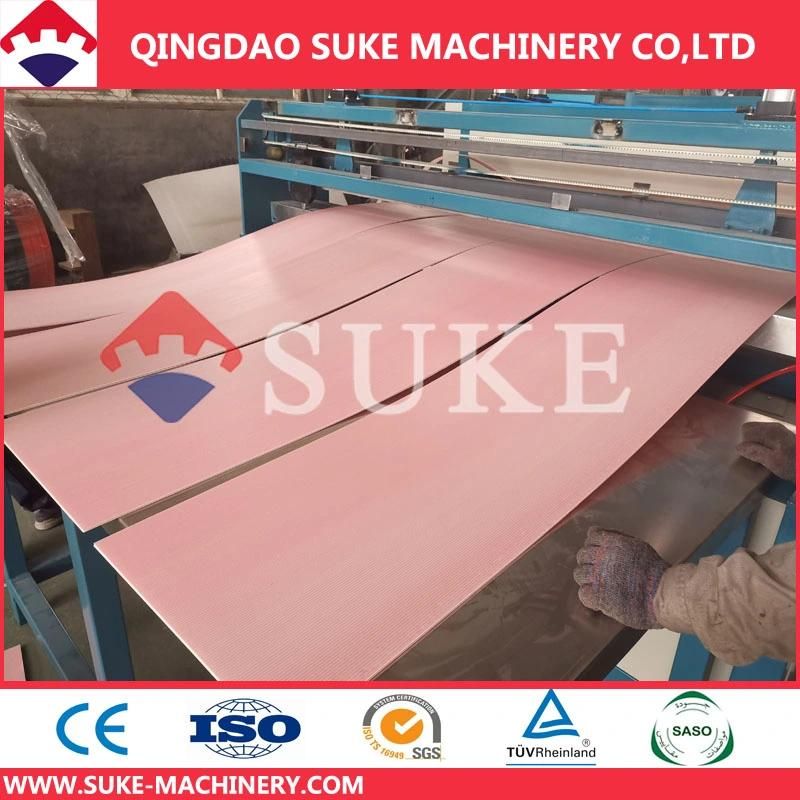

7. Side trimming machine
8. anneal oven
9. cooling system by air
10. Second haul-off unit
11. transverse cutter
12. transmission unit


Features of PP hollow sheet extrusion line
1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled.
2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; Output capacity is 25% higher than other brand extrusion lines. Because of special design of forming plates.
3. Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate.
4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.
5. The softness of pull rolls could be customized on request to extend its stretch.
6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines.

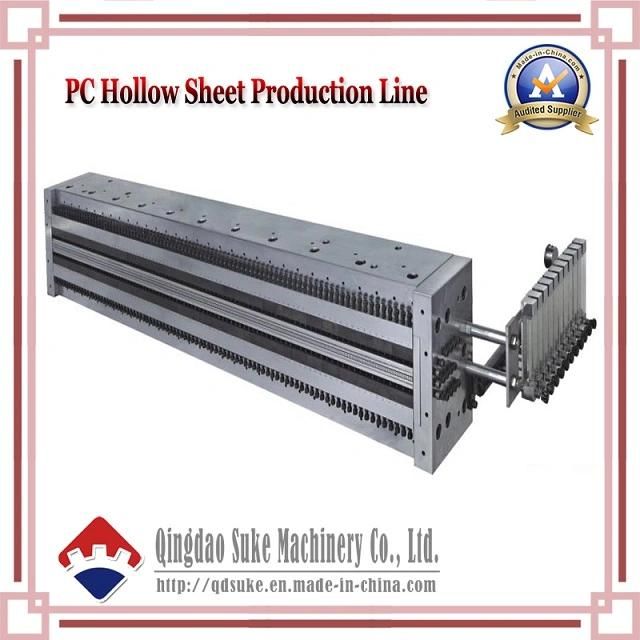

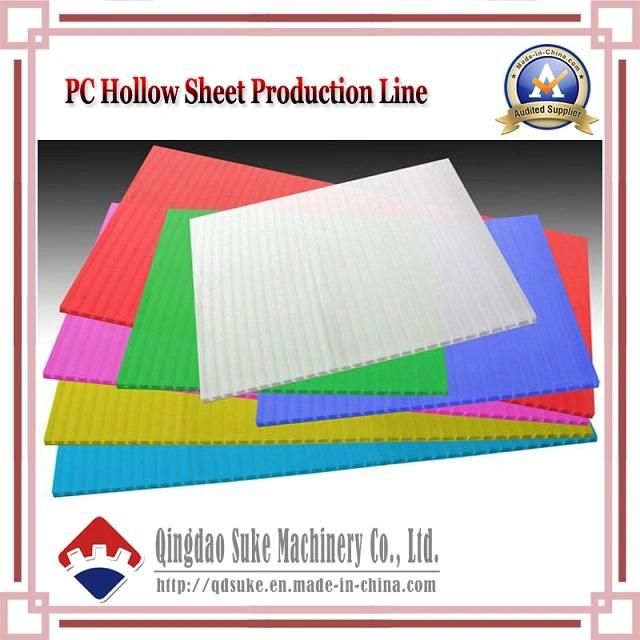

7. Unique T-Die is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape.
8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement.
High percentage of recycled flakes could be mixed with the virgin materials.

Extruder model	Φ100	Φ120
Product width	1300mm	2100mm
Product thickness	2-10mm	2-10mm
Motor power	110kw	132kw
Papacity	250-300kg/h	400-450kg/h
