• Model NO.：Multiple models
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, SGS,BV
• Size：2700X2300X2150
• Transport Package：Wooden Package,Film Package,Steel Frames Package,C
• Specification：CE,ISO9001,SGS
• Trademark：SOYU
• Origin：Suzhou
• HS Code：84778000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. Multiple models Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV Size 2700X2300X2150 Transport Package Wooden Package/Film Package/Steel Frames Package/C Specification CE/ISO9001/SGS Trademark SOYU Origin Suzhou HS Code 84778000 Production Capacity 1000sets/Year

Product Description

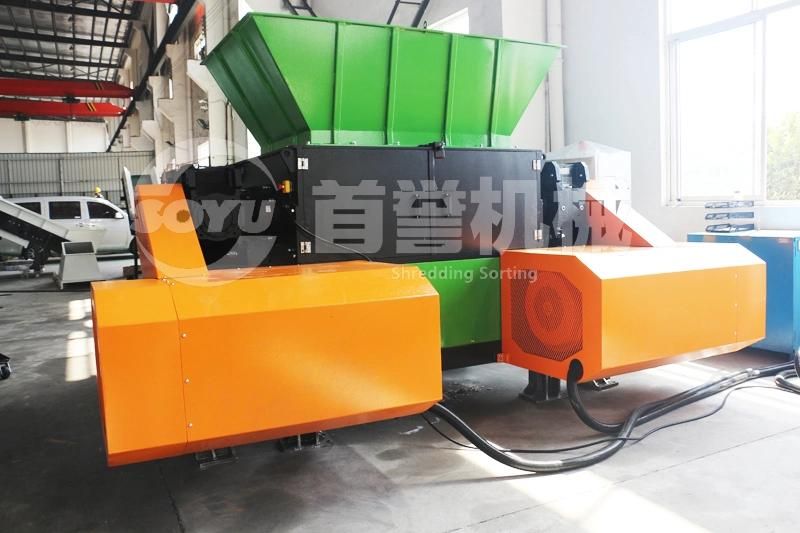

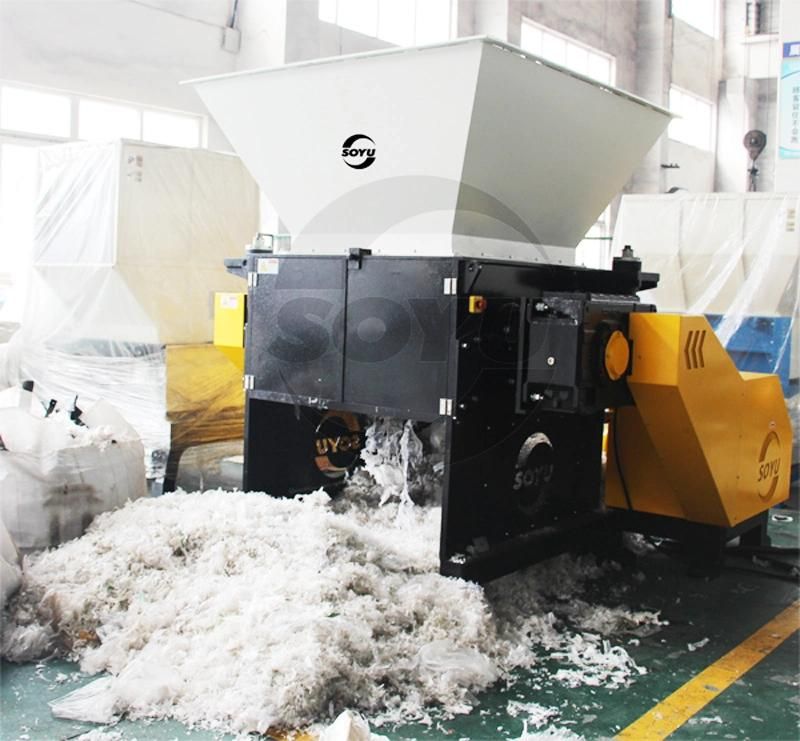

PP PE Film Shredder/Plastic Film Crusher/Waste Film Shredder/Film Shredder
This machine specifically for PP / PE waste film, woven bags, big woven bags, paper design, production models according to the size, reach 500-6000KG per hour, the expected size of about 40-100MM.

Features:
Large feed opening, easy to feed;
Automatic continuous crushing, high yield;

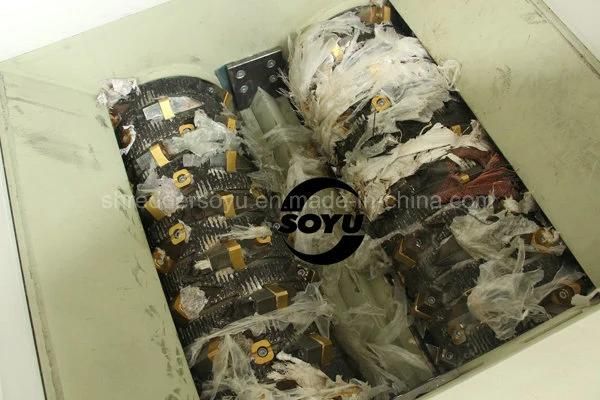

Knife roller surface using surface hardening treatment can prolong life;
Standardized blade design, blade replacement fast, convenient and reduce the cost;
  Standardized screen design, size optional, easy to replace.











Model	SR600	SR750	SR900	SR1100
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	500	820	820	820
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400
Number of rotor blades(pcs)	23	44	52	66
Number of fixed blades(pcs)	4	6	6	8
Discharge height(mm)	500	610	610	610
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	18.5	37	45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber dimensions(mm)	540x600	830x708	830x840	830x1071
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2650x2115
Weight(kg)	Approx 1600	Approx 4460	Approx 4560	Approx 5464

Model	SR1400	SR1600	SR2100	SR2500
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	820	1000	1000	1200
Rotor diameter(mm)	Φ400	Φ480	Φ480	Φ660
Number of rotor blades(pcs)	80	94	122	150
Number of fixed blades(pcs)	10	12	16	20
Discharge height(mm)	610	950	950	950
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	75~90	2x55~2x75	2x75~2x90	2x90~2x110
Hydraulic power(kw)	5.5	7.5	7.5	11
Cutting chamber dimensions(mm)	830x1302	1000x1533	1000x1995	1200x2457
Overall dimensions(LxWxH)(mm)	2810x2890x2115	3475x4100x2700	3475x4900x2700	3475x5400x2700
Weight(kg)	Approx 6200	Approx 10800	Approx 13000	Approx 16000
