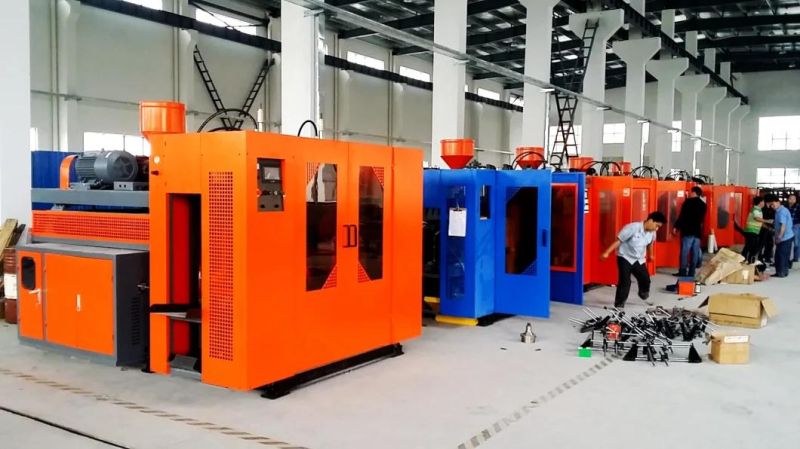

Automatic High Quality Household Bottles Blow Molding Machine

Zhangjiagang Dawson Machine Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE

Base Info

  • Model NO.：DSB65
  • Application：Bottles, Jars, Jerry Cans, Gallons, Containers
  • Station：Single Station or Double Station
  • Die Head：Single Head or Double Head
  • Max. Product Volume：5L
  • Auto-Deflashing：with Auto-Deflashing
  • Clamping System：Toggle Type Clamping System
  • Mould：One Cavity or Two Cavity
  • Suitable Material：HDPE,PP,PVC,PS,PETG,LDPE
  • Sutiable：0~5L Bottle
  • Made in：China
  • Plasticization：100kg,H
  • Heating Power：4kw,H
  • Weight：4.8t
  • Cooling Fan：3-4zone
  • Water Flow：80L,Min
  • Transport Package：Film Packing
  • Specification：DSB75II
  • Trademark：Dawson
  • Origin：Zhangjiagang, Jiangsu, China
  • HS Code：8477301000
  • Production Capacity：up to Product

Description

SPECIFICATIONSUNITSDSB65/75 SERIERSMax container capacityL5Number of die headsSet1Dry cycle timeSecond5Machine dimension (L*W*H)M3 *1.9 *2.4Total weightTon3.5CLAMPING UNITClamping forceKN68Platen opening strokemm200-500Platen sizemm360*390Max mould size (W*H)mm390*390Mould thicknessmm210-300Platen moving distanceMm440POWERExtrusion motor powerKW15Oil pump motor powerKW5.5Extrusion heating powerKW12Head heating powerKW5.7Cooling Fan powerKW0.42Total powerKW 38.62Average power consumptionKW 21EXTRDER UNITScrew diameter mm65/75Screw L/D ratioL/D24Plasticizing capacityKg/hour75~80Number of heating zoneZone3Extruder heating powerKW12Extruder driving powerKW15Cooling Fan No 3Fan powerKW0.42DIE HEADHead typeContinuous extrusion headHead No1 234Central distance / mm-160 11085Max die diameter / mm150805030Heating zong No2345Heating power5.74.85.26.5
