Handheld Plastic Welding Extruder Extrusion Gun for HDPE PP PVDF/Hand Extruder/Plastic ...
QINGDAO SUDA PLASTIC PIPE MACHINERY CO., LTD.- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
Base Info
- Model NO.：SDJ3400
- Feeding Mode：Multiple Feed
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Name：Hand Held Plastic Extruder
- Frequency：50,60Hz
- Voltage：220V
- Welding Speed：2-2.5kg,H
- Weight：8kg
- Metabo Extruding Power：1100W
- Hot Air Power：1600W
- Welding Rod Heating Power：800W
- Application：PP PE
- Transport Package：Standard Export Wooden Box
- Specification：ISO, CE, SGS
- Trademark：SUDA
- Origin：China(Mainland)
- HS Code：8515290000
- Production Capacity：1000sets,Months
- Package size per unit product：58.00cm * 18.00cm * 47.50cm
- Gross weight per unit product：13.000kg
Description
Basic Info.
Model NO. SDJ3400 Feeding Mode Multiple Feed Assembly Structure Separate Type Extruder Screw Single-Screw Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Non-Automatic Computerized Non-Computerized Name Hand Held Plastic Extruder Frequency 50/60Hz Voltage 220V Welding Speed 2-2.5kg/H Weight 8kg Metabo Extruding Power 1100W Hot Air Power 1600W Welding Rod Heating Power 800W Application PP PE Transport Package Standard Export Wooden Box Specification ISO, CE, SGS Trademark SUDA Origin China(Mainland) HS Code 8515290000 Production Capacity 1000sets/MonthsPackaging & Delivery
Package size per unit product 58.00cm * 18.00cm * 47.50cm Gross weight per unit product 13.000kgProduct Description

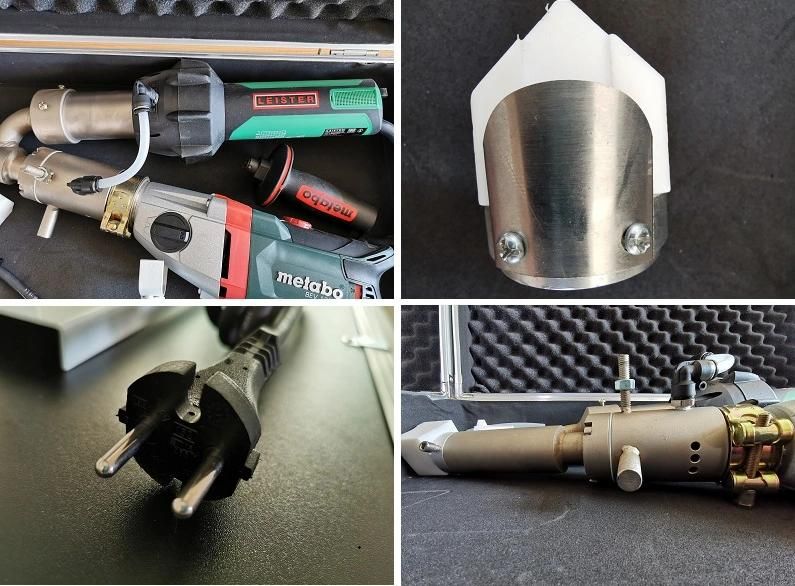

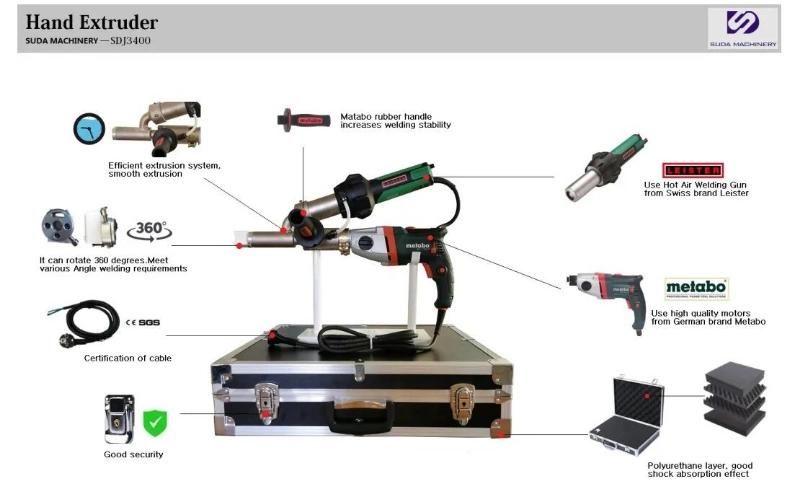

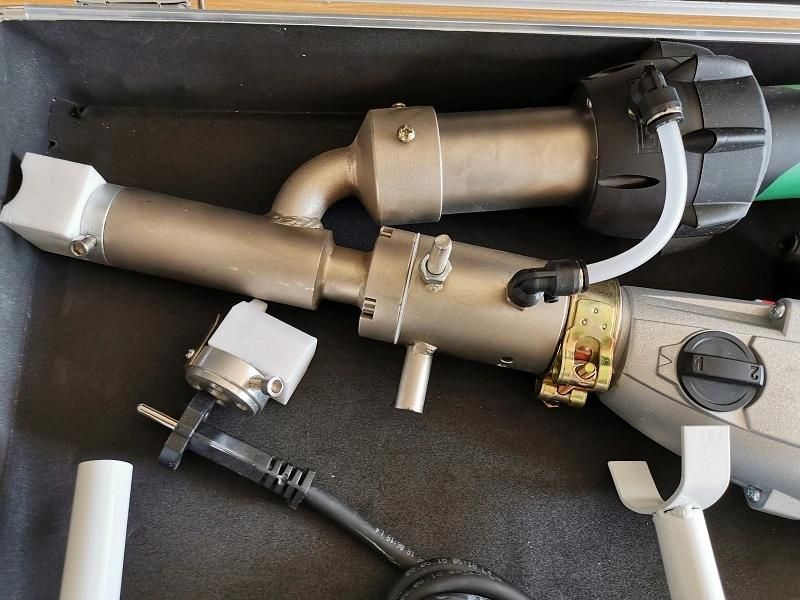

Handheld Plastic Welding Extruder Extrusion Gun for HDPE PP PVDF/Hand Extruder
1. Preheating wind and screw extruder Integrated Design
2. With small size, light weight, easy to carry
3. Welding high strength, good sealing effect, the weld width, the quantity, speed, a welding molding
4. Own wind source, particularly suitable for field-site construction work
| Model | SDJ3400 |
| Voltage | 220V |
| Extruder power | 1100W |
| Thermal Power Machine | 3400W |
| Welding speed | 3.0kg/0.4mm |
| Electrode size | Ø3.0-4.0mm |
| Net Weight | 7kg |
Packing
Exhibition
