• Model NO.：SPS-32
• Condition：New
• Diameter：16-32mm
• Color：Customized
• Guarantee Period：1 Year
• Manufacturing Time：20 Days
• Discharge Control：by Cylinder
• Speed：0-40m,Min
• Delivery：by Shipment
• Pack：by Film and Wooden Box
• Electrical Parts：Siemens, ABB, Schneider
• Coiler：One and Double
• Transport Package：Plastic Film,Wooden Box
• Specification：new
• Trademark：Yusheng
• Origin：Zhangjiagang City (Near Shanghai), China
• HS Code：84778000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. SPS-32 Condition New Diameter 16-32mm Color Customized Guarantee Period 1 Year Manufacturing Time 20 Days Discharge Control by Cylinder Speed 0-40m/Min Delivery by Shipment Pack by Film and Wooden Box Electrical Parts Siemens, ABB, Schneider Coiler One and Double Transport Package Plastic Film/Wooden Box Specification new Trademark Yusheng Origin Zhangjiagang City (Near Shanghai), China HS Code 84778000 Production Capacity 30 Sets Per Month

Product Description

Brief introduction:

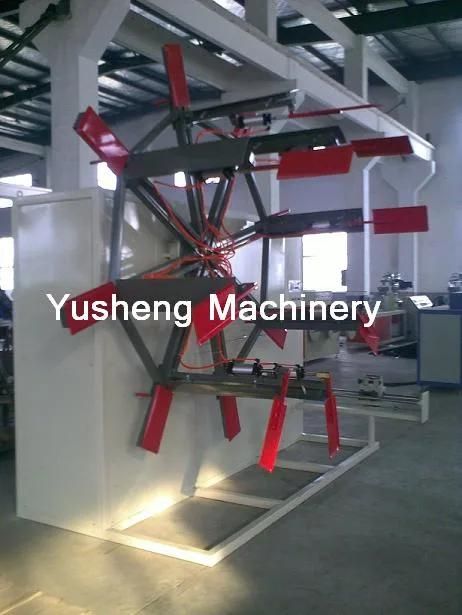

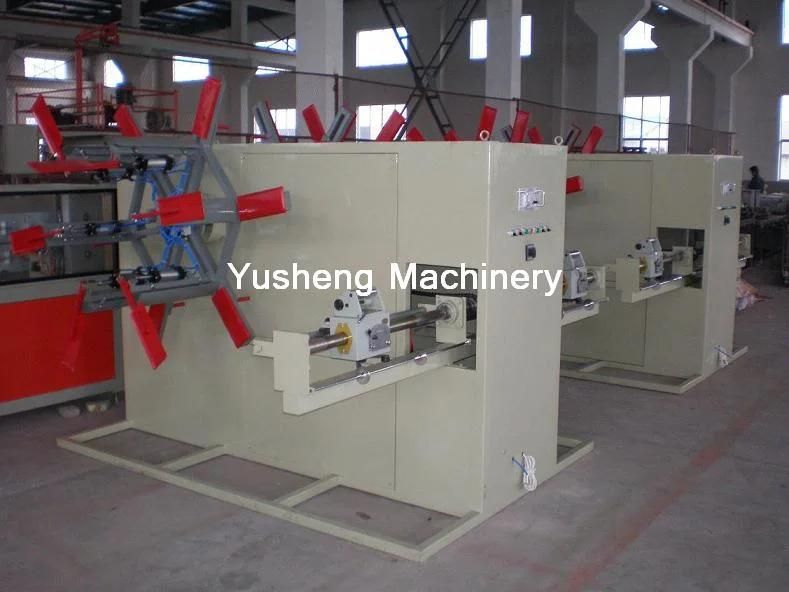

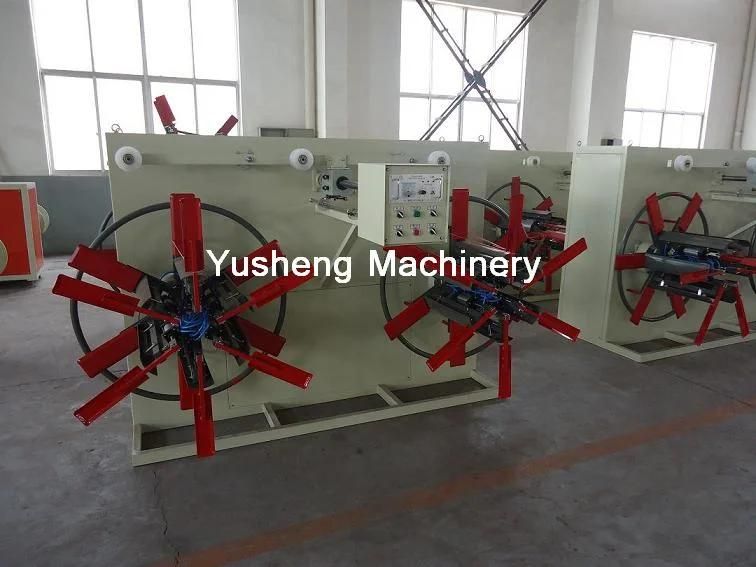

The Winder is mainly used to tolling and packing of the PE tubes, aluminum-plastic composite tube, cross-linked pipe, corrugated pipe, PVC, PU, PPR pipe and small hose pipe etc. Mainly used together with the factory production of pipe production line. Generally the machine is installed in the production line of tractor working procedure, after the forming tube drawing, directly winding and packaging, to avoid the inconvenience caused by no winding coil.



The winder adopts international advanced pneumatic principle of open and fold, the motor adopts torque motor, can guarantee the winding tension constant, winding speed is constant in the process. This machine is with a compact structure, high automation degree, beautiful appearance, convenient operation, absolutely satisfy the customers. And it's also a kind of ideal equipment at the present, both in domestic and international plastics machinery industry, especially in the production of pipe enterprise.

Model	1200 twin-plate pipe	1600 twin-plate pipe	3000 single-plate pipe
Inner diameter	500-1000mm	550-1000mm	1000-3000mm
Winding speed	0.5-30m/min	0.5-30m/min	0.5-15m/min
Winding width	300-500mm	300-500mm	200-500mm
Winding pipe spec	16-32mm	16-63mm	63-110mm
Air pressure	0.6mpa	0.6mpa	0.6mpa
Moment motor power	10N. M	10N. M& 16N. M	30N. M
Dimension	2700× 1700× 1800	3000× 2800× 2000	3500× 2000× 3500
Weight	1000kg	1500kg	3000kg
