Jwell PP PE Foaming Plastic Sheet Borad Profile for Garden Chair Extrusion
ZHEJIANG JWELL PIPE EQUIPMENT CO., LTD.- Type：Profile Extruder
- Plastic Processed：PVC
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：Multiple Feed
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：JWS75,33
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Wheight：5500kg
- Motor Power：37kw; 55kw; 110kw
- Warnntty：1 Year
- Transport Package：Wood-Packed
- Trademark：Jwell
- Origin：China
- HS Code：84778000
- Production Capacity：150kg,H-350kg,H
Description
Single screwConical twin screw Parallel twin screw Type JWS65/28 JWS90/28 JWS120/28 SJZ65/132 SJZ80/156 SJZ92/188 JWE75/44 JWE92/44 Power (kw) 30 55 90 37 55 110 75 132 Max.output (kg/h) 50-60 80-100 150-200 120 280 500 300 500 Center height(mm) 1050 1050 1050 1050 1050 1100 1050 1050 Weight(kg) 1200 2000 3000 4000 5500 8000 5000 8800

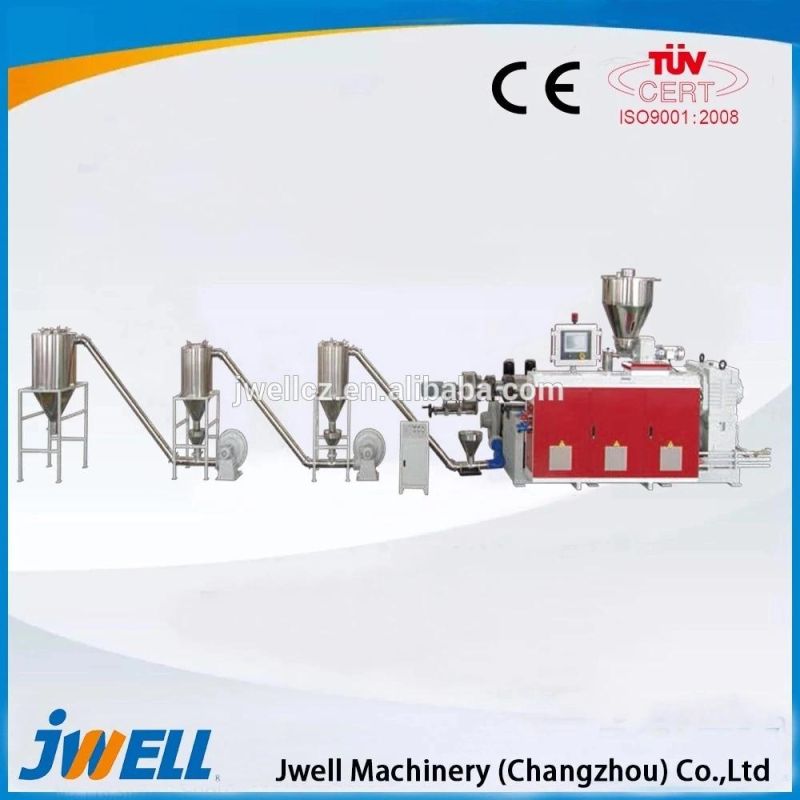

SJZ Series Counter Rotation Conical Twin-screw Pelletizing Extruder
This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw material with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegance. The palletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This palletizing downstream equipment has the features of high automation and high production efficiency.

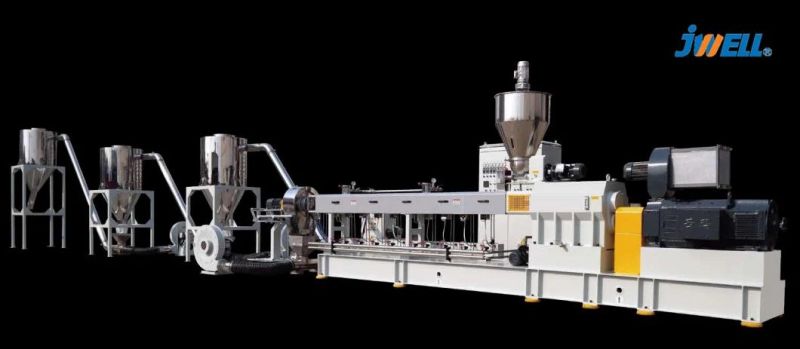

JWE Series Co-rotation Parallel Twin-screw Pelletizing Extruder
1. Building block type screw and barrel of the extruder, according to the L/D by yourself. It's fit for all kinds of the material machining for the surface wearable. The temperature of barrel can enactment by oneself each zone.
2. The method of the head cutting is heating cut commonly
3. The method of cooling remove the material is two class or three class fan remove commonly

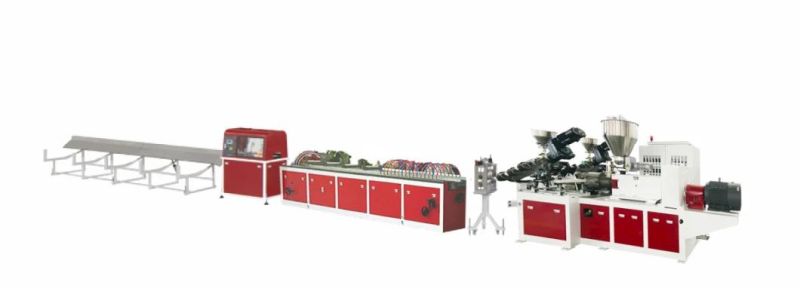

SJZ Series Coniacl Twin Screw Floor/ Panel/ Board Extrusion Line
It adopts special designed screw & barrel, mould and extruder for wood plastic productions. Jwell company products
series:One step way thickness board extrusion line; One step way WPC profile extrusion line; WPC pelletizing extrusion line
and different kinds of WPC mould.
The WPC products can be produced by two step extrusion machine or pelletize first then through extrison machine. It will
save power and place and has some features of high output, stable extrusion pressure, high plasticity and good mixing.
Optimized screw design have small cutting strength, and it is not easy to cut wood fibre. The material will be uniformally in
the extruder.
This extrusion line can produce PE,PP or PVC WPC profile productions. Main is used in wood tray, indoors&outdoors floor,
outside decoration and etc.
Excellent character for WPC material
1. Excellent water resistance, the bending strength and stiffness will not change after immersing in water for 30days.
2. Excellent antisepsis; as non-absorbent, it will not rot and has a very good quality of corrosion resistance, neither does it has termites harmless.
3. Truly green & environment-friendly, no release of formaldehyde and can be recycled. It can save the nature wood resources which was also called revolutionary green environmental newly material.
4. Anti-crash. The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF(medium density fiberboard).
5. It can be used as an outdoor sheet for long time because of its well anti-ultraviolet function and good capability even in the temperature of minus 30 degree.
6. Although using thermoplastic composite material, it wouldn't be soften even in an temperature of 120degree.
For many natural plant fibers such as wood, bamboo, crop stalks, etc, which can be used to squeeze the raw materials quality, must be a process crushing, milling, screening, drying, with mixed, and other pre-treatment process to improve the defects and deficiencies of single material in the course of the extrusion. The fiber should be of appropriate particle size in the process, and then join them with coloring agent, lubricants, coupling agent or foam, and other additives of appropriate amount, put them in a high-speed mixed units that they can be fully mixed and then do further precipitation, to meet the requirements suitable for extrusion.
Ultraviolet accelerated aging test machine
Melt flow indexer
Jwell Culture:
Our Service
Pelletizing Equipment
SJZ Series Counter Rotation Conical Twin-screw Pelletizing Extruder
This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw material with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegance. The palletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This palletizing downstream equipment has the features of high automation and high production efficiency.
JWE Series Co-rotation Parallel Twin-screw Pelletizing Extruder
1. Building block type screw and barrel of the extruder, according to the L/D by yourself. It's fit for all kinds of the material machining for the surface wearable. The temperature of barrel can enactment by oneself each zone.
2. The method of the head cutting is heating cut commonly
3. The method of cooling remove the material is two class or three class fan remove commonly
SJZ Series Coniacl Twin Screw Floor/ Panel/ Board Extrusion Line
It adopts special designed screw & barrel, mould and extruder for wood plastic productions. Jwell company products
series:One step way thickness board extrusion line; One step way WPC profile extrusion line; WPC pelletizing extrusion line
and different kinds of WPC mould.
The WPC products can be produced by two step extrusion machine or pelletize first then through extrison machine. It will
save power and place and has some features of high output, stable extrusion pressure, high plasticity and good mixing.
Optimized screw design have small cutting strength, and it is not easy to cut wood fibre. The material will be uniformally in
the extruder.
This extrusion line can produce PE,PP or PVC WPC profile productions. Main is used in wood tray, indoors&outdoors floor,
outside decoration and etc.
Excellent character for WPC material
1. Excellent water resistance, the bending strength and stiffness will not change after immersing in water for 30days.
2. Excellent antisepsis; as non-absorbent, it will not rot and has a very good quality of corrosion resistance, neither does it has termites harmless.
3. Truly green & environment-friendly, no release of formaldehyde and can be recycled. It can save the nature wood resources which was also called revolutionary green environmental newly material.
4. Anti-crash. The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF(medium density fiberboard).
5. It can be used as an outdoor sheet for long time because of its well anti-ultraviolet function and good capability even in the temperature of minus 30 degree.
6. Although using thermoplastic composite material, it wouldn't be soften even in an temperature of 120degree.
For many natural plant fibers such as wood, bamboo, crop stalks, etc, which can be used to squeeze the raw materials quality, must be a process crushing, milling, screening, drying, with mixed, and other pre-treatment process to improve the defects and deficiencies of single material in the course of the extrusion. The fiber should be of appropriate particle size in the process, and then join them with coloring agent, lubricants, coupling agent or foam, and other additives of appropriate amount, put them in a high-speed mixed units that they can be fully mixed and then do further precipitation, to meet the requirements suitable for extrusion.

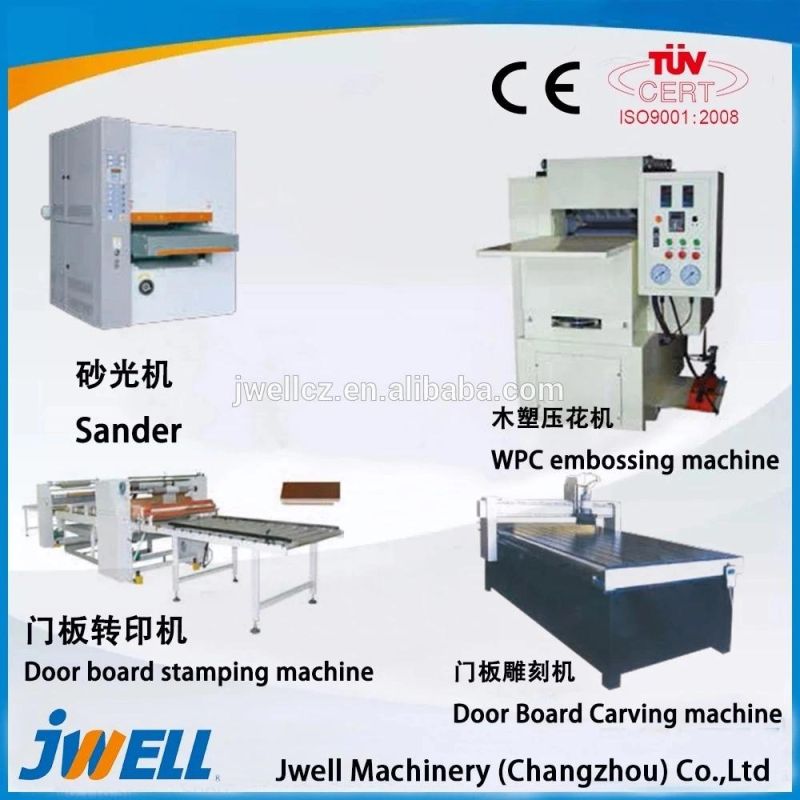

Testing Equipment for WPC Products
Sander
This machine suits for the thickness sanding, fine sanding and polish the
surface of other various boards.
Carving machine for door
This machine is mainly used for pattern carving of wood-plastic board,
hard wood board, density board and cabinet board. It uses three spindles
as landscape orientation, lengthways and up and down.
Transfer printing machine for door
The machine is used for surface design transferring of wood-plastic door,wood-plastic cabinet door board, PVC door and wall board. Using high temperature transferring, this machine can automatically remove dust and have board pre-heating device.
WPC embossing machine
The wood-plastic embossing is mainly used for the pattern of repression of PEPPPVC wood plastic profile,sheet surface,it's better for the wood products surface of wood texture.the surface of the embossing can be processed all kinds of wood texture,surface can be hard chrome plating,Roller cavity heating,simple operation and wear-resistant.
Ultraviolet accelerated aging test machine
Suitable for testing kinds of material and products. Under the climate changes of sunshine, temperature, humidity, condensation etc, In order to test related products and material aging degree. In a short time get discoloration, fading and so on.
Impact tester
Mainly used in testing the impact toughness of hard plastic sheet, pipe, profile, enhance nylon, glass, steel, ceramics, cast stone, electrical insulation, and other non-metallic materials.It is the ideal test equipment for chemical industry, scientific research units, universities and colleges, quality inspection departments and professional manufacturers.
Melt flow indexer
It allows for the measurement of melt mass-flow rate (MFR) and melt volume-flow rate (MVR), melt density test, not only suitable for the high melting temperature engineering plastics, but also for low melting temperature plastics. It is widely used in chemical industry, scientific research units, universities and colleges, quality inspection departments.
Packaging & Shipping
Packaging & Shipping:
- Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
- Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.
Brief Infomation of JWELL MACHINERY CO., LTD
- The largest plastic extrusion manufacturer in China with 20 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
- Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.
- JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.
- We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
