PLA Sheet Extrusion Machine Biodegradable Products Making Machine

Shanghai Keyfood Machinery Co., Ltd.
  • Type：Sheet Extruder
  • Plastic Processed：PLA Pet
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Separate Type Extruder
  • Screw：Twin-Screw

Base Info

  • Model NO.：GY78
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Color：Beautiful
  • Transport Package：Package
  • Specification：KY45
  • Trademark：KEYFOOD
  • Origin：China
  • HS Code：847780000
  • Production Capacity：100sets,Y

Description

Basic Info.

Model NO. GY78 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Color Beautiful Transport Package Package Specification KY45 Trademark KEYFOOD Origin China HS Code 847780000 Production Capacity 100sets/Y

Product Description

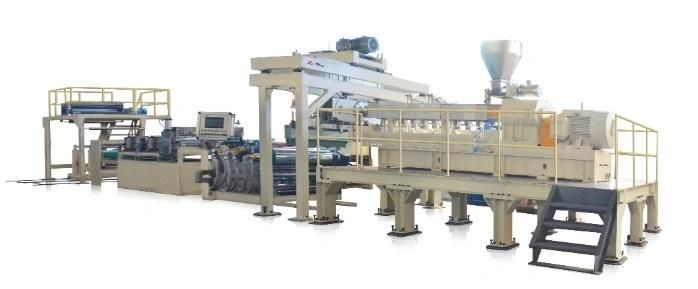

PLA sheet extrusion machine biodegradable products making machine
The screw adopts the gradient type single screw design, which is specially designed for the polylactic acid and corn starch melting. At the same time, it can be opened and vented according to the speciality of the material. The three-roll calendering is formed, and the temp. of the roller can be adjusted by the mold temperature machine. No paste, the product molding surface has good color, good toughness, the thickness is measured by the dial gauge, and the winding is automatically tensioned.
Process principle
PLA corn starch material -- Single screw extruder: raw material melt plasticization -- quick change filter -- extrusion die forming extrusion -- vertical three roll calender -- cooling setting device -- trimming mechanism -- traction transfer -- automatic tension winding
 PLA Sheet Extrusion Machine Biodegradable Products Making Machine

Product specification
Equipment model800/1000
Product width (mm)700/800
Product thickness (mm)0.3-0.7mm
Max line speed m/min5-15m

APPLICATION
Plastic thermoforming machine adopts servo motor driven systems and PLC control system with data operation and alarm, which is perfect for producing PET, PLA sheet and recycling materials. The main parts are abrasion resistant, corrosion resistant, high-temperature resistant by high quality specially-treated.   It does not need the pre-crystallization drying system, and it has low power consumption and high plasticizing effect.
