Customized 600mm HDPE ABA Three Layers Coextruding Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：45mm
Base Info
- Model NO.：F3B-ABA
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Machine Weight：5.5t
- Certification：CE, ISO9001:2008
- Film Type：Three Layers Coextrusion
- Material：PE,CaCO3,PE
- Screw Quantity：2 Set
- Die Head：ABA Die Head
- Heating Ring：Cast Aluminum
- Winder Type：Friction Single Station
- Auto Winder：Optional
- Rotary Die Head：Optional
- Transport Package：Stretch Film or Wooden Case
- Specification：CE, ISO9001
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：8477301000
- Production Capacity：30 Set,Month
Description

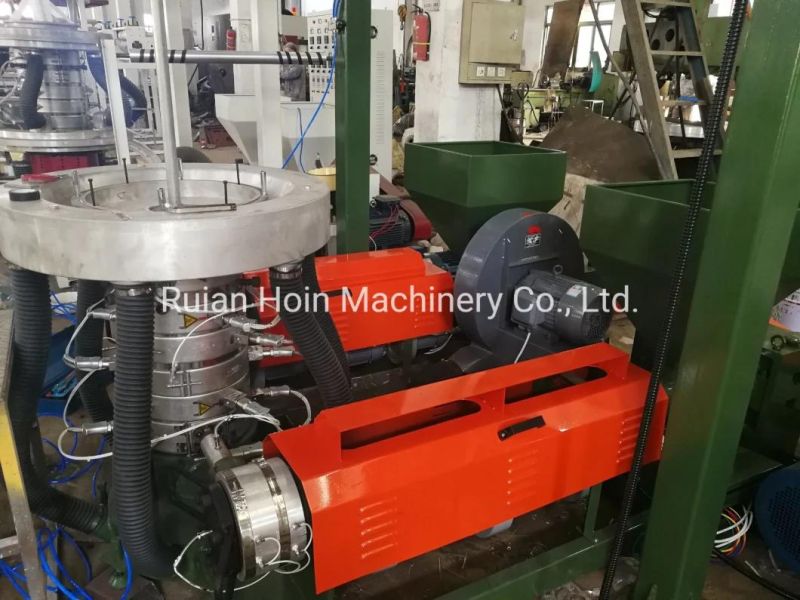

1. Extruder Unit
Die Head Material: HD60MM, Taiwan Type Design, Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel: 45mm*2units
Screw and Barrel Heating: 3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: 133#Hard Tooth Surface Gear Box

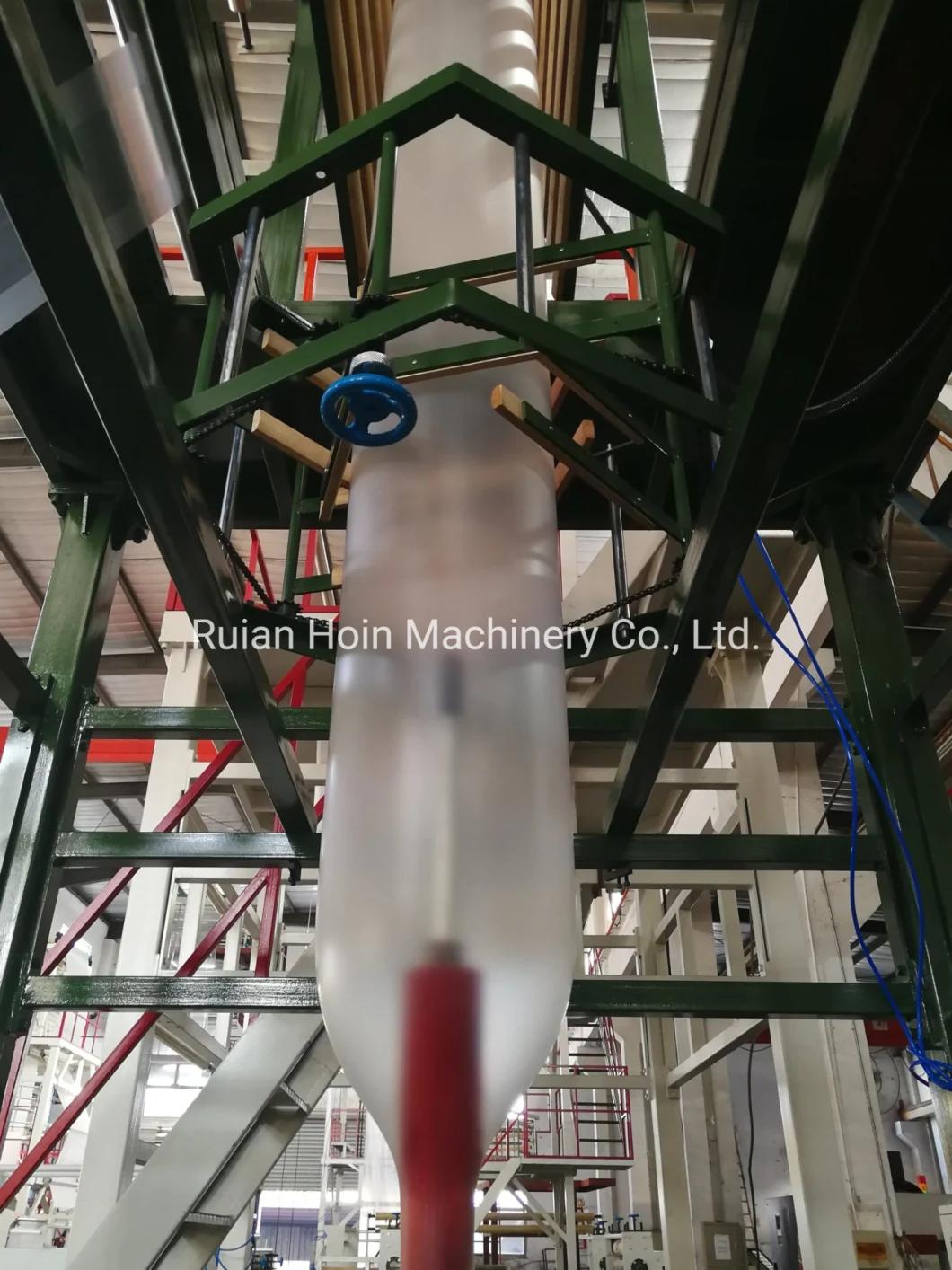

2. Take Up Section'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Gusset deep: 100mm each side
Take Up Motor: Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

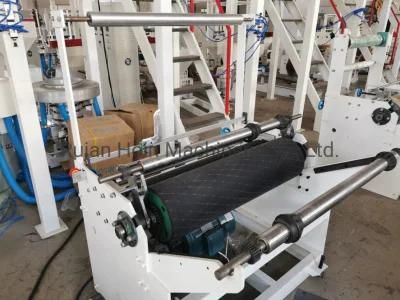

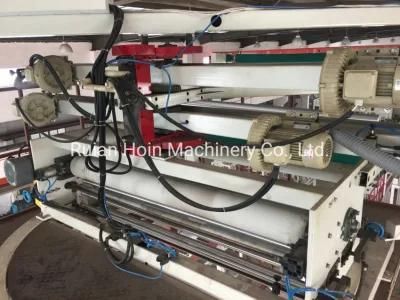

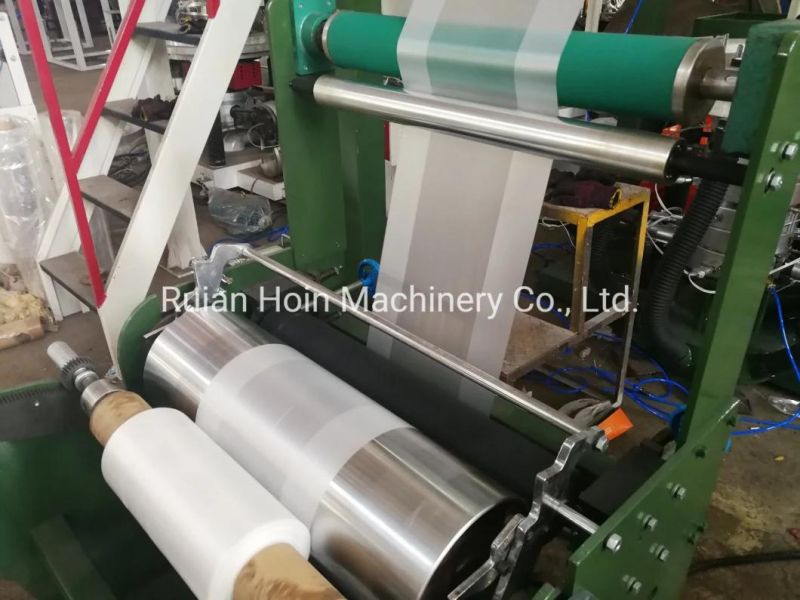

3. Winder UnitSecond Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

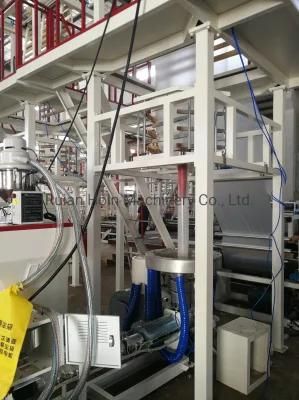

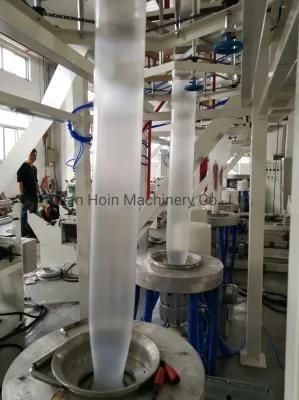

Overview of Machine

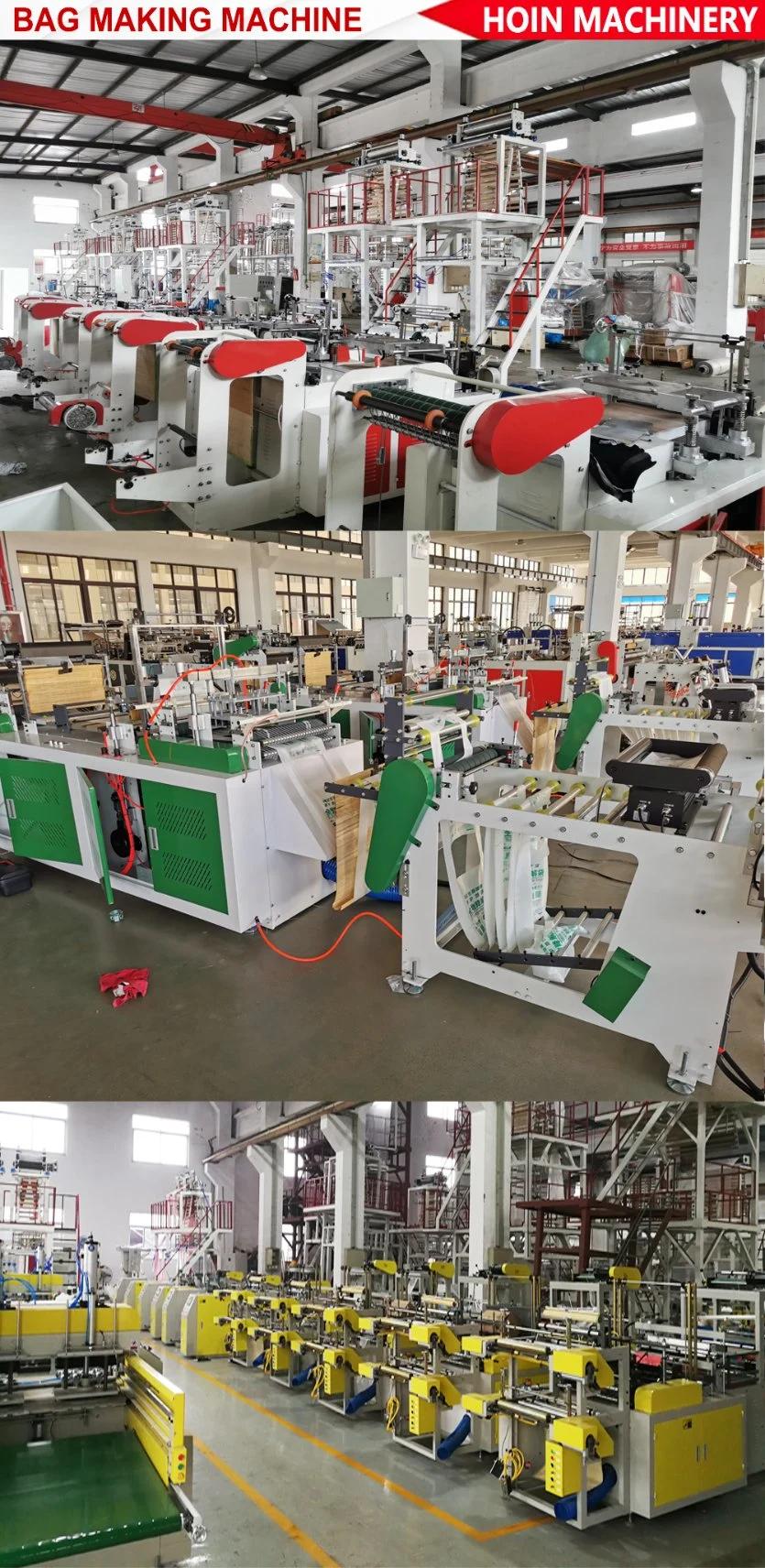

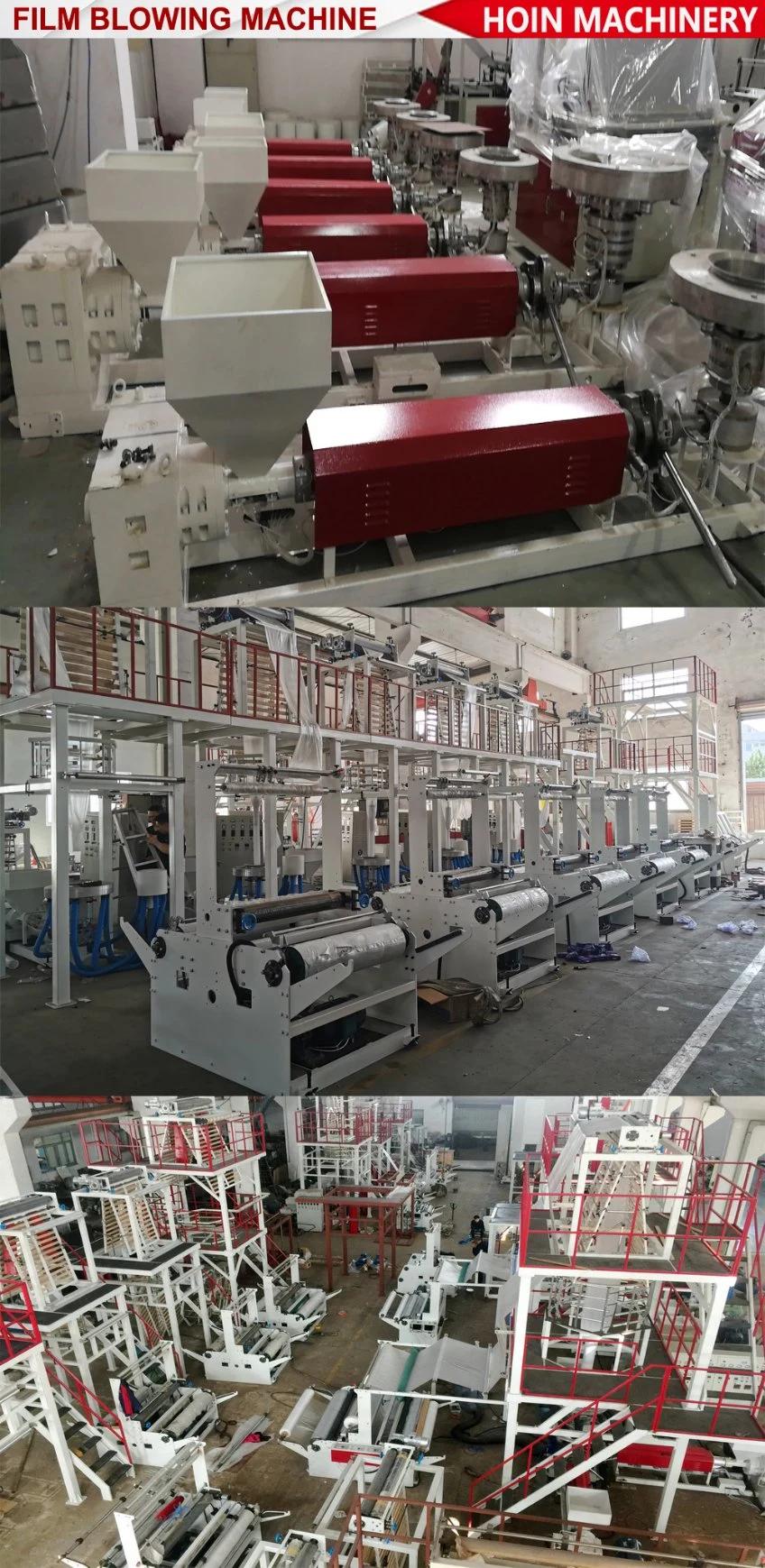

E. HOIN Workshop

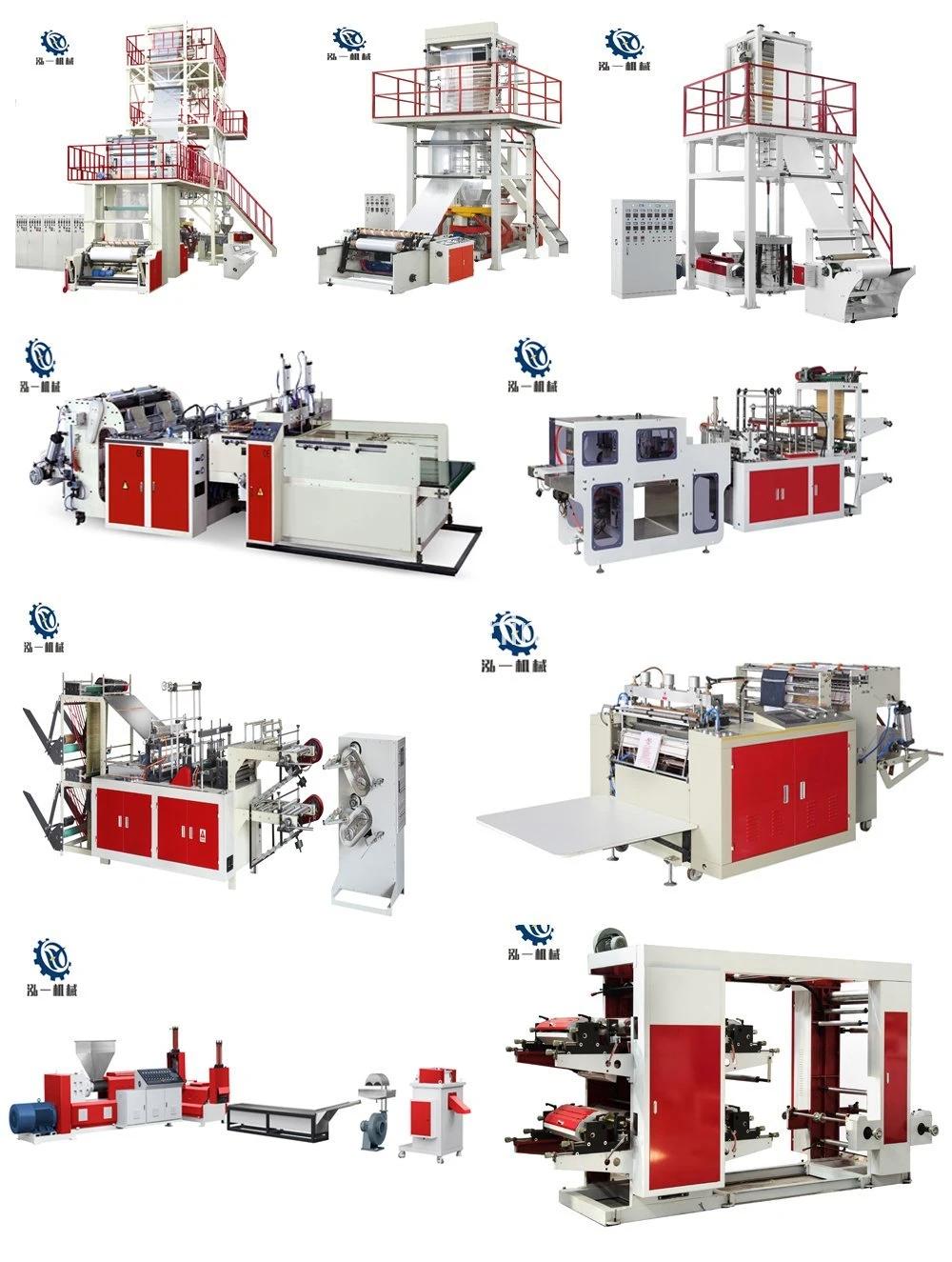

MORE PRODUCTS
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
