• Model NO.：SJ65, SJ75, SJ80, SJ90
• Engagement System：Non-Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Warranty：1year
• Product Types：Plastic Monofilament or Multifilament
• Product Applacations 1：Tying Twine,Split Yarn,Twisted Rope,Shadding Net
• Product Applacations 2：Broom Brush Filament,Fishing Net,Tree
• Delivery Conditions：Fob CIF CIP
• Processing Period：40 Days
• After-Sales Service：Send Engineers Install and Test Machine
• Line Diamision：30m*3*3m
• Line Weight：8-20t
• Output：60-300kg H
• Transport Package：Stretch Film and Wooden Pallet, Wooden Packing
• Specification：Monofilament Diameter: 0.01-0.25mm
• Trademark：Sincere Machinery
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：50 Sets Year

Basic Info.

Model NO. SJ65, SJ75, SJ80, SJ90 Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Warranty 1year Product Types Plastic Monofilament or Multifilament Product Applacations 1 Tying Twine/Split Yarn/Twisted Rope/Shadding Net Product Applacations 2 Broom Brush Filament,Fishing Net,Tree Delivery Conditions Fob CIF CIP Processing Period 40 Days After-Sales Service Send Engineers Install and Test Machine Line Diamision 30m*3*3m Line Weight 8-20t Output 60-300kgH Transport Package Stretch Film and Wooden Pallet, Wooden Packing Specification Monofilament Diameter: 0.01-0.25mm Trademark Sincere Machinery Origin Qingdao, China HS Code 8477209000 Production Capacity 50 SetsYear

Product Description

*PET PP Plastic Broom brush Monofilament Extruder Machine.
*PE PP Strapping rope Extrusion Machine Line
*PP/ HDPE( Polypropylene/ polyethylene) monofilament extruder machine
*PET broom/ brush monofilament extrusion machine
*nylon/ PA6/ PA66 fishing line and trimmer line extruding making machine
*pp danline rope yarn extruder machine/ equipment
*pp split/ raffia/ twine/ fibrillated yarn extrusion machine
*polypropylene / hdpe rope making production line




1.The use:

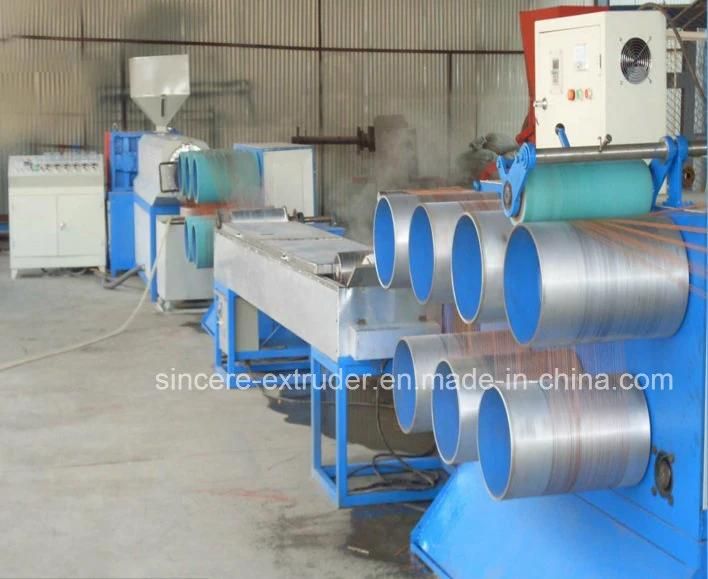

This extrusion line is mainly used to produce broom monofilament silk, toothbrush silk, brush wire, fishing wire, rope wire, security net etc. from polyethylene, polypropylene, PET polyester or PA

2.Components:
It consists of dehumidifying and crystallizing system, extruder, screen changer, Meter pump, mold, haul-off, oven, and winder, etc.

3.Production Process:
Material→ Dehumidifying and Crystallizing → Extruding → Filter→ Metering→ Mold → Cooling→ Haul-off →Oven Heating→ Haul-off→ Oven heating→ Haul-off → Glazing → Shaping → Haul-off→ Winding

4.Features:
1. With 100% bottle flakes material, or mixed with PET/PP raw material
2. New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material; secondary stretching, increase the tensile strength and elongation, the belt tension reaches more than 10000N
3. Precise and energy saving temperature control system, power saving, low noise, low input and high yield

5.Application:

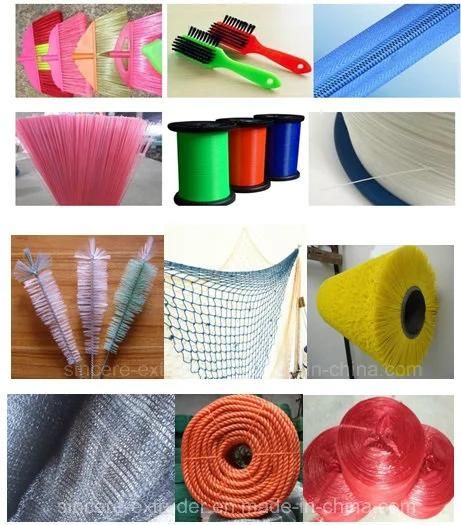

With 100% bottle flakes recycled material, to produce PET or PP monofilament, like broom filament, zipper filament, Christmas tree filament, broom monofilament silk, toothbrush silk, brush wire, fishing wire, rope wire, fishing net wire, construction fence wire, etc.


Extrusion line Producting PPPEPETPA monofilament yarn for broom filament, zipper filament, Christmas tree filament, broom monofilament silk, toothbrush silk, brush wire, fishing wire, rope wire, fishing net wire, construction fence wire  :

Extruder Model	SJ65	SJ80	SJ90
Main motor	11kw/18.5kw/22kw	22kw/30kw/37kw	22kw/30kw/45kw
Monofilament diameter	0.014-2.5mm	0.014-2.5mm	0.014-2.5mm
Output	40-60kg/h	80-100kg/h	80-120kg/h
Numberof hole	60-100	60-200	60-200

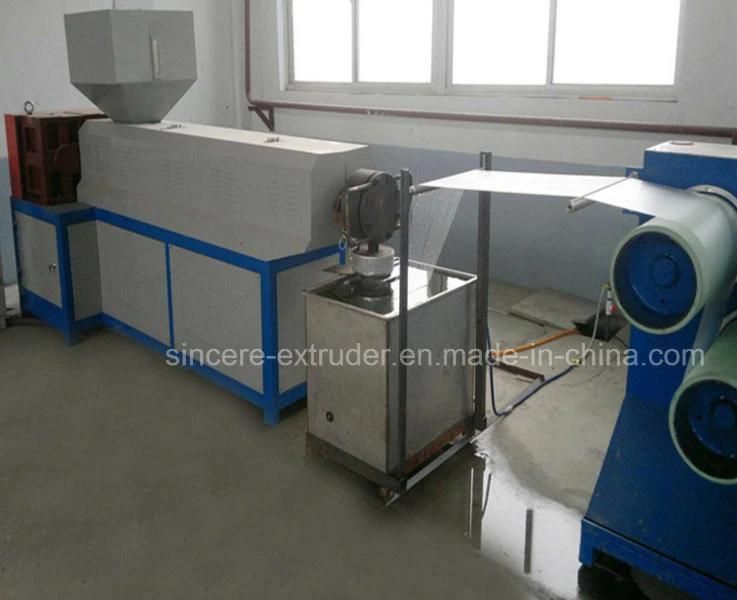

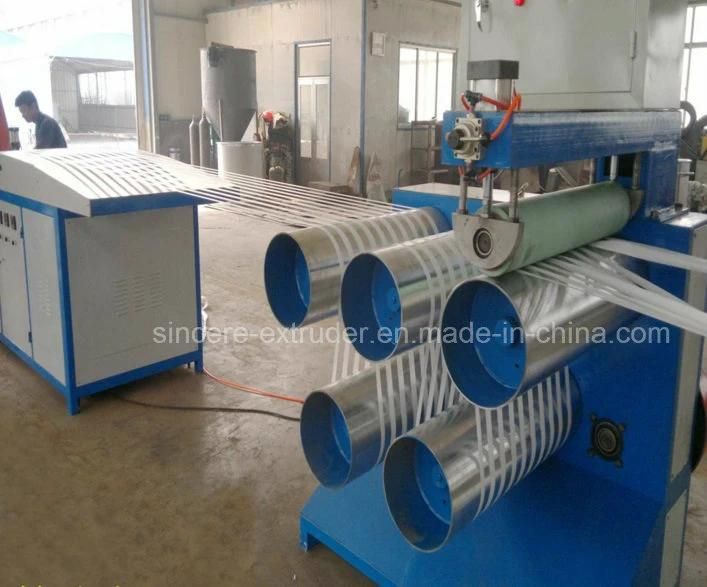

Extrusion line producting PP/PE splitfilm for agriculture and industry tying twine/ binding twine/ baler twine/ split yarn/ flat yarn/ twisted twine/ rope twine,dustproof net, sunshading net:


Extruder model	SJ-75	SJ-80	SJ-90
T-die Width	600mm	800mm	1000mm
Screw Diameter	75mm	80mm	90mm
Fiber Type	PP/PE/HDPE Film, Split Film, Raffia Twine and so on	PP/PE/HDPE Film, Split Film, Raffia Twine and so on	PP/PE/HDPE Film, Split Film, Raffia Twine and so on
Ratio of L/D	33	33	33
Rotation Speed of Screw	20-90r/min	20-90r/min	20-90r/min
Drawing Ratio	4-10	4-10	4-10
Cooling Mode	Water Cooling	Water Cooling	Water Cooling
Power Consumption	100KW/60KW	130KW/80KW	150KW/100KW
Max Output capacity	1200KG/24H	2000KG/24H	3000KG/24H
Machine Weight	13 Tons	15 Tons	18 Tons
Machine Dimension(L*W*H)	25*2*2m	26*2.2*2m	27*2.2*2m
