Semi-Automatic Plastic Forming Machine (HY-61/62B)

Zhejiang Hongyin Machinery Co., Ltd.
  • Certification：CE, ISO
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Semiautomatic
  • Brand Name：Hongyin
  • Model Number：Hy-61,62b

Base Info

  • Model NO.：HY-61,62B
  • Processing Type：Plastic Thermoforming Machine
  • Product Type：Plastic Packaging Products
  • Max Forming Area：510*620mm
  • Max Forming Depth：100mm
  • Place of Origin：Zhejiang China (Mainland)
  • Voltage：380V 50,60Hz
  • Dimension(L*W*H)：2750*1410*2350mm
  • Warranty：1 Year
  • Transport Package：Wooden Packing
  • Specification：CE
  • Trademark：HongYin
  • Origin：Zhejiang Ruian
  • HS Code：84774090
  • Production Capacity：10 Sets,Month

Description

The parameter of thermoforming machine1.Forming area:610×620mm2.Forming depth:100mm3.Sheet thickness range:0.1-1mm4.Sheet roller diameter:710mm5.Cutting length:6350mm6.Ari pressure:0.7Mpa7.Water consumption: 10Liters/min8.Air consumption:1800 Liters/min9.Speed:600-1500 Liters/min10.Power:3-N AC380V±10%11.Preheater power:2kw12.Mould plate heating power:4.8kw13.Heating plate power:12kw14.Sheet width:650mm15.Weight:2000kg16.Dimension(L×W×H)4150×1150×2160×(mm)
II. Application Area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture

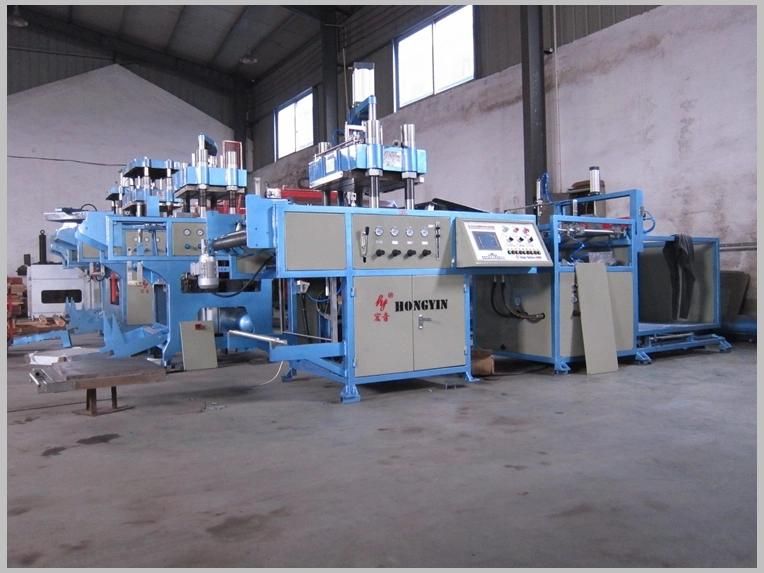

1. HY-61/62BB plastic thermoforming machine workshop.
Semi-Automatic Plastic Forming Machine (HY-61/62B)

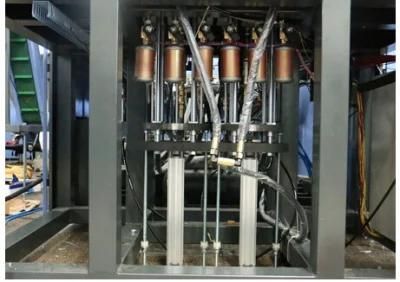

2. The HY-61/62B plastic thermoforming machine details part.

Semi-Automatic Plastic Forming Machine (HY-61/62B)

3. HY-61/62B thermoforming machine products samples
Semi-Automatic Plastic Forming Machine (HY-61/62B)
IV. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian Hongyin Company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
Contacter: Michael Rao
Tel:+86 15158704325
