• Model NO.：20T Hydraulic pultrusion line
• Transmission Type：Flexible
• Cutting Type：Pneumatic Length-Fixing Cutting

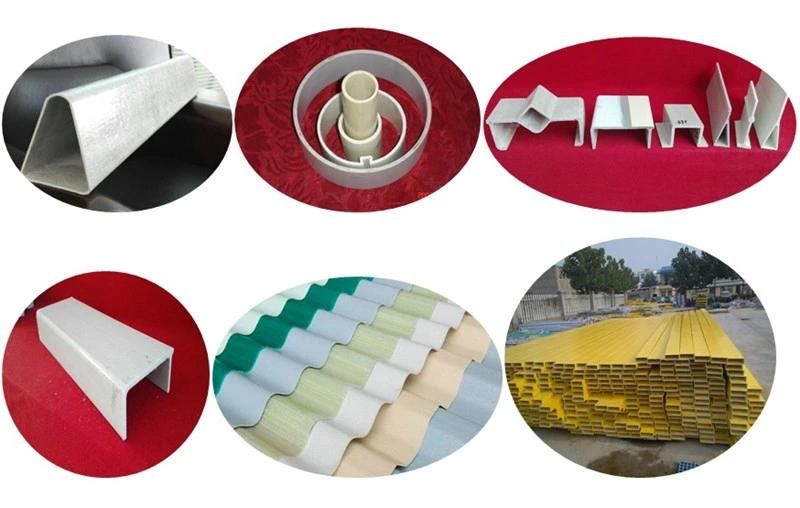

• Products Shape：Different Profiles of FRP Products
• Transport Package：Standard Wooden Case
• Specification：National standards
• Trademark：Zhihong
• Origin：Shandong, China
• HS Code：8477800000
• Production Capacity：20sets,Month

FRP  20T pultrusion machine
The machine includes:Items Description QtyTechnical Data1Roving creels

 2pcsa. Ivory paint, combined structure, easy accessibility
b. Rolls capacity: 70-100 5 layers
c. Dimension: 2000mm(L)x700mm(W)x2000mm(H)
 2Resin bath
 1pca. Capacity: 50kg
b. Bath dimension: 1030mm(L)x720mm(W)x190mm(H)
c. Dimension: 1110mm(L)x810mm(W)x900mm(H)
 3Calibrating table
 1pca. Size of die table: 970mm(L)x910mm(W)x20mm(H)

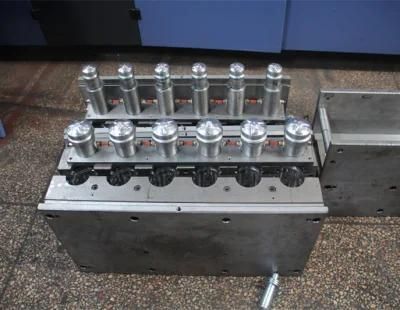

b. Length of die: 900mm
c. Adjustable height of die table: 0-80mm
d. Temperature control zones: 4 (max control power 20KW, heating plated customer made)
e. Dimension: 3500mm(L)x1140mm(W)x1380mm(H)
 4Traction  machine
 1pca. Clamping envelope: 800mm(W)x300mm(H)
b. Max traction force: 200KN
c. Max clamping force of traction heads: 200KN
d. Traction speed: 0.1m-1.0m/min
e. Max traction to-and-fro journey: 500mm
f. Clamping journey: 100mm
g. Traction cylinder: HSG ∮125X500
h. Clamping cylinder: HSG ∮125X500
i. Oil pump power: 380V 50HZ  2x3KW
j. Cooling water pump power: 220V/50HZ 2.2KW
k. Dimension: 4800mm(L)x1140mm(W)x1750mm(H)
 5Cutter
 1pca. Cutting range: 800mm(W)x240mm(H)
b. Rotation speed of cutting blade: 1450rpm
c. Cutting power: 3KW
d. Diameter of cutting blade: ∮600mm/∮50mm (inner)
e. Dust collection: vacuum cleaner  1.5KW
f. Cutting tracing journey: 700mm
g. Cutting mode: auto/manual
h. Fix-length cutting mode: limit switch
i. Dimension: 2700mm(L)x2100mm(W)x1800mm(H)
 6 Creel for finished products 1pca. Structure: square tube and steel plate welded
b. Standard configuration: platform type
c. Dimension: 6000mm(L)x550mm(W)x900mm(H)Control systema. PLC: FX1N , Mitsubishi,  Japan
b. Temperature controller: N6000 YATAI, Shanghai
c. Velocimetry encoder: HMN-8G10 Howard, Shanghai
d. Speed digital display meter: FM8-RL0 Toky, Japan
e. Electrical components: Huyu, ZhejiangHydraulic system a. Oil pump: Yongjing, Shanghai
b. Variable piston pump 15C3RGE-10
c. Stacked hydraulic change valve, pressure regulating valve: NORTHMAN, Taiwan, SWH-G02
d. Precise speed regulating valve: DAKIN, Japan JFC-G02
e. Each traction head has separate hydraulic system
f. Oil temperature alarm and filter blocking alarm function

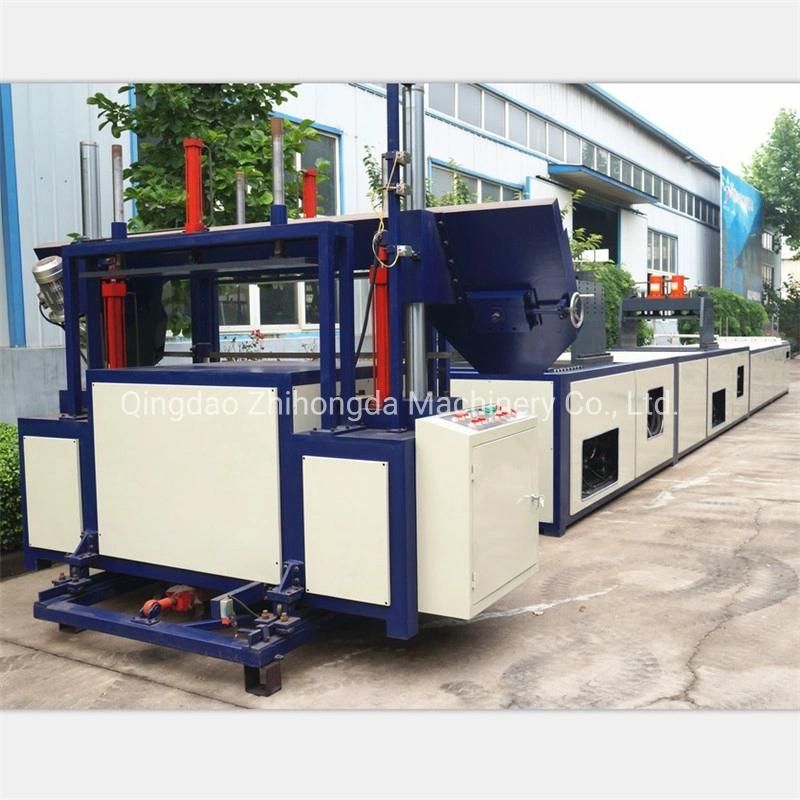

Details Show Of Our FRP Profile Pultrusion Machine









Packaging and Shipping:
Nude Packing or According to Customer′s Requirement

Delivery time:
45 days after receipt deposit

Payment Term:

T/T 40% deposit , 60% balance by T/T paid off before delivery after customer finished inspection in our factory; Or L/C at sight with irrevocable.


Our Services:

as requested by buyer, seller may send 1-2 technicians to buyer's factory for installation and adjustment , buyer should afford technician's round air tickets, room and board, safety, commission of everyone is usd70.00/day.


About our company:

Our FRP pultrusion Machines have exported to Iran, Ukraine, united Arab emirates, Russia etc.

If you are interested in our products above. Kindly let us know by return email. Then we will reply you immediately with detailed catalogue and quotations. Of course, welcome to visit our factory!

Qingdao Zhihongda Machinery co.,ltd, Except the FRP Profile Pultrusion Machine, We can also design and manufacture all kinds of Rubber machinery. Such as vulcanizing press, rubber extruder etc. We have a group of professional engineers who engaged in this field for more than 15 Years in charge of designing,manufacturing, installing,testing. So we can guarantee that our machines will be running with good performance based on high quality. Good after-sales service will be satificated with you.

Qingdao Zhihongda Machinery Co.,Ltd located in Qingdao City.You can fly to Qingdao Liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
