• Model NO.：SJ-90; SJ-120; SJ-150
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Control System：Siemens PLC
• Inverter：ABB Brand
• Main Motor：Siemens
• Sheet Thickness：0.15mm-1.8mm
• Sheet Width：1500mm
• Transport Package：Export Standard
• Specification：0.15mm-1.8mm thickness, 1500mm width
• Trademark：TRUSTY
• Origin：Qingdao
• HS Code：84772090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. SJ-90; SJ-120; SJ-150 Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Control System Siemens PLC Inverter ABB Brand Main Motor Siemens Sheet Thickness 0.15mm-1.8mm Sheet Width 1500mm Transport Package Export Standard Specification 0.15mm-1.8mm thickness, 1500mm width Trademark TRUSTY Origin Qingdao HS Code 84772090 Production Capacity 10 Sets/Month

Product Description

APET/PETG/CPET single-layer/multi-layer sheet extrusion production line

Company introduction:
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion equipment manufacturer integrating design, research and development, production and sales.
The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.

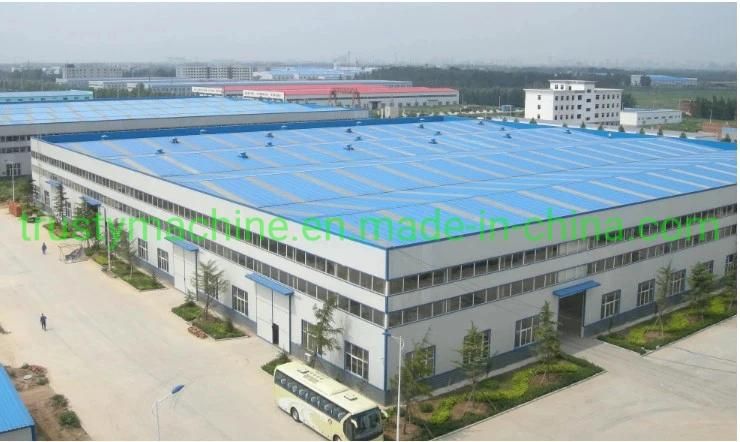

Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.

Our company's main products are: PVC door and window profile production line, WPC wood-plastic profile production line, PVC wall panel production line, PVC/PE/PPR pipe production line, PVC/WPC crust foam board production line, PE/PP/PC hollow sheet production line, PVC roof tile production line and PET packing belt production line, etc. According to customers' needs, to achieve diversified processing customization.

Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.

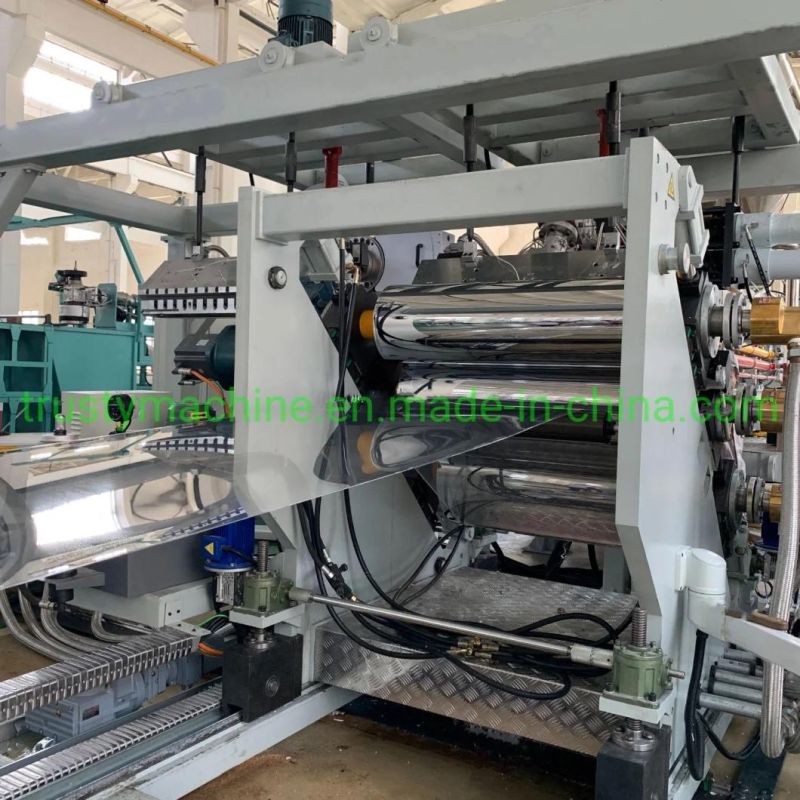

This machine is mainly composed of pre-crystallization drying system, (single-screw extruder or parallel twin-screw extruder can be selected), hydraulic screen changer, melt metering pump, coat hanger die Head, three-roll calender, cooling traction bracket, double-station winding device, etc.

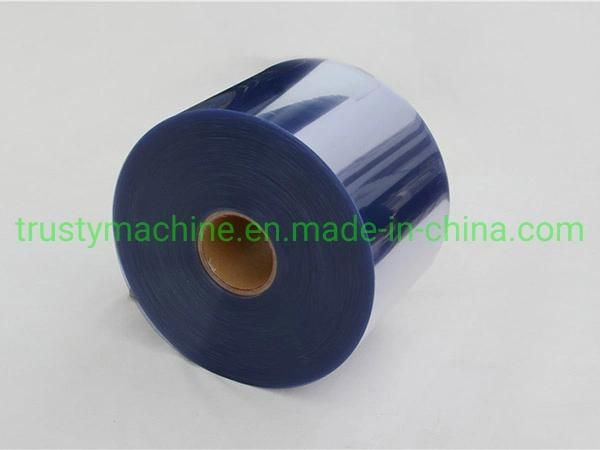

Mainly used in the production of plastic sheets such as PET, PP, PS (blister sheets), and blister sheets for packaging products such as food, medicine, containers, and liquids.


Features:
Excellent processing, transparency, barrier properties, non-toxic, odorless, non-polluting, and easy to recycle.
Application:
1) After vacuum forming, it is used for food packaging, toy boxes, gift boxes, electronic product packaging, etc.
2) Folding molding is used for clothing lining collars, decorative materials, folder covers, etc.
3) Special purpose for medical equipment, pharmaceutical packaging, industrial anti-corrosion protection, etc.

Main technical parameter:

Model	APET single layer	APET/PETG Multi layer	APET free crystallization drying
Extruder model	Φ120/33	Φ120/33,Φ65/33	SHJ-75/40
Sheet width	500mm-1500mm	500mm-1500mm	500mm-1500mm
Sheet thickness	0.2mm-1.8mm	0.2mm-1.8mm	0.2mm-1.8mm
Max output	400kgs/h	500kgs/h	400kgs/h
Main motor power	132kw	132kw/45kw	132kw
Design line speed	20m/min	25m/min	20m/min

Functions of finial products from PET sheet extrusion machine line
with compact structure, high and stable output, reasonable configuration and high automation is avaliable for 100% reclaimed scrap material and can produce PET sheet use for packing material due to its advantages of air insulation, being free from other additives, cleanliness, good tenacity and ductibility, good reclaiming performance, etc. they are popular in the following packing and printing fields as medicine, food, electric appliance, toys, etc.



PET sheet extrusion machine line Main Features
1. Good mould ability due to the large L/D ratio of the screw in the extrusion unit 2. Advanced hydraulic pressure, high speed net changing fitting without stopping the machine 3. Convenient operation, excellent function 4. Improves production efficiency 5. The mould of heat inside is featured by easy mould adjusting, equal sheet thickness, constant flowing speed, high hot utilization and energy saving 6. Sheet cutting machines work automatically, such as cutting sheets with settled length, counting number by adopting the micro-computer and laser-pressed control
Products Features
APET, PETG, CPET single-layer or multi-layer sheet extrusion machine It's one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it's over 30% higher in overall efficiency. Line is suitable for PS, PP, PE as well.
Dryer-free PET double venting sheet line Free of crystallization drying system, the new designed line can greatly reduces cost of production.
PETG sheet PETG is called low temperature PET, it's a new environment-friendly packing material with features such as high luster, good transparency, excellent barrier property, self-adhesion, which is used for glue bonding and high-frequency processing.
CPET sheet CPET is a kind of modified PET. With good resistance to high temperature, it is usually used for package in microwave oven.
PET stereoscopic optical grating sheet It can be used as top grade package for cosmetics, medicine, tobacco & alcohol and common goods such as stationery, advertisements, posters and all kinds of cards.





FAQ
1.WHY CHOOSE US
We are the Professional manufacturer to develop the plastic extrusion machines in Qingdao. Machine quality and customer satisfaction is our pursuit.Be sure we have the strength to provide you with quality machines and perfect service.
2.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
3.PAYMENT TERMS:
30% of total amount should be paid by T/T as down payment ,the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
4.DELIVERY CONDITIONS:
4.1 Delivery condition: FOB Qingdao port or CIF destination Port.
4.2 Delivery terms: Within 30-60 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
5.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
6.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
7.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
