• Model NO.：BDX
• Application：Plastic Pet Bottle Recycling Machine
• Material：Stainless Steel 304
• Final Pet Flake Water Content：Less Than 3%
• Final Product：Clean Flakes
• Main Motor：Siemens
• PLC：Siemens
• Contactor：Schneider
• Delivery Date：45days
• Payment Type：T,T or L,C
• Transport Package：Wood Case or Plastic Film
• Specification：CE and ISO SGS
• Trademark：Sevenstars
• Origin：Zhangjiagang
• HS Code：8477201000
• Production Capacity：300-3000kg,Hr

Basic Info.

Model NO. BDX Application Plastic Pet Bottle Recycling Machine Material Stainless Steel 304 Final Pet Flake Water Content Less Than 3% Final Product Clean Flakes Main Motor Siemens PLC Siemens Contactor Schneider Delivery Date 45days Payment Type T/T or L/C Transport Package Wood Case or Plastic Film Specification CE and ISO SGS Trademark Sevenstars Origin Zhangjiagang HS Code 8477201000 Production Capacity 300-3000kg/Hr

Product Description

Plastic PET bottle washing machine / PET bottle recycling machine / plastic bottle washing line / PET bottle flake washing line

Product Description

The whole production line is researched,design and manufactured for pet bottles,barrels etc.

1. researched,designed and manufactured by our company, integration of European technology
2. high efficiency
3. working stable
4. large capacity etc.
5. Final product of good quality, low humidity content(less than 2%) and less impurities(less than 400PPM).
6. SUS-304,more than 3mm thickness,ensures whole production equipment long service life time.

Applications:

1. This washing,recycling line is mainly used for dealing with waste hdpe bottles/barrels,
     PP barrels, PET bottles/Lumps etc.
2. Realizing one production line can process different material.
    The whole production line is surely of standard and high quality with CE certification and ISO9001:2000.

 Specifications :

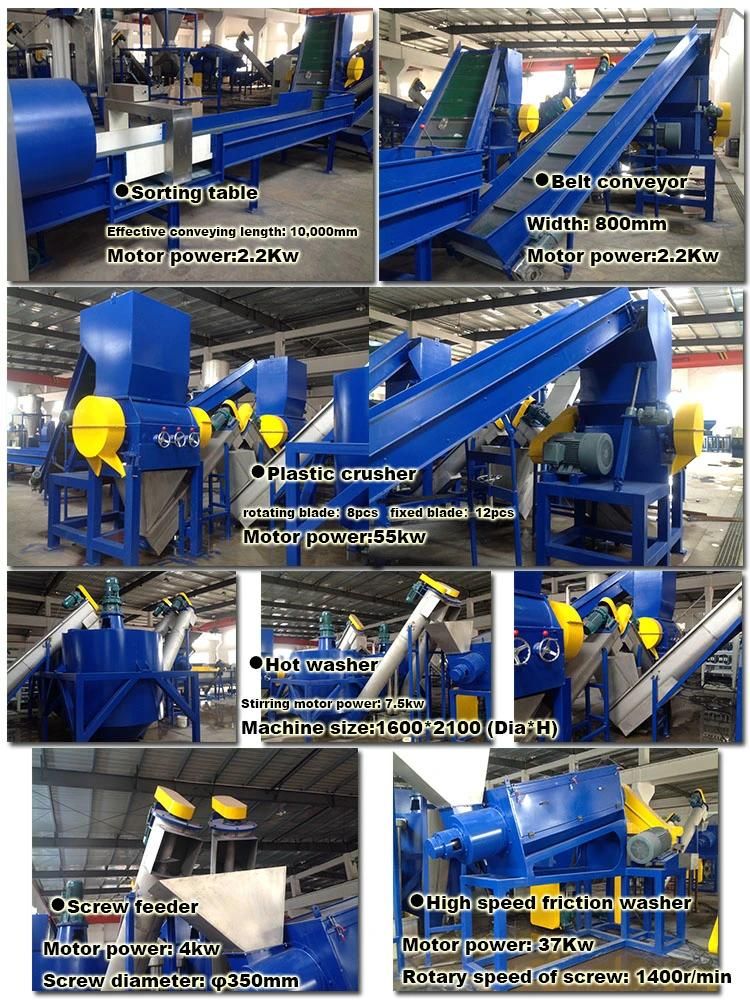

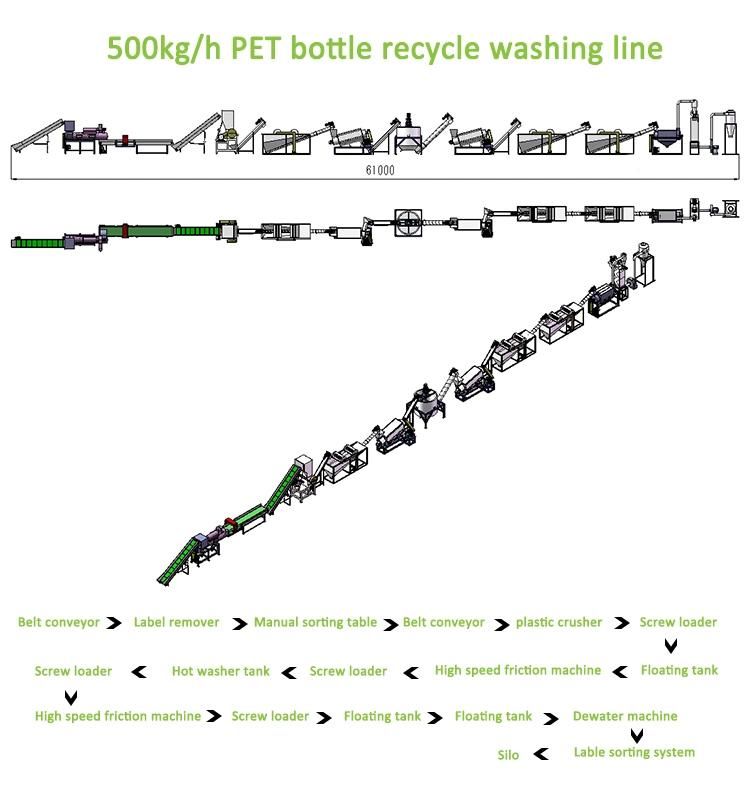

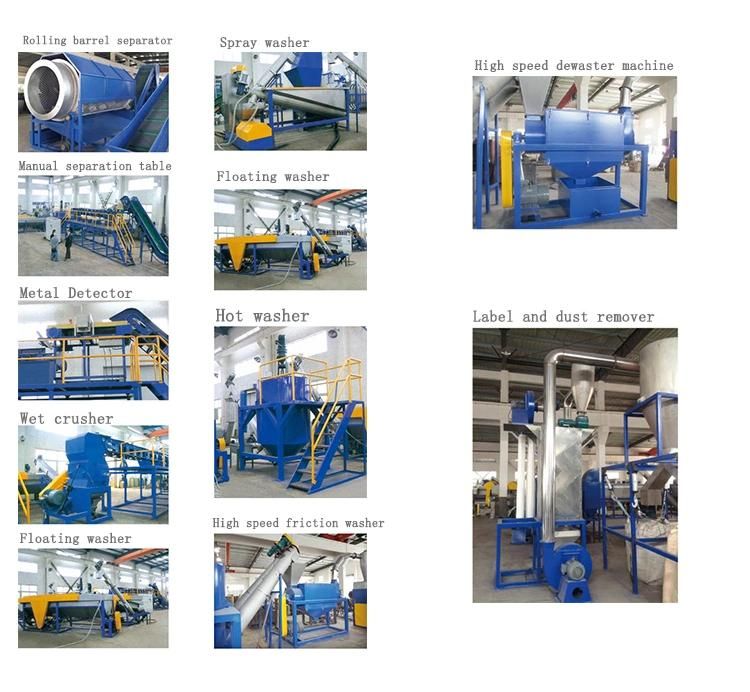

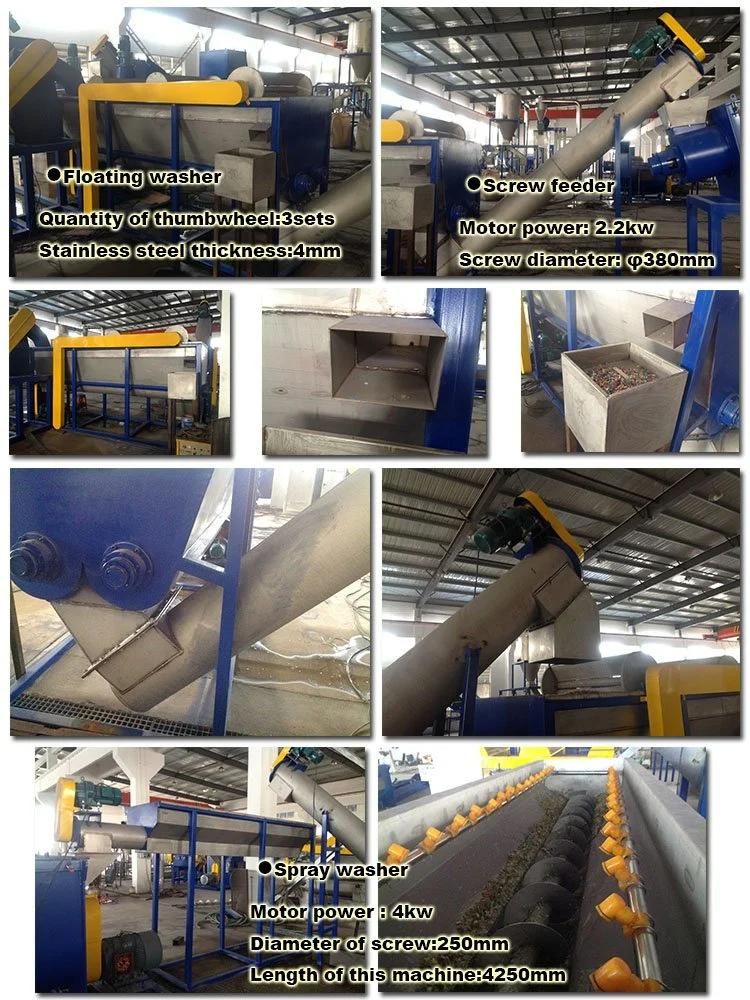

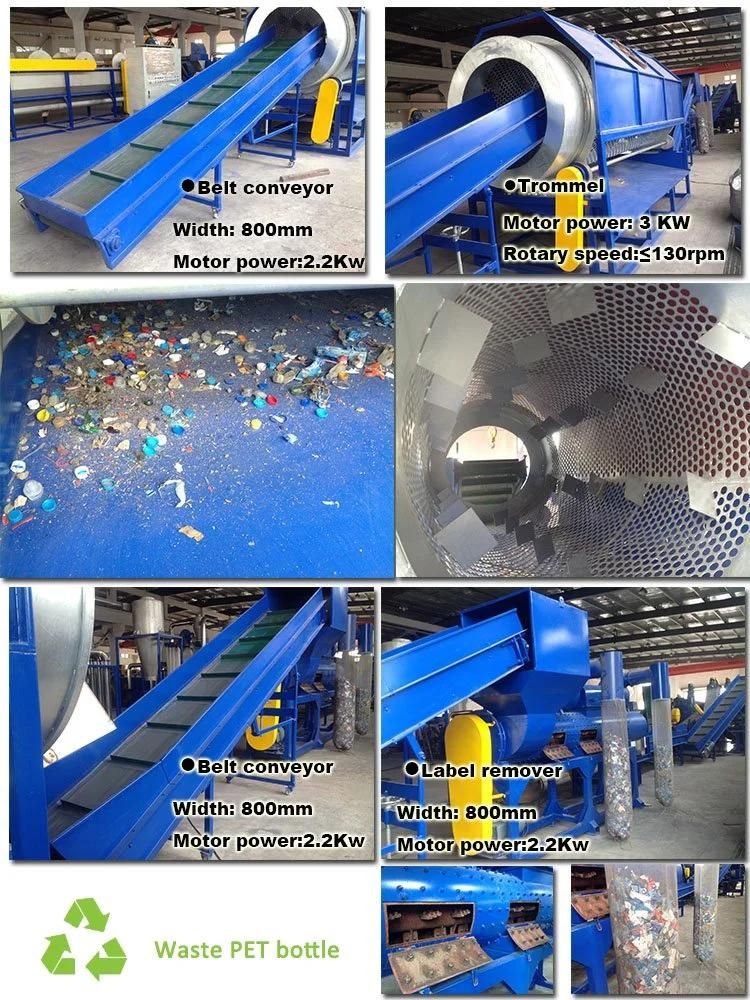

No.	Equipment Name	Quantity	Comments
1	Belt conveyor	1 set
2	Bag opener	1 set	Optional
3	Belt conveyor	1 set
4	Trommel	1 set	Optional
5	Belt conveyor	1 set
6	Manual sorting conveyor	1 set	Optional
7	Belt conveyor	1 set
8	Crusher	1-2 sets
9	Screw conveyor	1 set
10	Washing tank	1 set
11	Screw conveyor	1 set
12	Cooking boiler or Horizontal Hot washer	1-2 sets
13	Screw conveyor	1 set
14	High-speed washer	1 set
15	Washing tank	1 set
16	Screw conveyor	1 set
17	Horizontal Dewatering Machine	1 set
18	Cyclone separator	1 set
19	Drying system	1 set
20	Label separator	1-2 sets	We can equipped with two label separators in the whole line, one at the beginning, another at the end
21	Final product silo	1 set
22	Control System	1 set




Our Service :

 1. Purchase Service

 We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .


2. Shipping Service

We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.

 We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.


3.Installation and Training Services

Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.

Training on our factory also be welcome.



4.After Sales Service

Our machines guarantee time is one year.

Many easy broken spare parts will be prepared in the tool box together with machines.

Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
