Full Automatic High Speed Pet Water Bottle Blowing Machine
Jiangsu Faygo Union Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Automatic Grade：Automatic
- Warranty：1 Year
- Model：Fg-4
- Mold Cavity：4
- Max Productivity：7200bph
Base Info
- Model NO.：FG-4
- PLC System：Mitsubishi
- Air Pressure：30bar
- Cooling Water：22L,Min
- Working Method：Automatic
- Total Power：50kw
- Dimension：3200mm*1150mm*2200mm
- Raw Material：Pet
- Making Method of Parison：Injection Blowing
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Transport Package：Woodbox with Film Wrapped
- Specification：FG-4
- Trademark：Faygo
- Origin：Zhangjiagang, Jiangsu, China
- HS Code：84778000
- Production Capacity：7200bph
Description
Note: All the electrical components adopts CE,UL,CCC approved international
advanced high-tech product

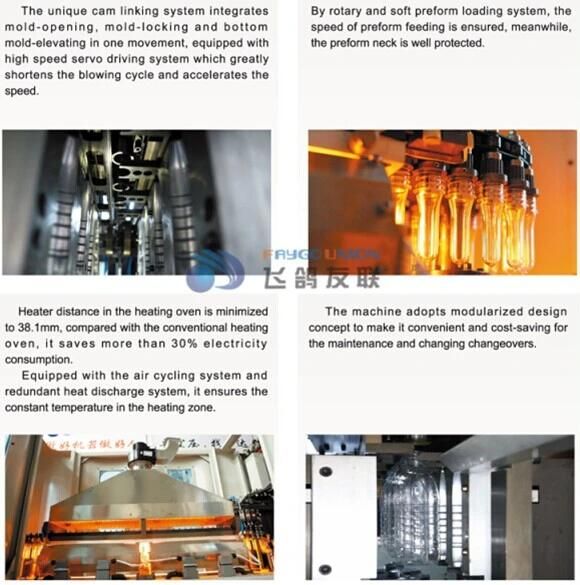

3. Advantage of FG-4 PET water bottle blowing machine
a. Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement. Equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity. The complete movements of PET blowing only takes 2 seconds.
b. Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
c. Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
d. Modularized design conception
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
4. Other related equipment for FG-4 PET water bottle blowing machine:
| Air Compressor | WH-2.0/30 | 3sets |
| Air Dryer | 6.0m3/min 30Kg | 1set |
| 3 Stage Air Filter | 6.0m3/min 30Kg | 3sets |
| Oil separator | sorted | 1set |
| Air Tank | 2 m3 | 1set |
| Mold Chiller | 6HP | 1set |
| Oven Chiller | 3HP | 1set |
| 1L Blowing Mold | 1000ml | 1set |
5. Packaging & Shipping
Wooden box with film wraping
6. Company Information
Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
Factory address:Feixiang road, fenghuang industry zone, Zhangjiagang city, Jangsu, China.
