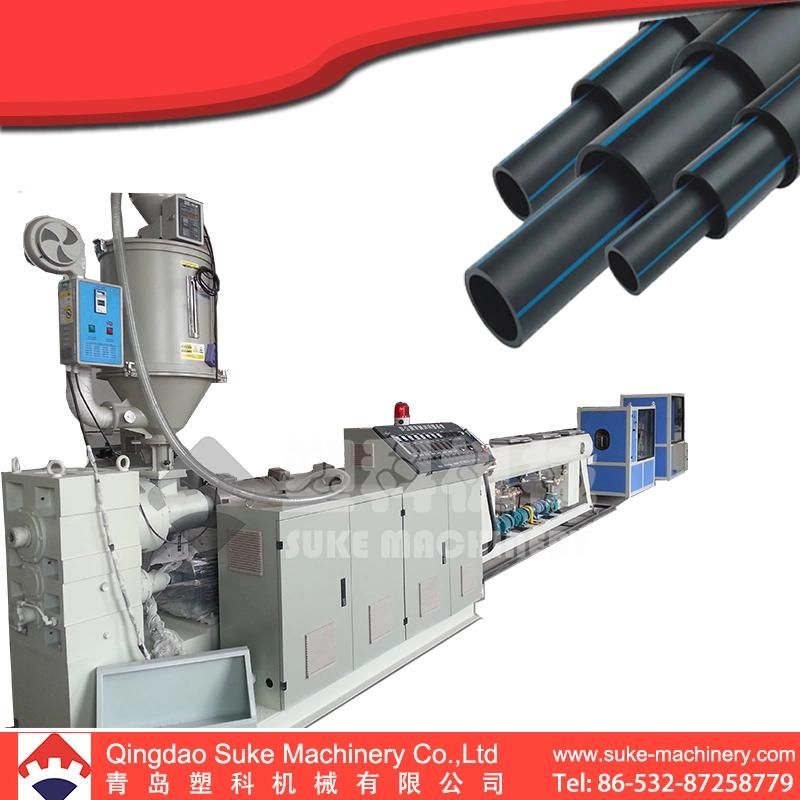

PE Pipe Extrusion Production Line Extruder Machine PP PPR Pipe Manufacturing Machinery
Qingdao Suke Machinery Co., Ltd.- Warranty：One Year
- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：SJ65x30
- Customized：Customized
- Condition：New
- Machine Color：as Request
- Extruder Type：Single Screw Exruder
- Raw Material：PE, PPR Granule
- Inverter：ABB
- Contactor：Schneider
- Components：Simens
- Oversea Service：Available
- Operator：2-4
- Cooling Method：Recycling Water
- Transport Package：in Wooden Case
- Specification：CE ISO
- Trademark：SUKE
- Origin：Qingdao, China
- HS Code：84775900
- Production Capacity：50 Sets Per Year
Description
Pipe Diameter: 16-630mm
By different diameter, it may need different type of machine.
This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.

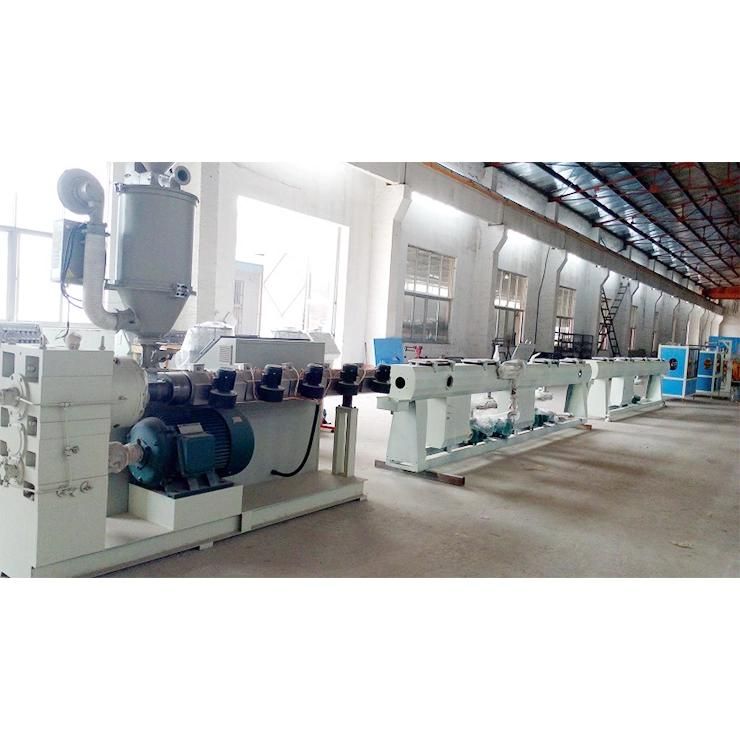

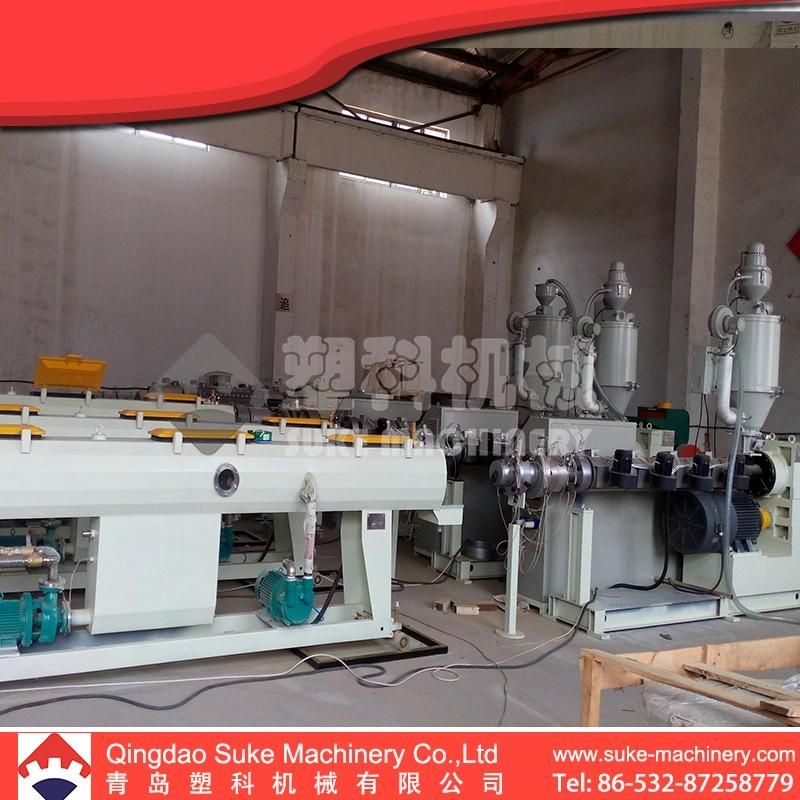

Production Process Flow
Machine Features
Adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.
Extrusion die head is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

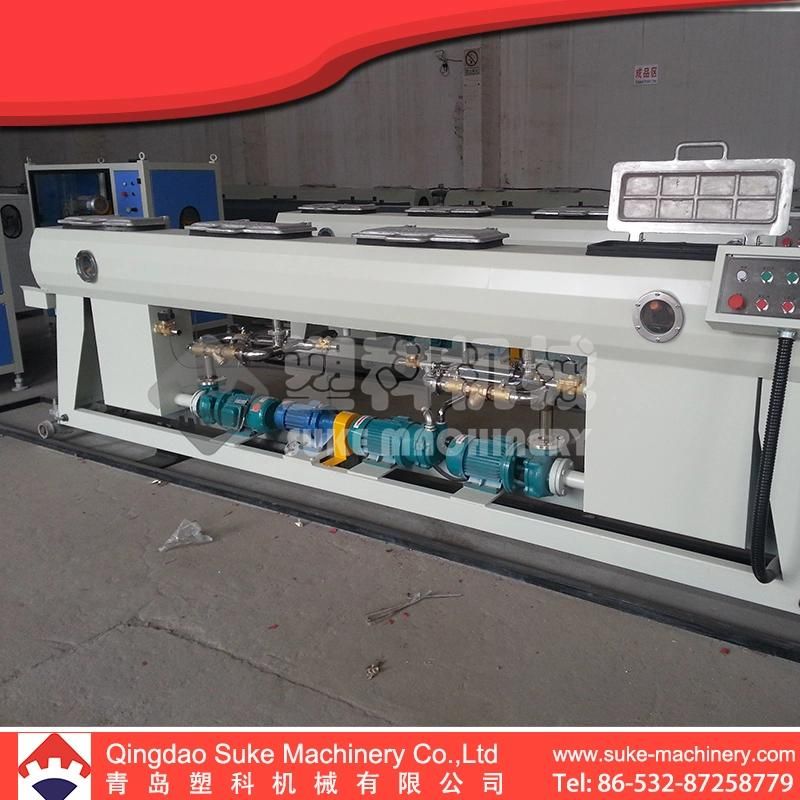

Vacuum calibrating tank and water spraying cooling tank adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.
Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
It is additionally attched with length measuring apparatus and thickness increasing device.
The unit is of reliable performance and high production efficiency.
Equipment List:
Mould 1 set
Vacuum Water Tank 1 unit
Water Cooling Tank 1 unit
Haul-off Machine 1 unit

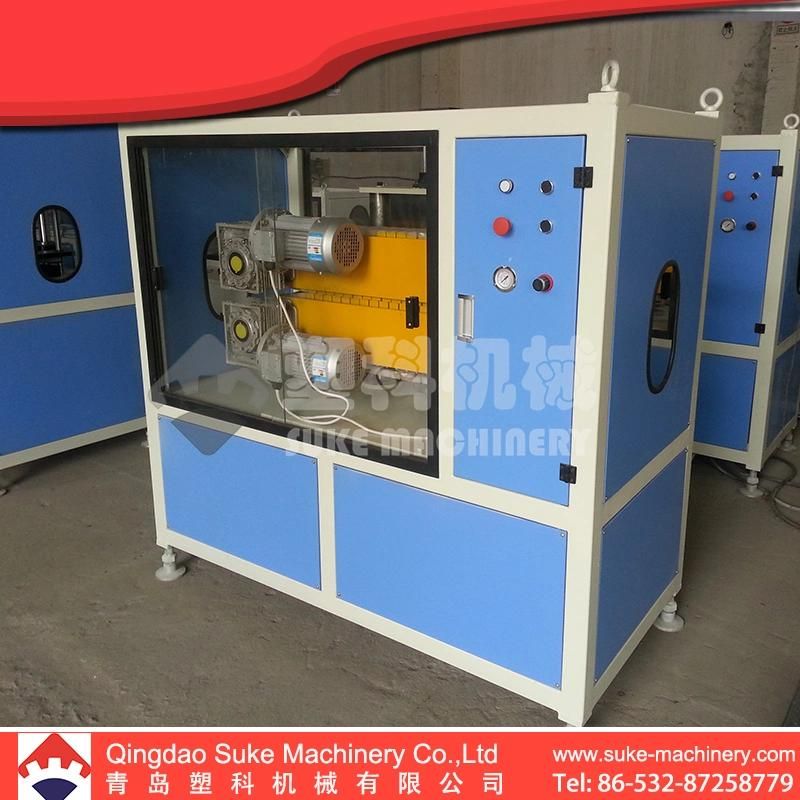

Cutting Machine 1 unit
Stacker 1 unit
Optional Auxiliary Machine;
Crusher 1 unit
Mixer 1 unit
Pulverizer 1 unit
Air Compressor 1 unit
MACHINE TYPE
Machine Type | S J 65x30-63 | SJ90x33-160 | SJ120x33-400 |
| Extruder size | SJ65X30 SJ25X25 | SJ90 × 30 SJ25 × 25 | SJ120 × 30 SJ25 × 25 |
| diameter( mm ) | 16-63mm | 75- 160mm | 110- 400mm |
| output( kg/h ) | 120 | 200 | 400 |
| Total powder( KW ) | 90 | 130 | 220 |
