Bottle Making Machine Plastic Bottle Blowing Mould Machine with CE

Taizhou Jiansheng Machine Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Bottle Liter：0.2-2L
  • Bottle Material：Pet
  • Machine Cavity：2
  • Machine Output：1800-2000PCS,H
  • Raw Material：Pet

Base Info

  • Model NO.：JS2000
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE
  • Transport Package：Wooden Box
  • Specification：CE SGS
  • Trademark：JS
  • Origin：Taizhou City Zhejiang Provice
  • HS Code：84773090
  • Production Capacity：1800-2000PCS,H

Description

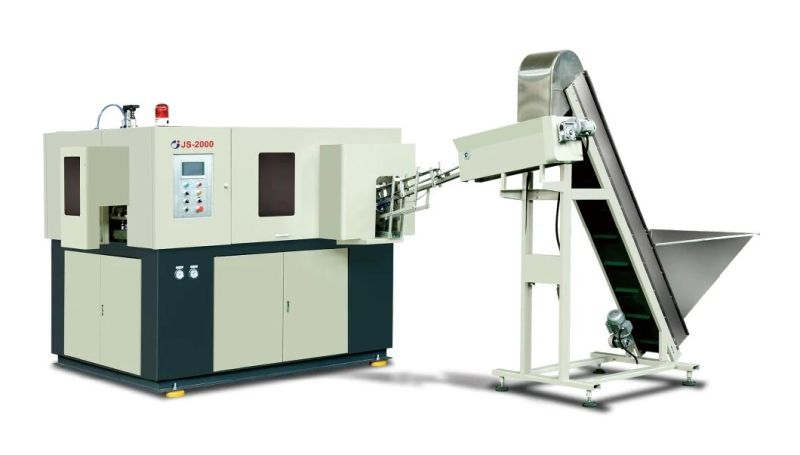

Bottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle blowing machine JS-2000 is one specialty blows makes PET to model the bottle two step completely automatic to blow the bottle equipment, may blow system 2L most greatly, is suitable in blows the system carbonic acid beverage bottle, the mineral spring thermos, the agricultural medicine bottle, the cosmetics bottle and so on, this machine serviceability is broad, the price can be reliable, the stability is good, the security is good.

MACHINE PROPERTIES:
1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .

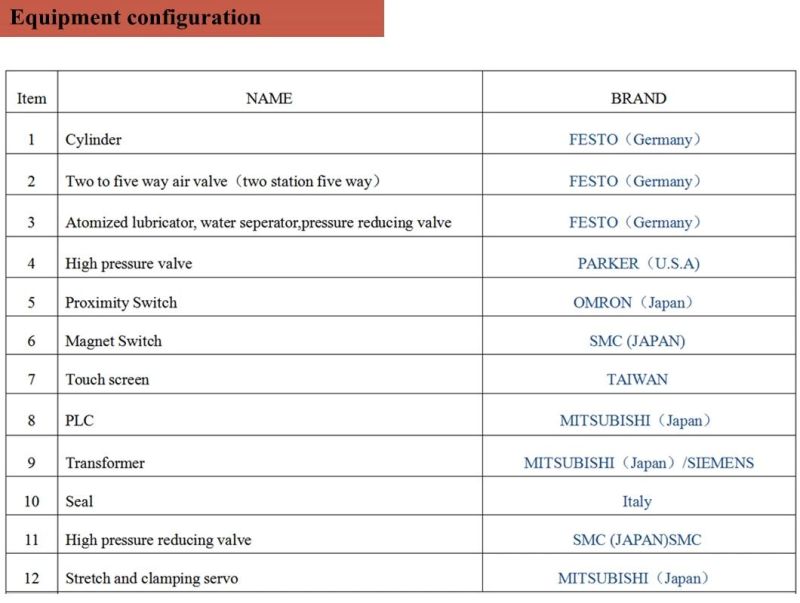

2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL UNIT IS COMPACT AND SOUND.
4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.

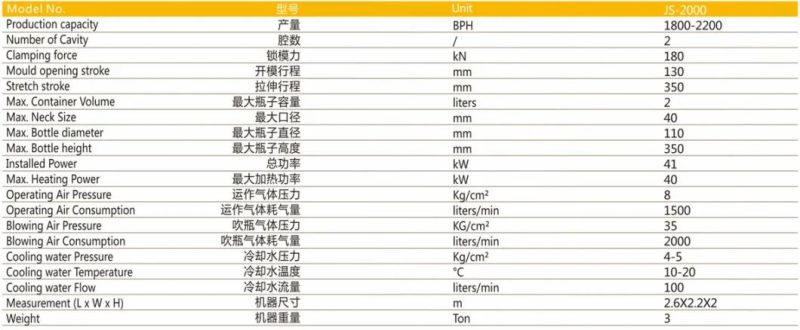

5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .Bottle Making Machine Plastic Bottle Blowing Mould Machine with CETechnical ReferenceMachine model JS2000JS2000HJS2000BJS4000JS4000HJS6000Pcs/hr 200012001400-1800400022006000Bottle VolumeL0.2-20.2-21-50.2-20.2-20.1-0.7Preform inner diamterMM15-4015-405515-4015-4015-40Max.bottle diameterMM20-10520-9518020-10520-9520-70Max.bottle heightMM350350350350350280CavityPC222446Main machine sizeM2.8*1.8*2.22.8*1.8*2.22.6*2.25*2.43.8*2.3*2.23.8*2.3*2.23.8*2.3*2.2WeightT3.03.03.3444

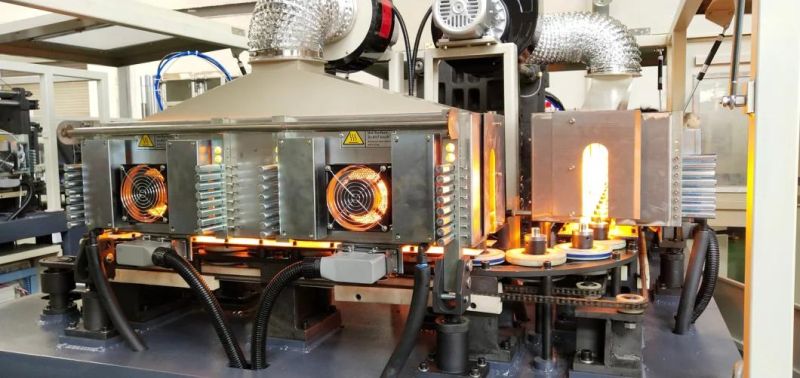

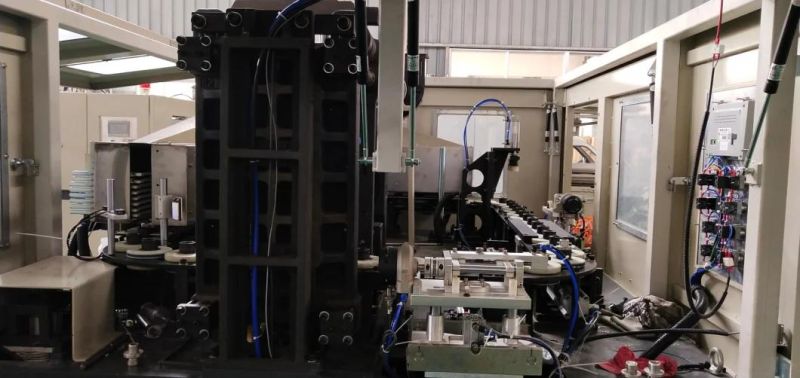

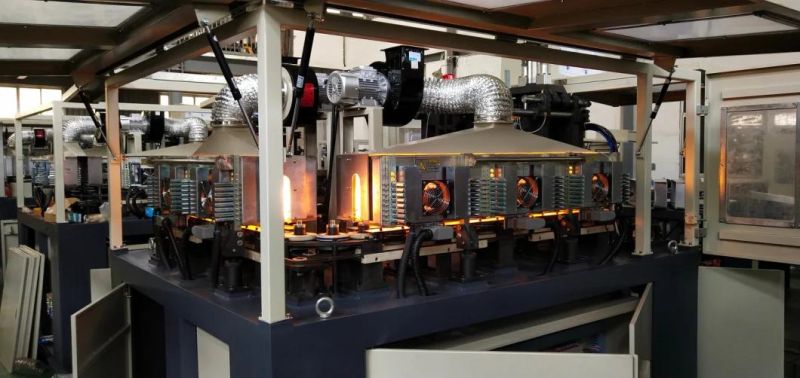

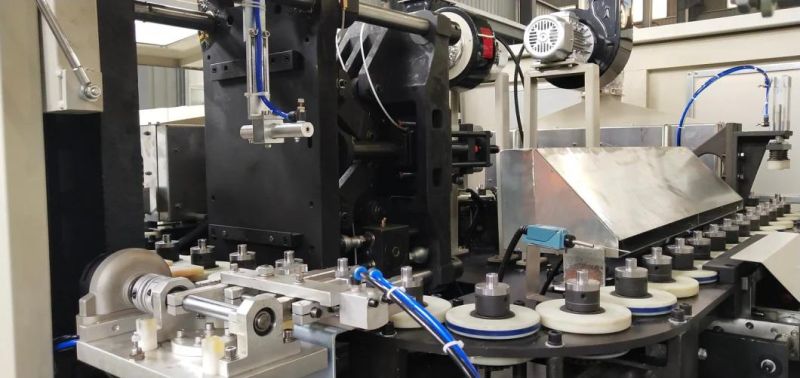

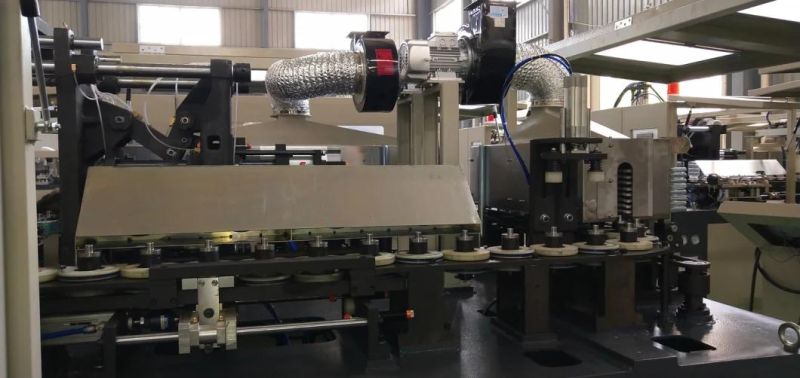

Internal details of the MachineBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CE

Bottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CEBottle Making Machine Plastic Bottle Blowing Mould Machine with CE
