• Model NO.：PU20J-1Y
• Transport Package：Plywood Box
• Specification：1800*1500*2500mm
• Trademark：ZCE
• Origin：China
• HS Code：8477800000
• Production Capacity：50,Month

Basic Info.

Model NO. PU20J-1Y Transport Package Plywood Box Specification 1800*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

ZCE specialized in doing Low Pressure Polyurethane foam machine , Pu roller making machine, Polyurethane wheel and castor making machine ,Polyurethane elastomer machine , MDI/TDI/NDI Polyurethane machine , Polyurethane injection machine , Polyurethane two components pouring machine ,Three components polyurethane pouring machine .  Polyurethane casting machine . PU machine,Polyurethane roll machine,Resin Casting Machine

Technical parameters

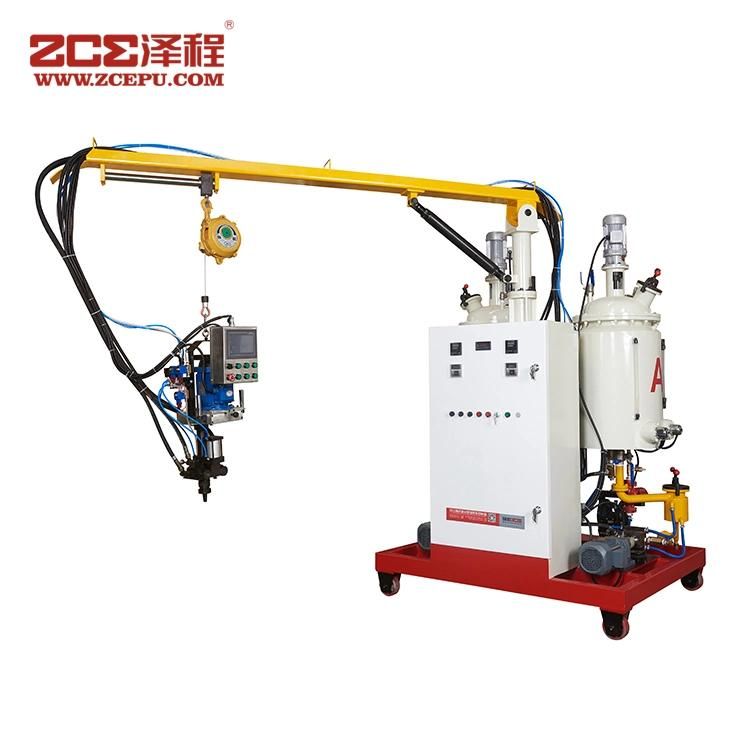

PU polyurethane rigid foam machine
Low pressure PU foam
Mixing ratio adjustable
CE approved  ISO approved
Making sandwich laminate panel , sandwich plate , laminate panel , decoration material




Functions and features

1. Intelligent digital display meter, with temperature error: ≤±1ºC.
2. High-temperature resistant low-speed high-precision metering pump; accurate matching, flexible adjustment and measurement accuracy error: ≤±0.5%.
3. Special mixing device: rational design, reliable performance, patented mixing head, uniform mixing,; the ratio of graded
products is completely guaranteed.
4. Computer is used to control amount, automatic cleaning and air impact, with stable performance and strong operability
Low Pressure Polyurethane PU Foam Equipment Rigid Foam.PU Polyurethane Spray Foam Insulation Machine




Item/model	PU20J-1T	PU20J-2T	PU20J-3T
Mixing ratio (A:B)	A:B=1:1	A:B=1:1	A:B=1:1
Total discharge(Kg/min)	1-5	3-12	10-30
Machine head speed(r/min)	4000-6000	4000-6000	4000-6000
External dimension(length*width*height(mm)	1700*1300*2400	1700*1300*2400	1700*1300*2400
Total power(kw)	8	9	9
Weight (kg)	1000	1000	1300

Output : 5~20g/min

1. Three-phase AC 380V + zero line + (ground) frequency: 50HZ total power 35KW wire 10 square line
2.  Air source: The outer diameter of the inlet pipe is 8mm and the pressure is 0.6~0.8MPa.
3. Three components mixing ratio: A: B = 80: 20

   Raw Chemical Components


Component Name	Mixing ratio	Temperature(ºC)	Viscosity (CPS)
A ( prepolymer)	100	60-100ºC	<2000
B (MOCA etc.)	20-35	80-125ºC	<100
C  Color paste	0.5-3	Room temperature	50-2000
