Taiwan High Speed Quality Single Layer PE Plastic Film Making Machine Price
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：High Speed
- Raw Material：PE
- Maximum Folding Width of Film：800mm
- Screw Diameter：50mm
- Automation：Automatic
Base Info
- Model NO.：SJ-50
- Computerized：Computerized
- Machine Weight：Depends on The Size
- Certification：CE, ISO9001:2008
- Material：PE HDPE LDPE LLDPE
- Film Finish Size：Max. Layflat Width 600-800 mm
- Die Head：Rotary Die
- Winder：Double Winder or Single Winder
- Application：for Making The Vest Type Bag ,Flat Bag
- Screw L/D Ratio：Screw 45 or 50 or 55, 30:1
- Transport Package：Simple Packing
- Specification：CE, ISO
- Trademark：YUNBANG
- Origin：China
- HS Code：84773000
- Production Capacity：Kg,H
Description
Characteristic
- main motor and take-up motor are controlled by inverter . Save 30% energy
- with lifting traction.
- with 2nd traction
- by pneumatic cylinder system to adjust the gap of take-up rubber roller and take up steel roller
- equipped with A-FORM wooden board to make the gusset
- material of screw and barrel: 38CrMoAlA Polished with Nitrided Treatment
hardness of heat treatment: screw HV≥740, barrel HV≥900 depth of hardening:0.6-0.7mm
brittleness grade: ≤2 grade
- Gear box: Surface heat quenching and tempering/auto. Oil lubricated
- Die material: steel 45# Mu surface treatment of flow channel: hard chrome- plating
- Screw , 3-joint, die head part heating zone, ues Digital display temperature controller

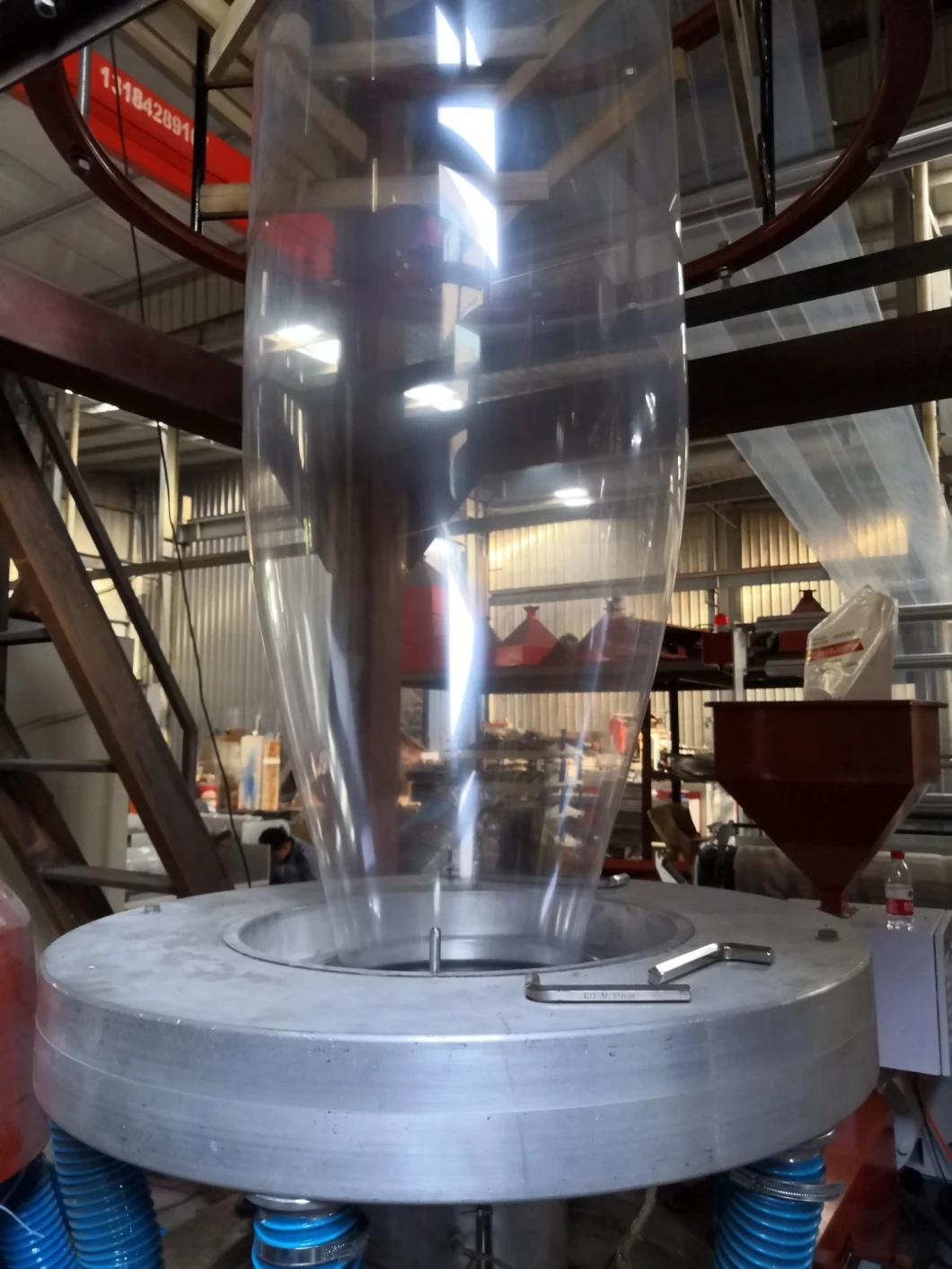

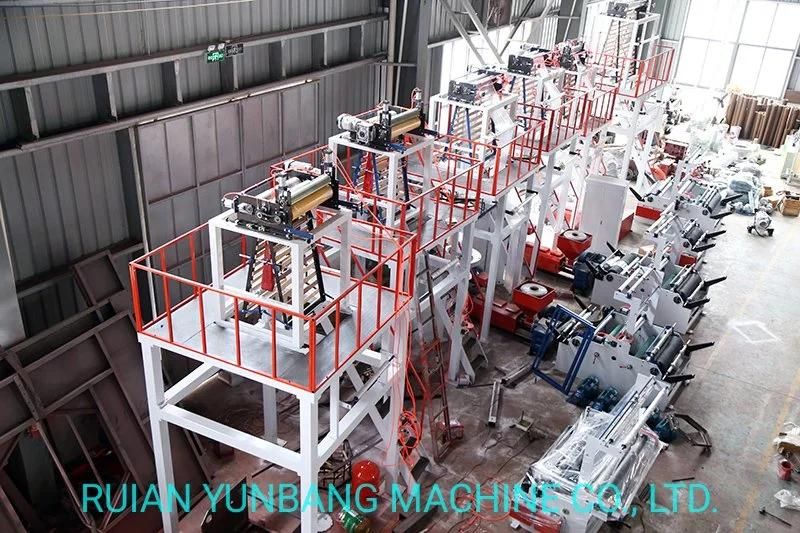

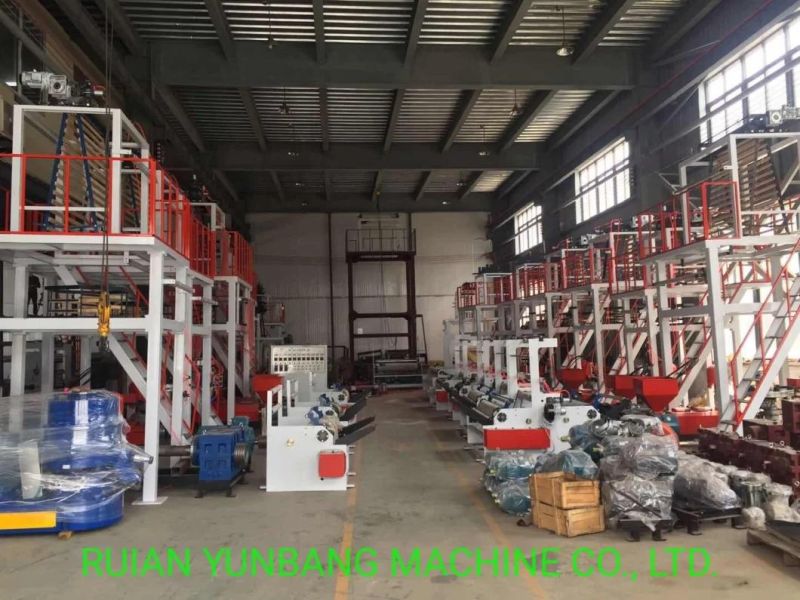

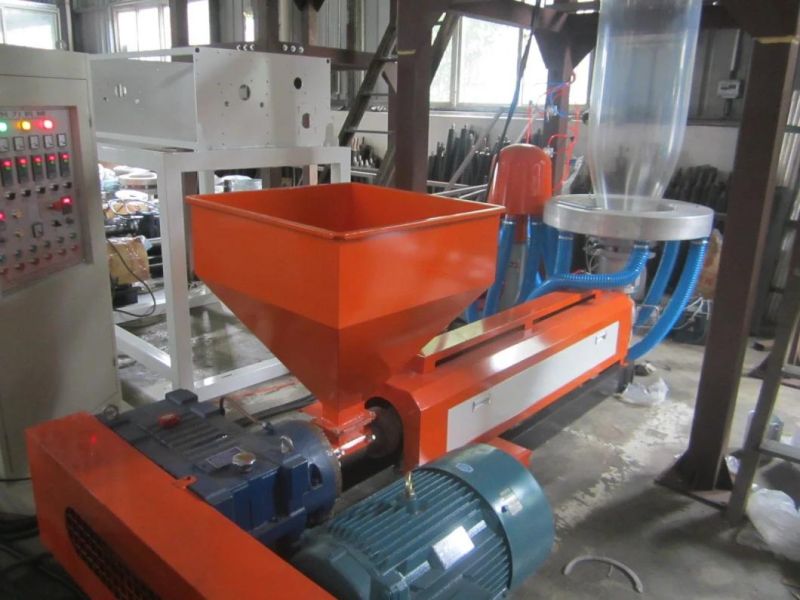

Machine Picture:
