• Model NO.：HSD110-630
• Customized：Customized
• Condition：New
• After-sales Service：Overseas Installation, Free Technical Supporting
• Application：Extrusion PE Thin Wall Pipe
• Pipe Diameter：From 110-630mm
• Raw Material：PE
• Transport Package：Standard Package
• Specification：26*3*3m
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477109000
• Production Capacity：50 Units,Year

Basic Info.

Model NO. HSD110-630 Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Application Extrusion PE Thin Wall Pipe Pipe Diameter From 110-630mm Raw Material PE Transport Package Standard Package Specification 26*3*3m Trademark HSD Origin Qingdao China HS Code 8477109000 Production Capacity 50 Units/Year

Product Description

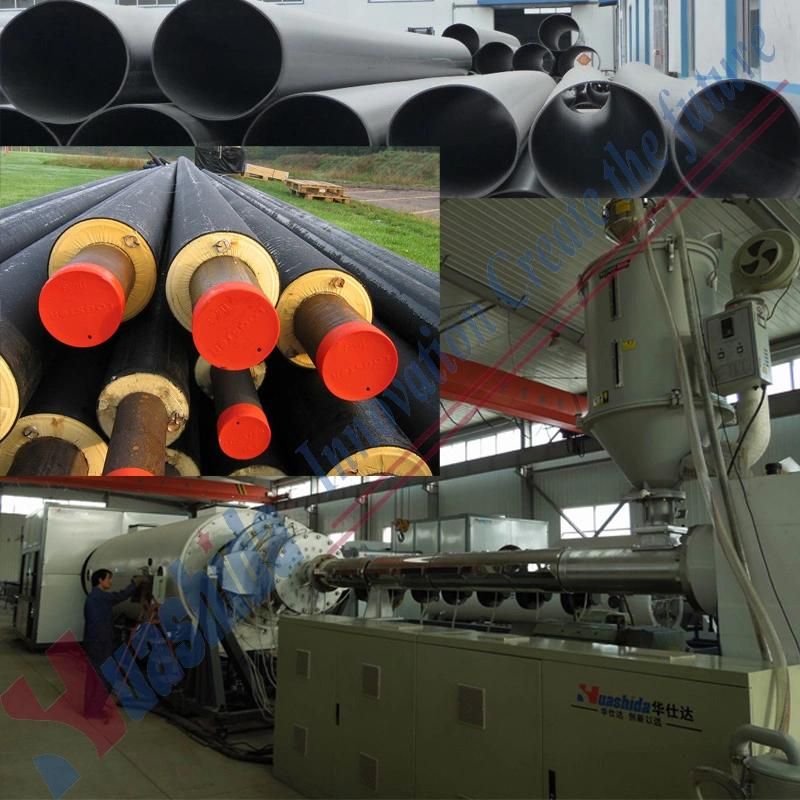

Thin Wall Plastic PE HDPE Pipe Extrusion Machine for Pre Insulated Piping Systems





---Pipe diameter range: 110-600mm, 365-760mm 500-960mm 855-1380mm 960-1680mm
---The extrusion line comprise equipment and devices as below:
    1set   Vacuum loader
    1set   Hopper dryer
    1set   High-efficiency single screw extruder

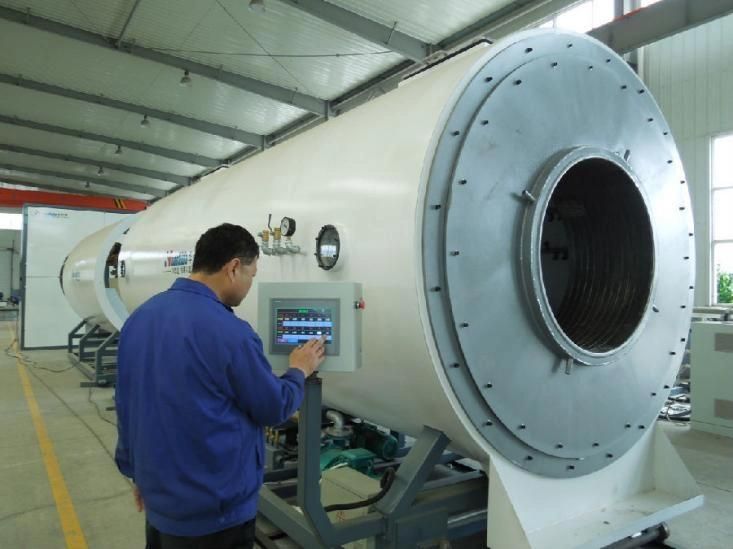

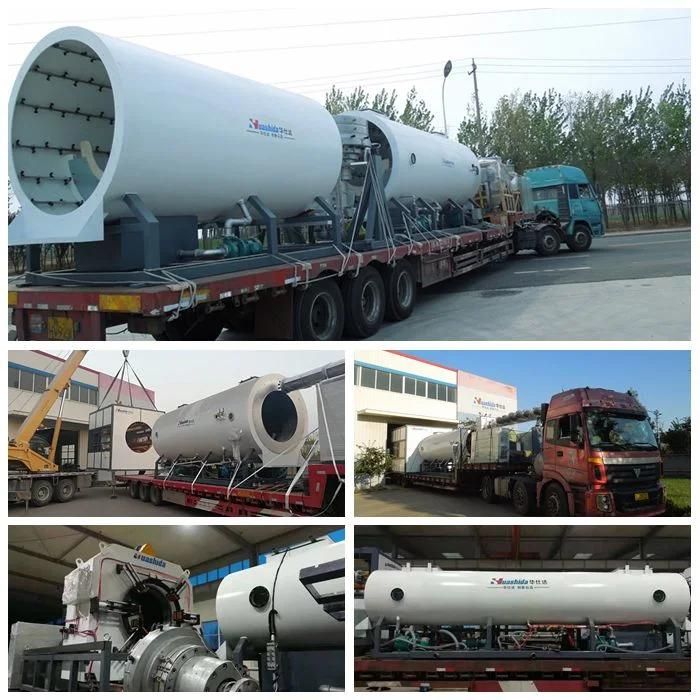

    1set   Vacuum calibration table
    1set   Water spraying tank
    1set    Hauling machine
    1set   Cutting machine
    1set   Stacker



Style	PE-365/760	PE-420/960	PE-850/1372	PE-960/1680
Main extruder	SJ-90/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ365-960mm	Φ 420-Φ 960 mm	Φ 850-Φ 1372 mm	Φ 960-Φ 1680mm
Capacity	550-700kg/h	550~700 kg/h	700~900 kg/h	800-1200kg/h
Installed power	360kw	380 kw	440 kw	580kw
Length	35m	36 m	40 m	48m

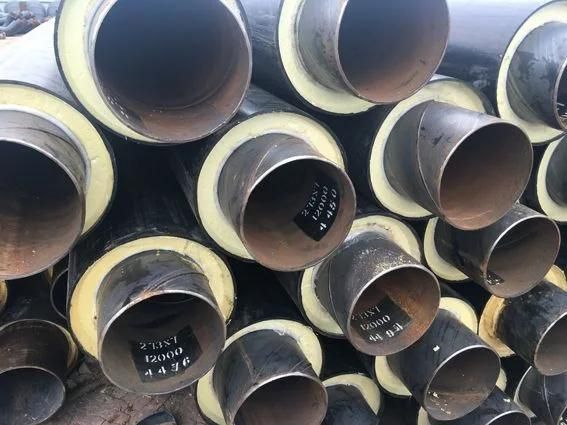

Pipe Usage
HDPE jacket pipe is an outer casing of thermally insulated pipe, which is widely used in central heating, oil, natural gas and other industrial areas.




Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is less waste pipe and material, no need for workers to crush waste material.
3.  High-efficiency. Take Diameter 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is a much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5.  No need to trim edge, once forming.

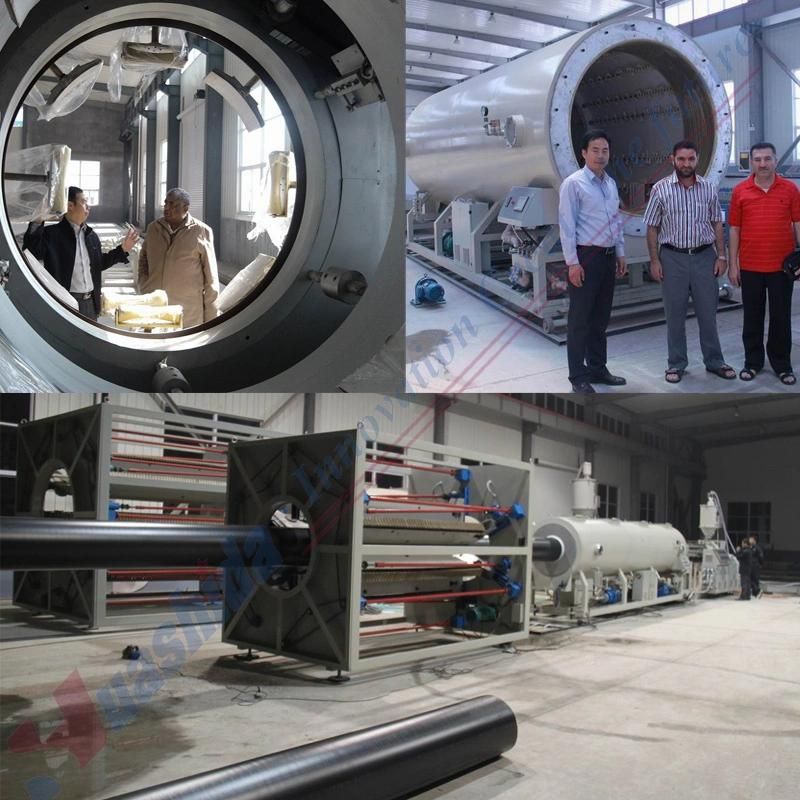

Main machine- High-efficiency single screw extruder

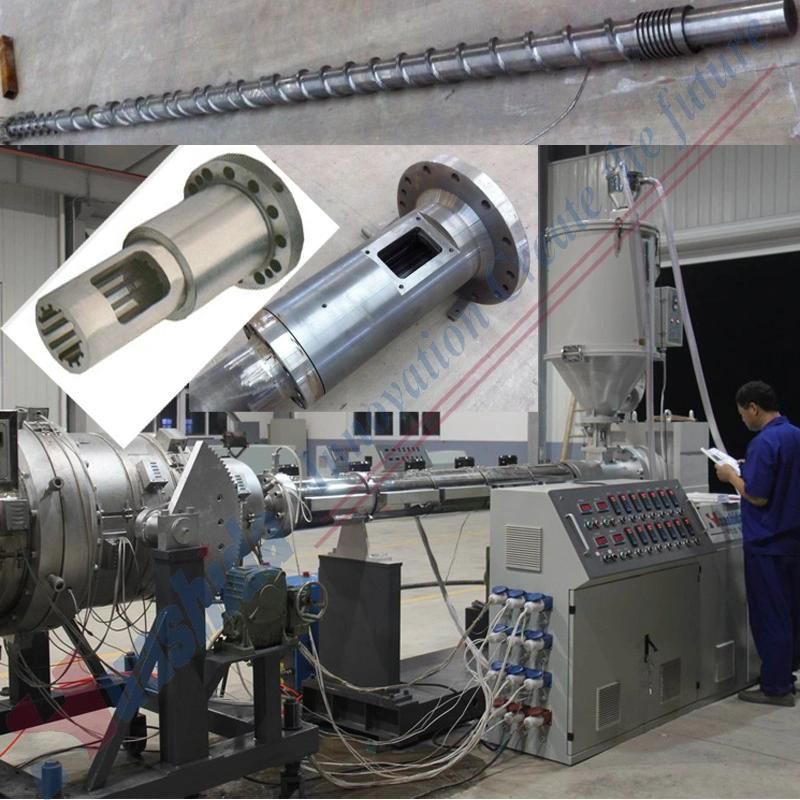

---Single screw is with barrier & mixing head; barrel is a new model with slotting (channel), Both make the security of good jellification, large output and stable performance.

Controlling system
The complete line could be controlled by PLC, with a good human-machine interface, all technical parameters could be set and indicated by touching the screen. The controlling system is designed according to the customer's requirement, to be with PLC, or without.

Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors



Our factory

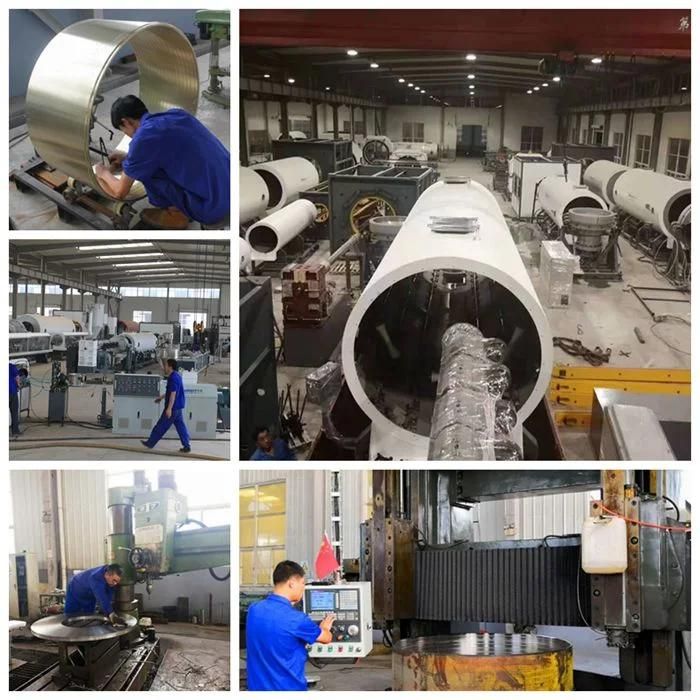

Workshop
