• Model NO.：WT1500
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Film Packing or Wooden Box Packing
• Specification：10*6*2.5m
• Trademark：WT
• Origin：China

Basic Info.

Model NO. WT1500 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Film Packing or Wooden Box Packing Specification 10*6*2.5m Trademark WT Origin China

Product Description

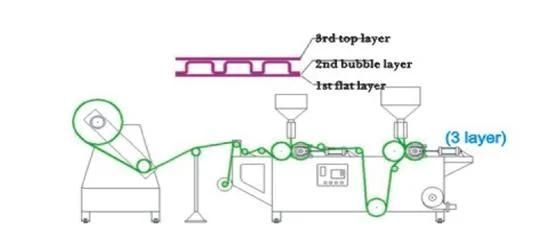

Bubble Wrap Manufacturing Machine Feature:

   This air crew adopts the disposable shaping craft. It is our factory that draws domestic and international
advanced technology extensively, through a large number of production practices in having ordinary
equipment originally, develop, design, can produced polyethylene compound bubble (cushion) membrane
in succession. Designs science, practical. Rational in structure of the machine.


Bubble Wrap Manufacturing Machine Application:

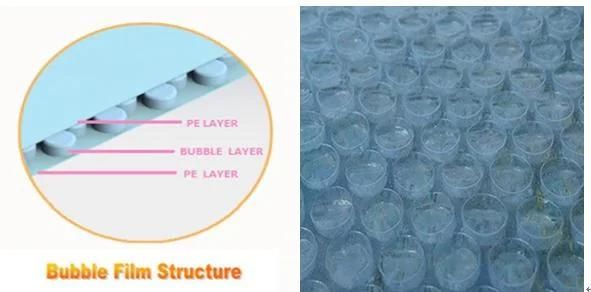

  The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.


Main Specification:


Model	WT-1500
Main and auxiliary extruder screw diameter	Φ75mm     Φ60mm
L/D	30:1
Main and auxiliary extruder electrical power	18.5KW  15KW
Width of production	1500 mm
Main bubble specification	10×3.6mm 6×3.2mm ( 25×10mm 30×10mm)
Output	80-120kg/h
Total installed capacity	112kw
Overall dimension	7000mm×4000mm×3150mm
Gross weight	6T
