• Model NO.：SJ90,25
• Condition：New
• Material：Stailness Steel
• Install Power：30kw
• Power Supply：380V, 50Hz or as Per Your Request
• Machine Name：PE Single Wall Corrugated Pipe Production Line
• Operator：2-3person ,Shift
• Line Speed：Max15m,Min
• Dimension：20mx2.3mx2.5m
• Capacity：100kg,Hr
• Machine Color：as Rquest
• Transport Package：PE Film and Wooden Package
• Specification：CE ISO9001
• Trademark：SUKE
• Origin：Qingdao, China
• HS Code：847780000
• Production Capacity：50sets,Year

Basic Info.

Model NO. SJ90/25 Condition New Material Stailness Steel Install Power 30kw Power Supply 380V, 50Hz or as Per Your Request Machine Name PE Single Wall Corrugated Pipe Production Line Operator 2-3person /Shift Line Speed Max15m/Min Dimension 20mx2.3mx2.5m Capacity 100kg/Hr Machine Color as Rquest Transport Package PE Film and Wooden Package Specification CE ISO9001 Trademark SUKE Origin Qingdao, China HS Code 847780000 Production Capacity 50sets/Year

Product Description

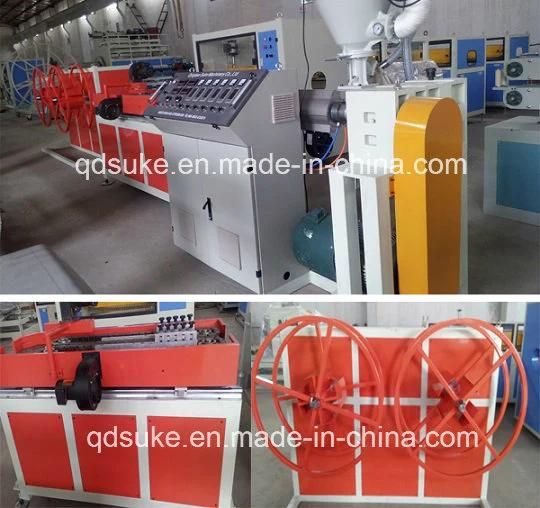

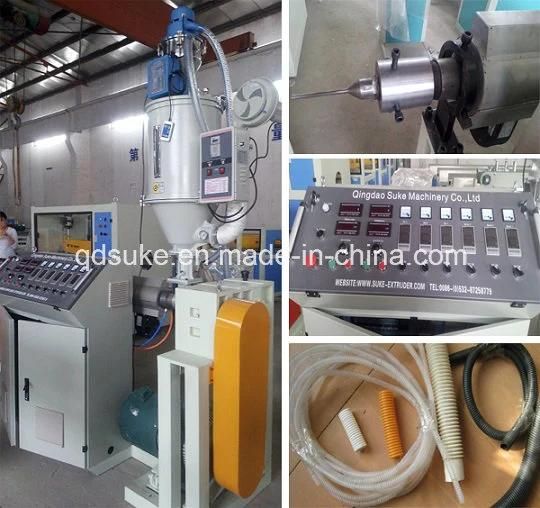

PE Single Wall Corrugated Pipe Extrusion Machine Line

This line consists of:
1. Single Screw Extruder 1 set
2. Die Head (8-25mm) 1 set
3. Molding Machine 1 set
4. Twin Position Pipe Winder 1 set
5. Electrical Cabinet 1 set

Applications:
Mainly used in wire and cable products threading pipe, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc.

Feature of this extrusion Line:
1. Single Screw Extruder
1) L/D: 30/1
2) Screw and Barrel Material: 38 CrMoAlA
3) Surface Treatment of Screw and Barrel: Nitriding and Polishing
4) Barrel Heating Mode: Cast-Aluminium Heating Circles
5) Barrel Cooling Mode: Air-Blower

2. Gearbox Reducer
1) Type: Hardening Gear Surface, Low Noise
2) Gear Material: 20CrMoTi

3. Die Head/Mould
1) Specification: 8-50mm
2) Surface Treatment: Exact Grinding Processing After Forging with Die Steel

4. Molding Machine
1) Molding Module: 39 Pairs or More
2) Molding Module Material: 45# Stainless Steel, Through Exact Processing
3) Cooling Mode: Air-Blower
4) Speed Control: Japan Omron Frequency Inverter

5. Twin Position Pipe Winder

6. Electrical Cabinet
1) Main Electrical Components: ABB, Omron, Schneider, Delix, Simens, RKC etc.



Modle	UNIT	JG-DBG90
Raw Materoal		PE
Extruder		Φ 90/25
Range of Pipe Dia.	mm	Φ 50-160
Water Consumption	L/H	4000
Water Pressure	Mpa	0.4-0.6
Numble of Mould Block	Pair	50
Whole Length of Mould Block	mm	5180
Move Speed of Mould Block	m/min	1-12
Dimension (L × W × H)	m	18× 1.35× 1.7
Total Weight (Approx)	T	6

If you want more details about this Single Wall Corrugated PE Pipe Production Line, please contact us.
