• Model NO.：SJ
• Machine Weight：Depend on Machine Size
• Certification：CE
• Film Type：LDPE, HDPE
• Machine Name：Film Blowing Machine
• Certificate：Ce,SGS
• Ship：by Sea
• Transport Package：Film Packing
• Specification：CE, SGS
• Trademark：BINHAI
• Origin：Ruian City, Zhejiang, China
• HS Code：8477309000
• Production Capacity：230 Sets,Year

LDPE Film Blowing Machinehttps://youtu.be/sj0X0LM8Bzc Water melt Film Blowing machinehttps://youtu.be/xMjVDsnikEM3 Meter Single screw Film Blowing machinehttps://youtu.be/i8sF06INOGYABC film blowing machinehttps://youtu.be/gwe-JvruTikFour Lines T shirt bag machine (Cold cutting)https://youtu.be/Kzt0U3c50uQTwo Lines t shirt bag machine (Heat cut)https://youtu.be/FeOV_8cuOJ4OPP /PE Bag Making Machinehttps://youtu.be/P24YpQ5A0aM8 Colors Flexo Printing Machine https://youtu.be/PgjX400mqP8

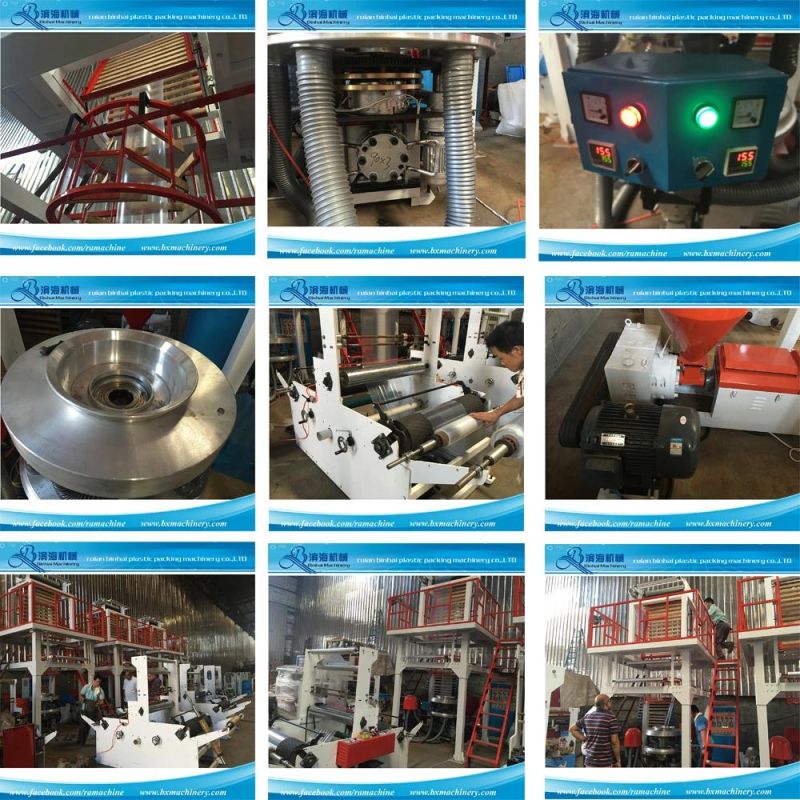

SJ series Rotary head film blowing machines

Characteristics:

It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.


Optional equipment:

1) auto loader
2) embossing roller
3) film surface treater
4) die rotary device
5) air compressor
6) mechanics screen changer
7) up and down




Model	SJ50	SJ55	SJ60	SJ65
Screw Diameter	50mm	55mm	65mm	65mm
Screw Ratio(L/D)	28: 1	28: 1	28: 1	28: 1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	11Kw	15Kw	22Kw	22Kw
Max Output	30-35	40-45	50-55	60-65
Max. Folding Width of Film	600mm	800mm	1000mm	1200mm
Die head	Φ 60, φ 120	Φ 80, φ 150	Φ 120, φ 200	Φ 150, φ 250
Single-sided Thickness of Film	0.008-0.08mm	0.008-0.08mm	0.008-0.08mm	0.008-0.08mm
Total Power	22Kw	26Kw	30Kw	36Kw
Weight of Machine	2T	2.3T	2.6T	3T
Overall Dimensions	4000 x 1800 x 4600mm	4200 x 2000 x 4900mm	4600 x 2300 x 5600mm	4800 x 2500 x 5800mm

Making Plastic Bags need 2-3 sets machine , If don't need color, 2 sets .

One Film Blowing Machine :

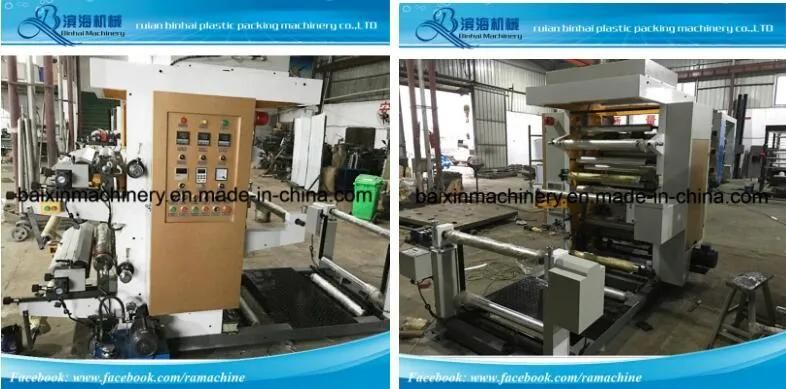

Two : Flexo Printing Machine : ( If your bags is blank , not need this machine ):
we also have Printing machine online with Film blowing machine .

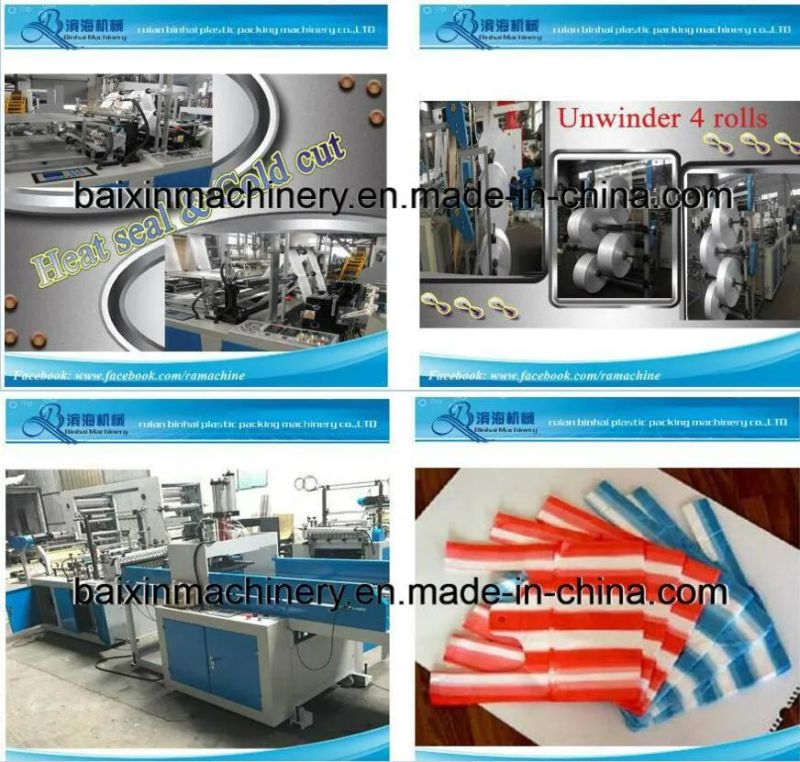

Three: Bag Making Machine :
( we have many different kind machines to make different bags )











shipping & Package




The End , thanks for your reading .
