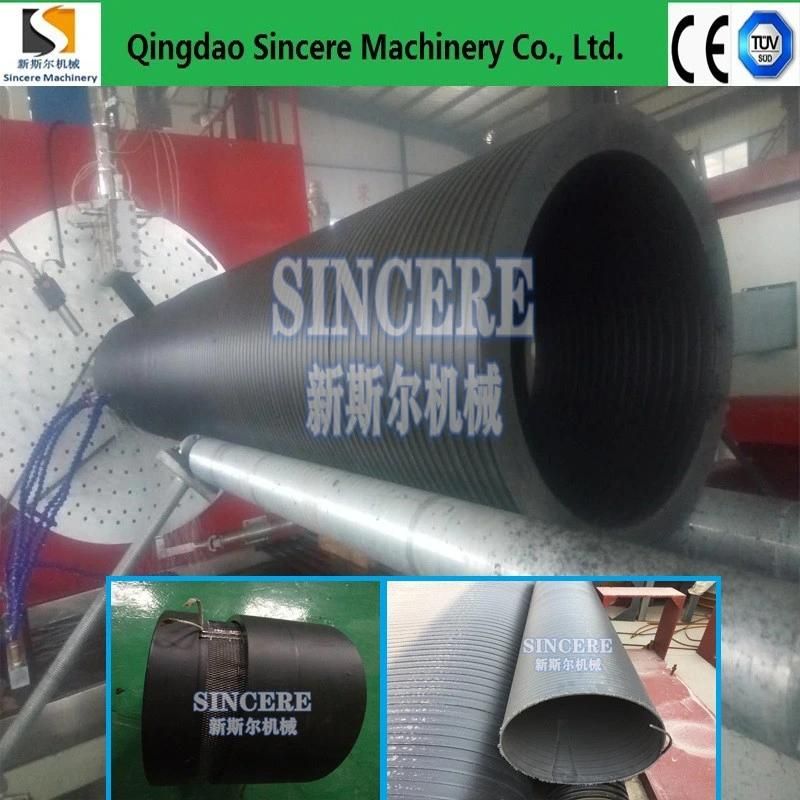

Double Hollowness Wall Spiral Winding PE Drainage Pipe Extrusion Line

Qingdao Sincere Machinery Co., Ltd.
  • Warranty：18 Months
  • Product Type：HDPE Double Profiled Wall Spiral Winding Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, TUV

Base Info

  • Model NO.：SMSG1200, SMSG1800, SMSG2200, SMSG3000, 4000
  • Customized：Customized
  • Condition：New, Under The Order
  • After-sales Service：Sincere Supply Installationa and Debug Service
  • Spiral Pipe Types：Spiral, Profiled Wall, Corrugated, Prolfied Ribbed
  • Delivery Conditions：Fob CIF CIP
  • Electrical Appliances：ABB, Siemense, Omron, Carlo, Rkc
  • Prepayments：30%
  • Technical Support：Permanent Technical Support
  • Pipe Machine Output：200-1500kg,H
  • HDPE Drain Pipe Diameters：200-800, 600-1600, 800-2400, 1400-3000,4000mm
  • Production Period：60-90 Working Days
  • HDPE Pipe Use：Waste Water Drainage, Rainwater Drainage
  • Spiral Pipe Use：Sewage Pipe, Inspection Wells Pipe, Storage Tank
  • Plastic Winding Pipe Use：Water Tanks, Cable Duct Tubes, Drainage Pipes
  • HDPE Pipe Line Consists 3-1：Mixer, Extruders, Extrusion Die Mould and Calibrat
  • HDPE Pipe Line Consists 3-2：Water Tanks, Haul-off, Spiral Winding Machine
  • Spiral Pipe Production Line 3-3：Shredder, Crusher, Recycling Pelletizing Machine
  • Optional Devices for Spiral Pipe Machine：Gravimetric Metering System, Laser Printer
  • Transport Package：Stretch Film and Wooden Pallet, Wooden Packing
  • Specification：DN200-DN4000
  • Trademark：Sincere Machinery
  • Origin：Qingdao, China
  • HS Code：8477209000
  • Production Capacity：100 Sets Year

Description

SMSG-40002400-4000mm600kw
ModelPipe Dia.(mm)Extruder modelProduction speed m/hMax.out put kg/hTotal power kwOverall dimension mmSMSG-800200-800mmSJ-75
SJ-451-3020018017000*8000*4000SMSG-1600600-1600mmSJ-90
SJ-651-2050022020000*10000*4800SMSG-2000800-1200mmSJ-120
SJ-901-1870026022000*12000*5000SMSG-30001500-3000mmSJ-150
SJ-901-10100031025000*14000*5300SMSG-4000 2000-4000mmSJ-150
SJ-1000.5-7200031040000*14000*5300
Part 3: Solid wall winding pipe extrusion production line.

The solid wall welded HDPE pipe, diameters from 200mm to 4000mm, wall thickness adjustable.
Solid-wall spiral winding pipes are using for Electric melting fusion pipe fittings, electrical cable protective/conduit pipes, thermal pipe casing shells and so on.

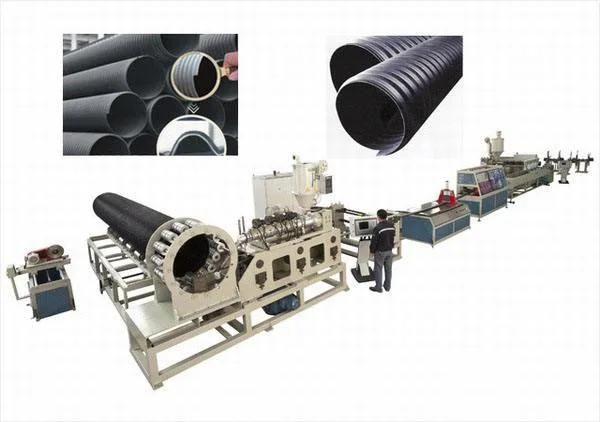

Double Hollowness Wall Spiral Winding PE Drainage Pipe Extrusion Line
Part 4: Steel Reinforced hollowness wall HDPE winding pipe extrusion line

Double Hollowness Wall Spiral Winding PE Drainage Pipe Extrusion Line
Steel belt straightening machine and heating device, steel belt is coated with polyethylene. Product has steel's rigidity and Anti-corrosion properties of plastics.
