PP/PE/PS/ABS Single Layer /Multi-Layer Sheet/Plate Extrusion Line (SJ120)

Qingdao Leader Machinery Co., Ltd.
  • Product Type：PP Board
  • Board Layers：Multilayer
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Sheet Extrusion Line Width：700--2200mm

Base Info

  • Model NO.：SJ90,30, 120,30, 150,30
  • Sheet Extrsion Line Thickness：0.5--30mm
  • Transport Package：Wooden Case or Other Moistureproof Packages
  • Specification：ISO9001-2000
  • Trademark：LEADER
  • Origin：Qingdao China
  • HS Code：8477209000
  • Production Capacity：100set,Year

Description

Basic Info.

Model NO. SJ90/30, 120/30, 150/30 Sheet Extrsion Line Thickness 0.5--30mm Transport Package Wooden Case or Other Moistureproof Packages Specification ISO9001-2000 Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 100set/Year

Product Description

PP/PE/PS/ABS Single Layer /Multi-Layer Sheet/Plate Extrusion Line (SJ120)
This line is specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
PP/PE/PS/ABS Single Layer /Multi-Layer Sheet/Plate Extrusion Line (SJ120)
PP/PE/PS/ABS Single Layer /Multi-Layer Sheet/Plate Extrusion Line (SJ120)
PP/PE/PS/ABS Single Layer /Multi-Layer Sheet/Plate Extrusion Line (SJ120)

Main technical data:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm

1. Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.

2.T -type die head: Suitable compression ratio to ensure uniform flow stability.

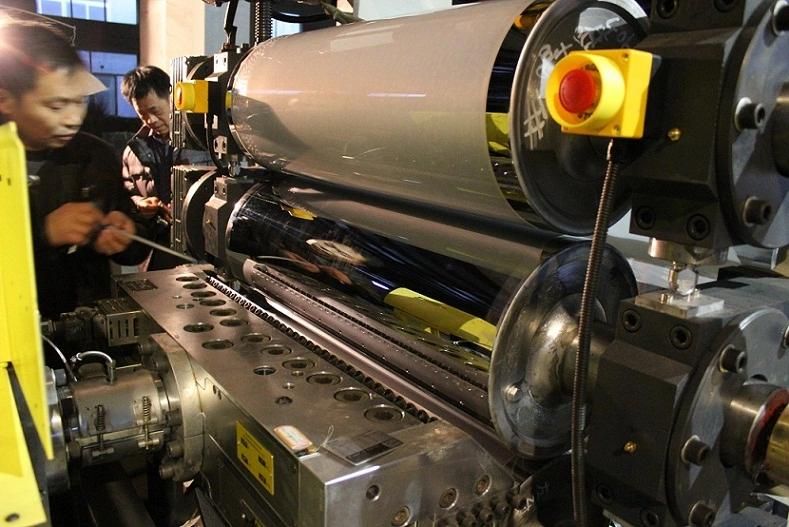

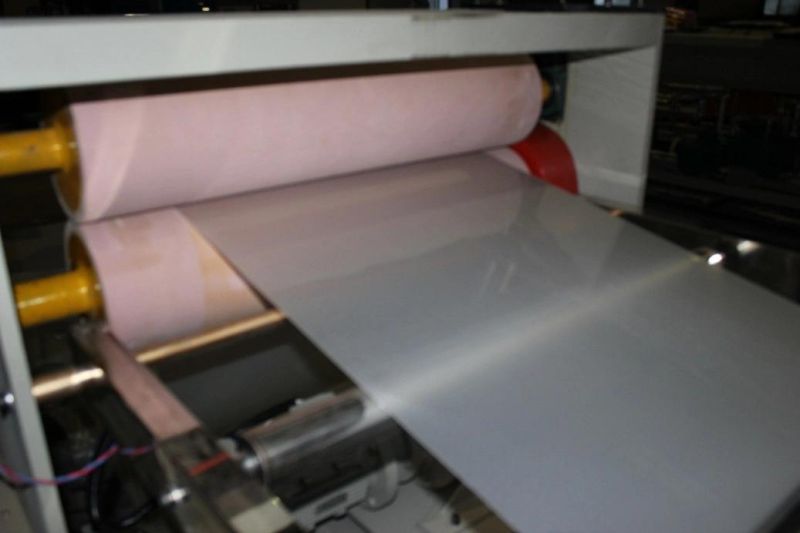

Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

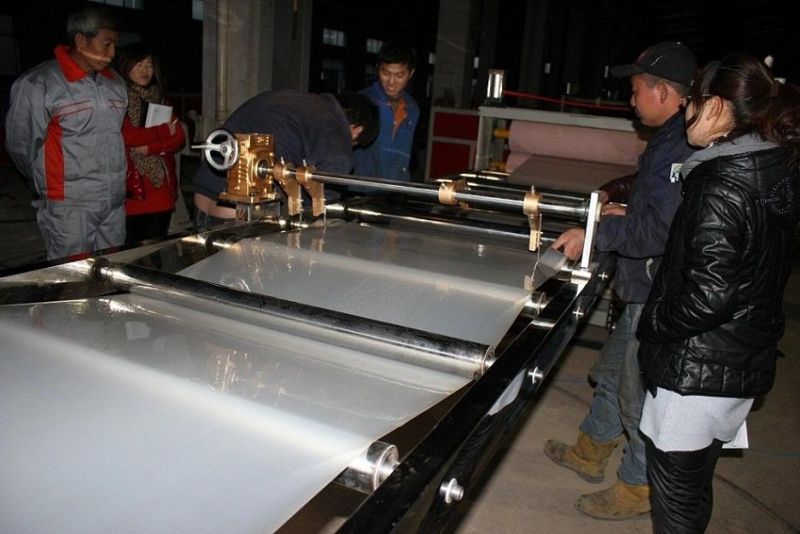

3.Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller

4.Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

5. Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
