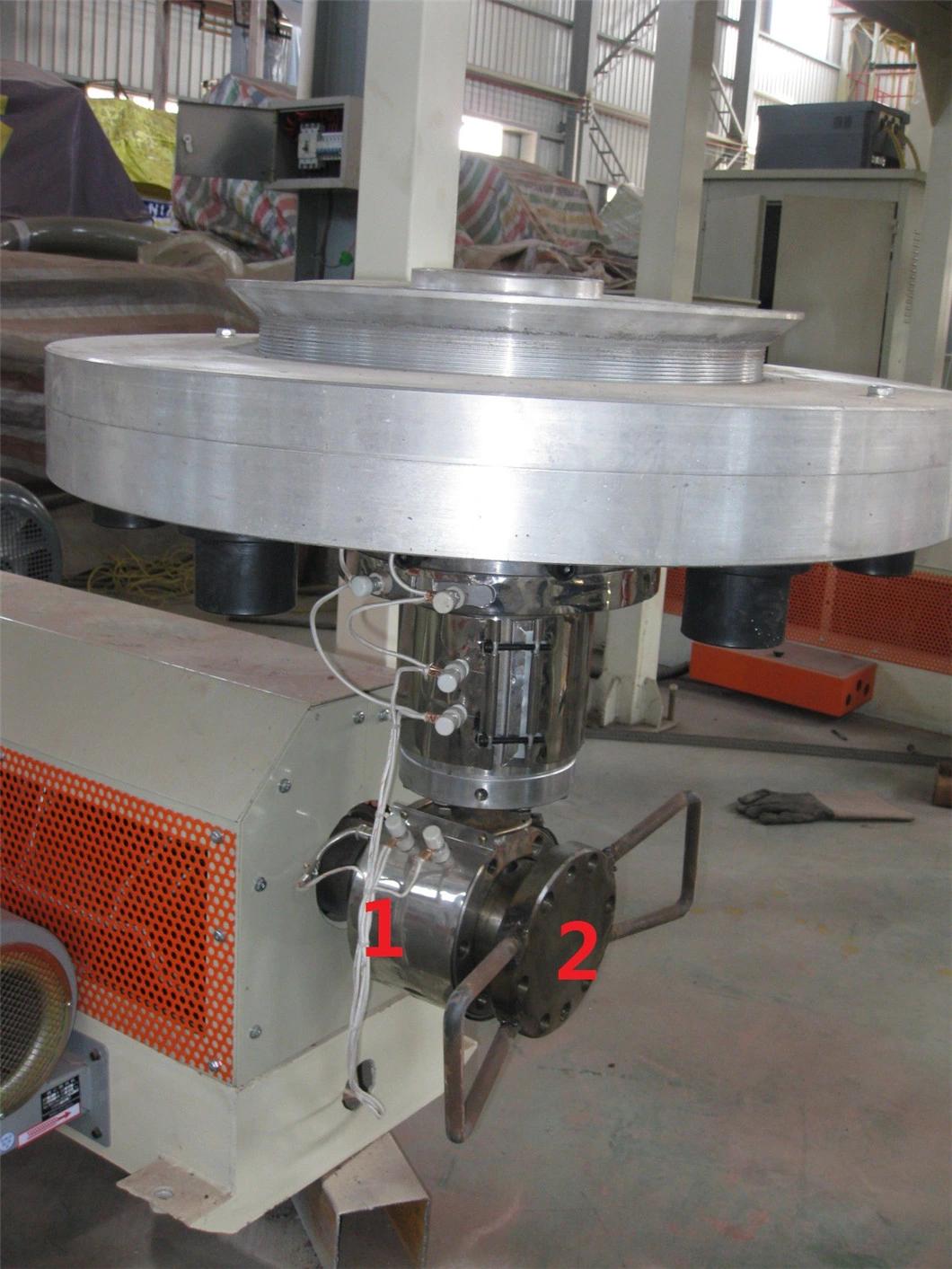

HDPE Lifting Frame Film Blowing Machine with Autoloader, mechanical Screen Changer
Zhejiang Zhuxin Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：65mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJ-A
- Certification：CE, ISO9001:2008
- Transport Package：Wrapping Film
- Specification：CE
- Trademark：Changyin
- Origin：China
- HS Code：84773090
- Production Capacity：1000sets,Year
Description
ModelSJ-A45 SJ-A50 SJ-A55 SJ- A65 Suitable material HDPE LDPE LLDPE Film width(mm) 100-500 300-600 400-800 600-1200 Film thickness(mm) HD 0.009-0.05 0.009-0.15 LD 0.02-0.15 0.03-0.15 Max.Extrusion output(kg/hr) HD 40 45 55 65 LD 45 50 60 70 Extruder Screw diameter(mm) 45 50 55 65 Screw L/D length 28:1/30:1 Screw material SACM-645/38CRMOALA Cylinder material SACM-645/38CRMOALA Cylinder cooling 180x2 250x2 370x2 550x2 Driving motor (kw) 7.5 11 15 22 Temperature control 3 3 3 4 Average power-consume(kw) 10 12 18 30 Type of die Die size HD 60/80 80/100 100/120 100/150 LD 100/120 120/150 180/200 220/ 250 Temperature control 3 Air ring 1 Air blower(kw) 1.5 2.2 3 4 Center steady stick 1 Take-up unit Roller width(mm) 165×650 165×850 165×1100 165×1400 Height adjustable type 800mm Take-up speed(m/min) 10-100 10-100 10-80 10-80 Take-up motor(kw) 0.75 1.1 1.1 1.5 Winding unit Type Surface friction type Winding motor(N.m) 10 10 10 16 Winding speed(m/min) 10-100 10-100 10-80 10-80 Cover dimension(m) 5.0×2.0×4.1 5.0×2.2×4.5 5.5×2.5×5.2 5.8×2.8×6.3
