• Model NO.：FTPEG-1000-2000
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Non-Automatic
• Computerized：Computerized
• Transport Package：Wooden Case, Wooden Block, Plastic Film
• Specification：FTPEG-1000-2000
• Trademark：Fangtai
• Origin：Ruian China
• HS Code：8477800000
• Production Capacity：20set,Month

Basic Info.

Model NO. FTPEG-1000-2000 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Non-Automatic Computerized Computerized Transport Package Wooden Case, Wooden Block, Plastic Film Specification FTPEG-1000-2000 Trademark Fangtai Origin Ruian China HS Code 8477800000 Production Capacity 20set/Month

Product Description

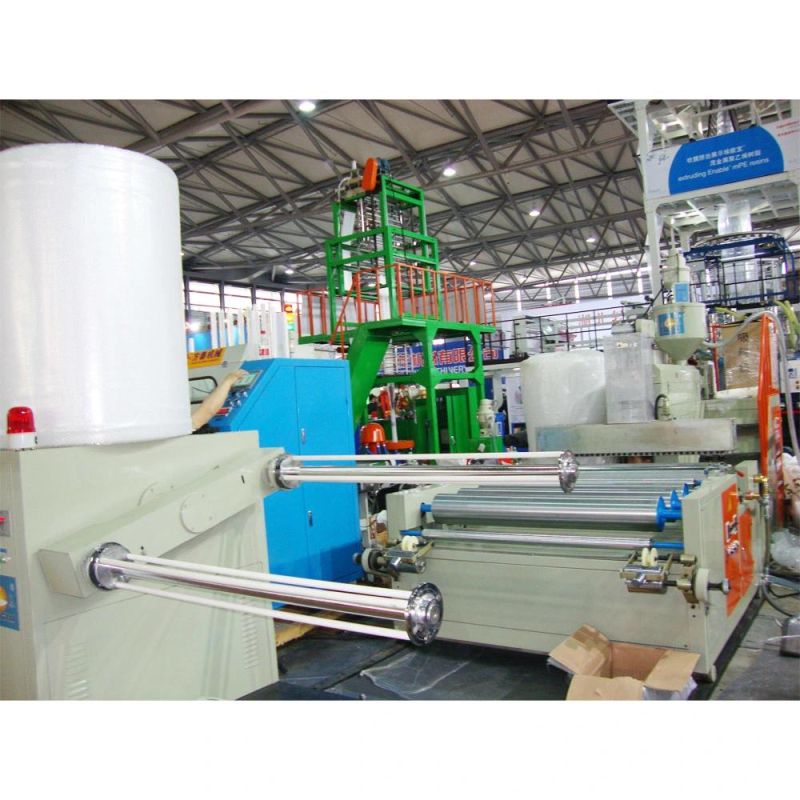

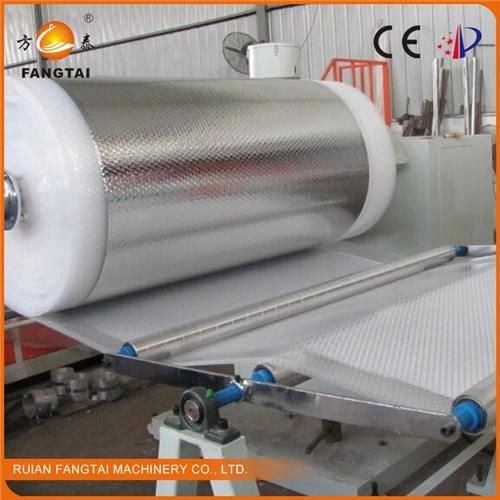

Fangtai Compound Polyethylene Bubble Film Making Machine

Bubble film machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance. Polyethylene air-cushion film (also called polyethylene bubble film), which is divided into two kind: ordinary polyethylene air-cushion film and composite polyethylene air-cushion film, is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency, etc. So it has been widely used for packing, household wares, post parcel, bicycle, polyurethane furniture, etc.
Use one exturder can produce two layer, use two extruders can produce three layer.
Add one rewinder part, can compound one layer EPE or aluminum foil, add two rewinder part can compound two layer EPE or Aluminum foil.

Optional Equipments:

Rewinder I (produce four layer)
Rewinder I + Rewinder II (produce five layer)
Auto loader
Auto dryer
Electric screen net changer
Air shaft roller (if you want to use paper tube)
Bubble roller (different bubble size from the one install in the machine)




Main Technical Variables:

Model	FTPEG-1000	FTPEG-1200	FTPEG-1500	FTPEG-1800	FTPEG-2000	FTPEG-2500	FTPEG-3000
Main and minor Screw Diameter	φ60mm ,φ50mm	φ65mm ,φ55mm	φ75mm ,φ60mm	φ85mm ,φ65mm	φ95mm , φ75mm	φ110mm , φ80mm	φ120mm , φ85mm
Main Motor	15kw 7.5kw	15kw 11kw	18.5kw 15kw	30kw 15kw	37kw 18.5kw	45kw 22kw	55kw 30kw
Film Width	600mm	1200mm	1500mm	1800mm	2000mm	2500mm	3000mm
Output	80kg/h	100kg/h	140kg/h	160kg/h	180kg/h	220kg/h	250kg/h
Total Power	86 kw	95 kw	112 kw	141 kw	158 kw	225 kw	255 kw
L/D	30:1	30:1	30:1	30:1	30:1	30:1
Linear Speed	1000 m/h	1000 m/h	1000 m/h	900 m/h	800m/h	700m/h	700m/h
