• Model NO.：3R-420
• Customized：Customized
• Condition：New
• Sheet Width：300-7000mm
• Thickness：0.2-45mm
• Color：by Buyer′s Opinion
• Extrusion System：Mono-Layer or Multi-Layer
• Raw Material：ABS,PE, PP, PS, Pet,PC, PMMA
• Delivery Time：30month
• Output：80-1560kg,H
• Transport Package：Wooden Cases and Pallets
• Specification：LxH: 4x3m
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. 3R-420 Customized Customized Condition New Sheet Width 300-7000mm Thickness 0.2-45mm Color by Buyer′s Opinion Extrusion System Mono-Layer or Multi-Layer Raw Material ABS/PE/ PP/ PS/ Pet/PC/ PMMA Delivery Time 30month Output 80-1560kg/H Transport Package Wooden Cases and Pallets Specification LxH: 4x3m Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 20 Sets/Year

Product Description

Three Rolls Calender of Plastic Sheets Extrusion Line

It consists of SBJZ-series plate &sheet special-purpose single screw extruder SJZ-series conical twin screw extruder Or SJ-series parallel twin screw extruder; equipped with auxiliary downstream accessories and moulds, it can produce: PP ,PS,HIPS,PE,ABS,EVA,PMMA,PC,PT,PVB,PVC and other board & sheet.

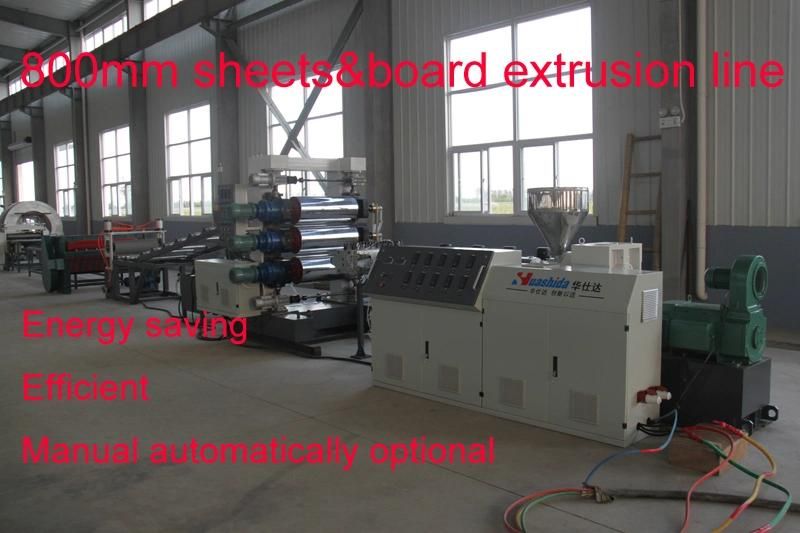

The machinery unit consists of extruder, Screen changing device, melt pump, T-die,3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.
others, The working principle is the 3 states of the hot-plastics at different temperatures: the pushing force of the screw change the physical stat from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.

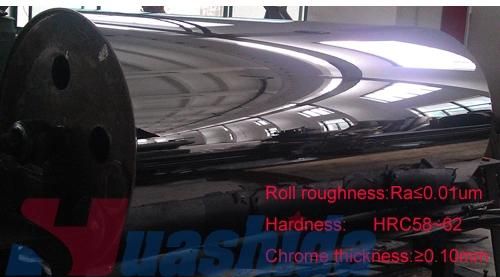

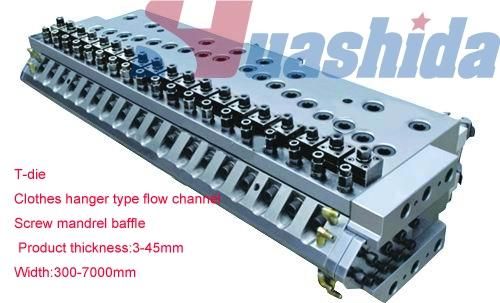

Features of the machinery unit: high grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life. Choice T-die the flowing passage is designed for easy flowing of thehout any detaining, and the product thickness is even, For the calender, large conical slot is designed, the cooling quality inside the roller is good, and the temperature synchronization,


PC/PP hollow cross-section plate. PVC transparent soft & hard plat & sheet. PVC foamed plate, PMMA/ABS co-extrusion bathing plate, inside chamber plate of the refrigerator and other multiple-layer composite co-extrusion plate & sheet size: width:300MM-700MM thickness0.2MM-45MM: output rate:80-1800KG./H. The machinery unit is the best solution for plate & sheet production.

(Modle)	(width)	Thickness(MM)	Seedtm/min)	Outputr(kg/h)
SBJZ-800	650	0.18-1.5	1-25	80-320
SBJZ -1000	800	0.2-2.0	1-20	150-430
SBJZ -1500	1350	1-10	0.5-10	150-450
SBJZ -2000	1850	2-15	0.5-8	300-550
SBJZ -2200	2000	1-10	0.4-3	420-820
SBJZ -3000	2850	2-8	0.2-3	500-1200
SBJZ -7000	6800	2-6	0.2-2	600-1560
