• PVC Ceiling Production Line：Ceiling Machine
• PVC Ceiling：Profile Production Line
• Inverter：ABB
• PVC Profile：PVC Extrusion
• Ceiling Machine：Ceiling Production Line
• PVC Ceiling Extrusion Line：PVC Ceiling Production Line
• PVC Window：Casement Profile
• PVC Sash：Sash Profile
• PVC Speed：4m,Min
• PVC Control：Automatic Control
• Price：Wholesale Price
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84778020
• Production Capacity：300kg,Hr

Basic Info.

PVC Ceiling Production Line Ceiling Machine PVC Ceiling Profile Production Line Inverter ABB PVC Profile PVC Extrusion Ceiling Machine Ceiling Production Line PVC Ceiling Extrusion Line PVC Ceiling Production Line PVC Window Casement Profile PVC Sash Sash Profile PVC Speed 4m/Min PVC Control Automatic Control Price Wholesale Price Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84778020 Production Capacity 300kg/Hr

Product Description

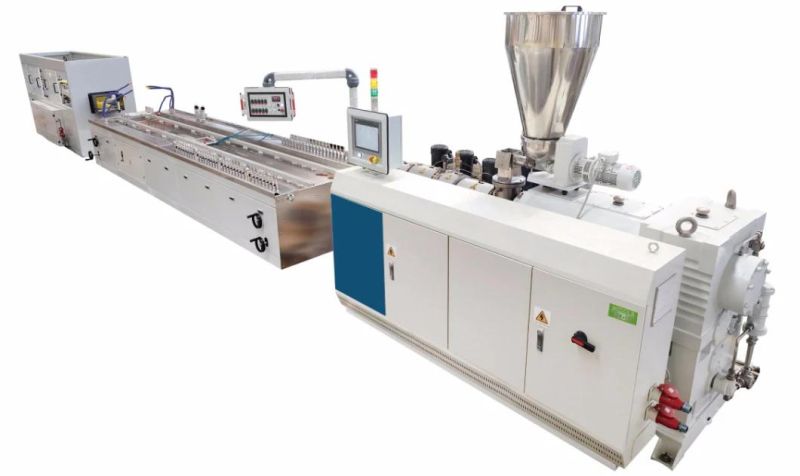

Plastic wood(WPC)- PVC-PE Window Profile/Ceiling board/Edge banding/Door panel/ Pipe Production Extrusion Machine

Through market combination and our technology innovation, Midtech pleased to provide
Energy saving (15% down),
High standard (Bimetallic & PLC Intelligence),
Reliable quality (vertical gearbox by SKF bearing)

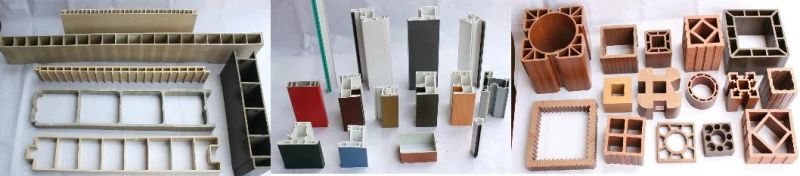

Extruder and whole set PVC profile, soft-hard co-extrusion profile, foam profile extrusion, multi layer co-extrusion, PE+ wood (WPC) solutions









Technical data

Model/data	Max width	Extruder model	Motor power	Max capacity
MT180	180mm	MT51/105	22kw	120kg/h
MT240	300mm	MT65/132	37kw	260kg/h
MT600	600mm	MT80/156	55kw	400kg/h
MT800	800mm	MT92/188	90/100kw	650kg/h

Work flow and detailed information:

Feeder	• To feed material into extruder;

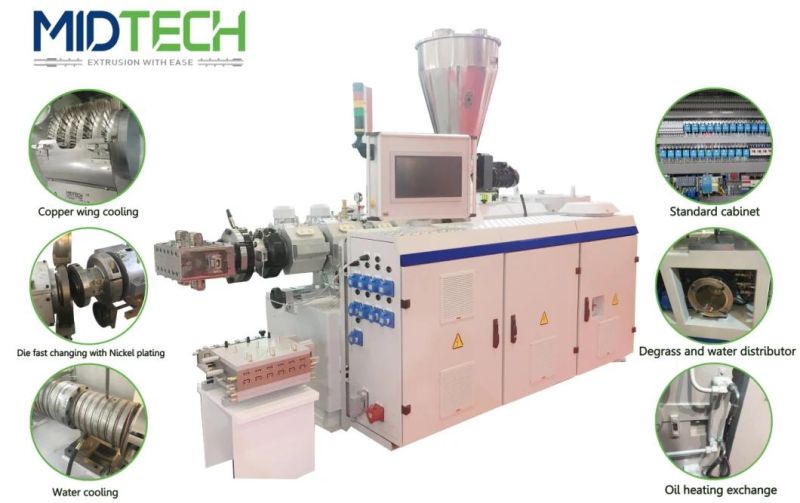

Extruder	•World famous brand electrical component: Siemens, Schneider, ABB etc;  • High torque gearbox with adopts NSK/SKF bearing;  • Siemens/WEG original motor achieved global after service;  • Bimetallic screw and barrel;  • Intelligent PLC controlling system with human-friendly interface.
Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile
Calibration table	• Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Hot stamping machine	• Decorative pattern and film protection of product surface

Why choose us
♦ Specified screw design and material application for high percentage CaCO3
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines: 18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru...
