• Model NO.：EK2612
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Machine Size：4900*4500*2100
• Machine Weight：19000 Kg
• Transport Package：Container
• Specification：ISO, CE
• Trademark：KCLKA
• Origin：Fujian, Jinjiang
• HS Code：84773090
• Production Capacity：25 Sets, Month

Basic Info.

Model NO. EK2612 Computerized Computerized Certification CE, ISO9001:2008 Machine Size 4900*4500*2100 Machine Weight 19000 Kg Transport Package Container Specification ISO, CE Trademark KCLKA Origin Fujian, Jinjiang HS Code 84773090 Production Capacity 25 Sets/ Month

Product Description

Item	unit	EK-2612
Work Station	Station	12
Raw material		PVC
Clamping force	Ton	250
Mold plate force	Mm	740*198*680
Disc diameter	Mm	4700
Heating power	Kw	14/7.2
Diameter of screw	Mm	85/65
Injection Cap (max)	cm³	1100
Rotating speed of screw	r·p·m	0-200
Injection pressure	Kg/cm²	140
Max Injection Distance	mm	200
Motor Power	kw	37(22+15)
Total electricity	KW	62
Machine dimension	mm	5550*5100*2450

The machine is computer numerical control, driven by Hydraulic Motor, full hydraulic pressure. Hydraulic system is controlled by proportional valve. The import hydraulic parts are optimized in composition, no oil leak. Practical design, large production, low energy consuming, high degree of automatization.

Feature:

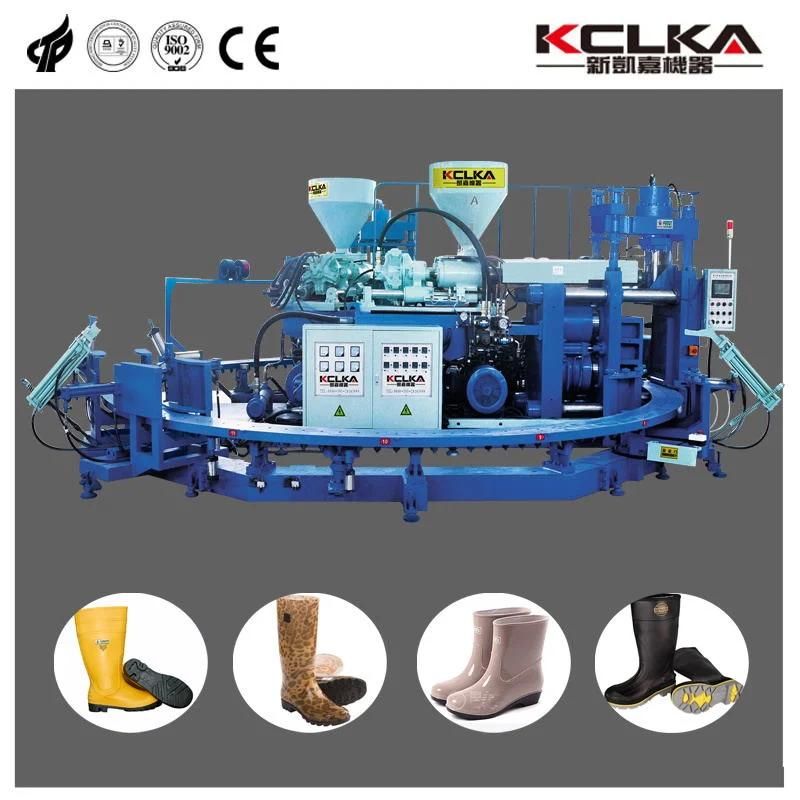

1. The machine can be used to produce single or double color rain boot with the raw material for PVC.
2. Humanized man-machine interface, PLC controlling, touch-screen display.
3. Double-ratio hydraulic system;
4. Accurate digital measurement;
5. Rational layout, easy to operate and it can be run without professionals;
6. This machine has the manipulator to operate, the fully-automatic control, and may save power and increase the production.



FAQ

Delivery date:
Within 20 days After receiving the 30% earnest money

Payment term:
Advance payment at order 30%, 70% before shipment

Delivery State:
Machines were taken apart and packed in suitable package that fits container shipping

For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Our technician will manage all the machine things for you and at the same time   train  your  workers on
how  to use  and maintain the machine.

Guarantee Time:
One-year warranty and lifelong service.  During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
