• Model NO.：TCII-1
• Station Number：Two
• Material：HDPE ,PE,PP,PVC,LDPE
• Max Product Volume：5liters
• Screw Diameter：65mm
• Screw L/D Ratio：24 L,D
• Screw Drive Power：18.5 Kw
• Screw Heating Capacity：6 Kw
• Heating Zone：3 Zones
• Machine Weight：5.5ton
• Transport Package：Film Packing
• Specification：TCII-1
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：160-170PCS,H

Basic Info.

Model NO. TCII-1 Station Number Two Material HDPE ,PE,,PP,PVC,LDPE Max Product Volume 5liters Screw Diameter 65mm Screw L/D Ratio 24 L/D Screw Drive Power 18.5 Kw Screw Heating Capacity 6 Kw Heating Zone 3 Zones Machine Weight 5.5ton Transport Package Film Packing Specification TCII-1 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity 160-170PCS/H

Product Description

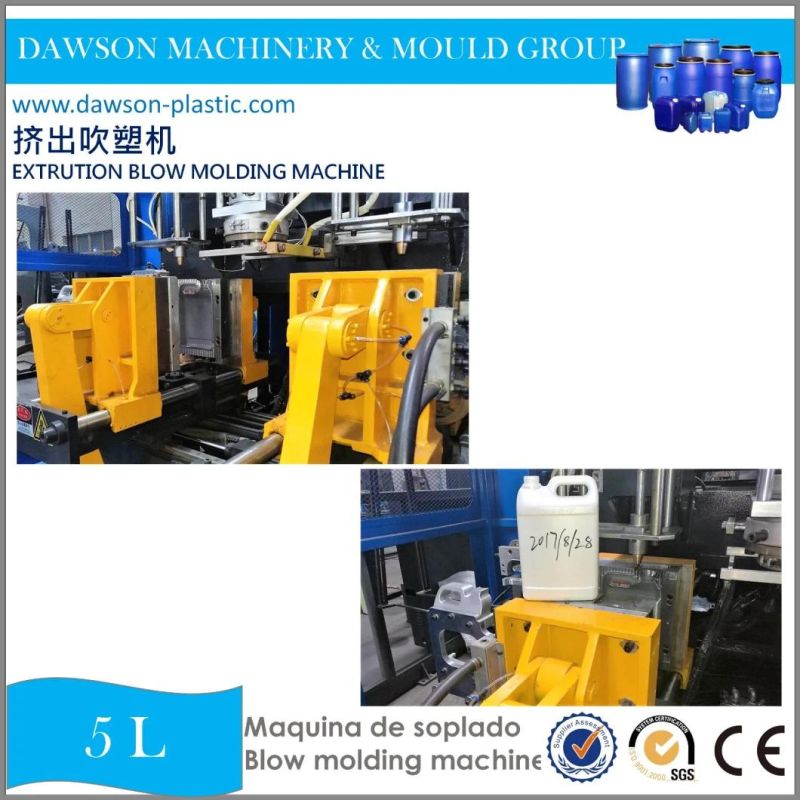

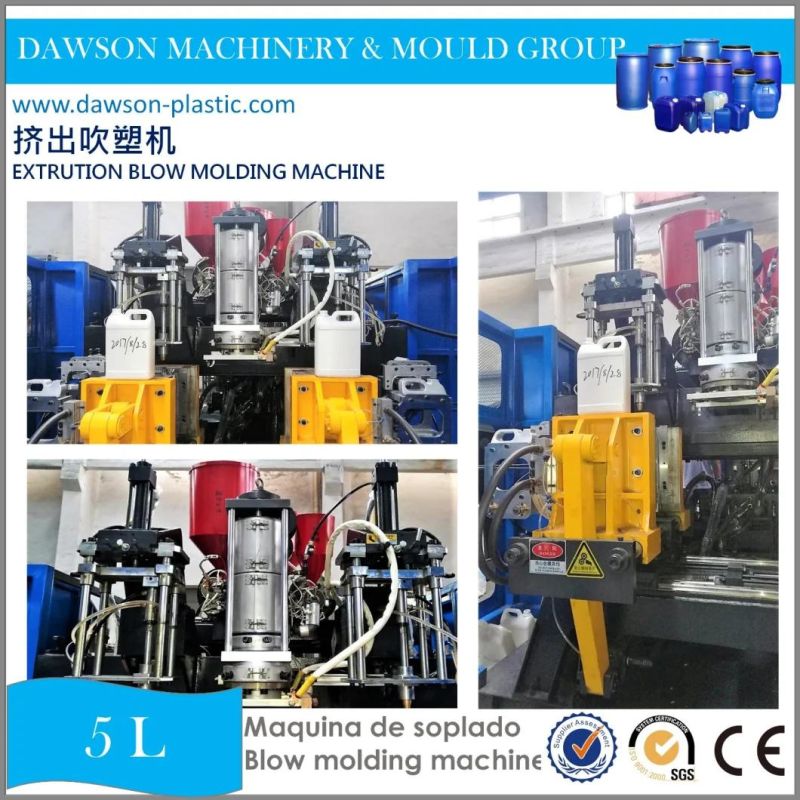

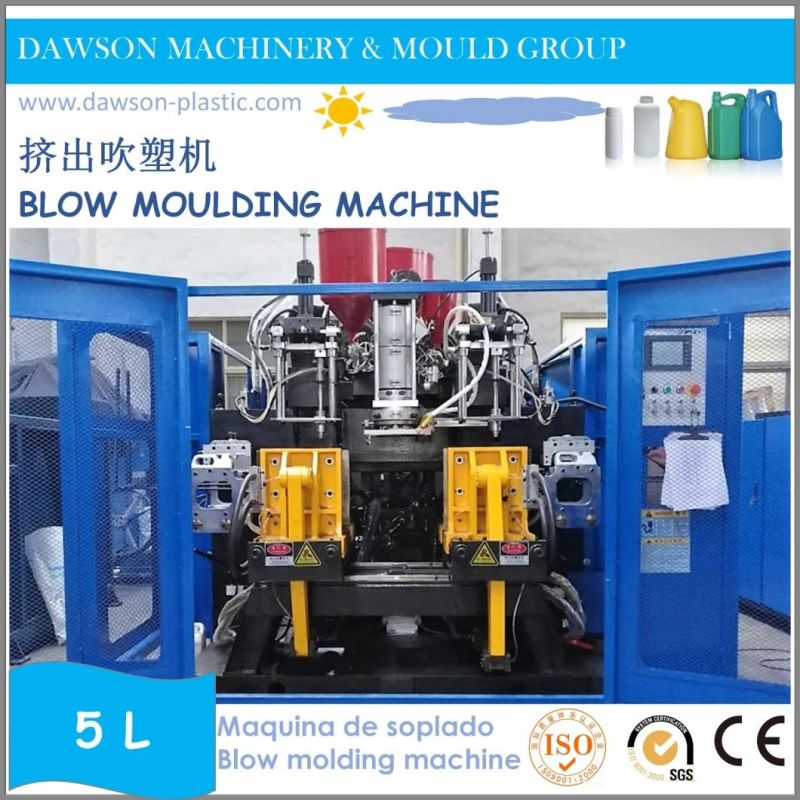

 TC75 full-automatic bottle making machine is specially designed for plastic water bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over5Liters.Double station and two die head design is very easy to operate and maintain.Most components of the blow molding machine are from world famous brand.



Max. Product volume	5Liters
Out put capacities	160~170pcs/h
Screw diameter	75mm
Screw L/D ratio	24L/d
Screw drive power	18.5kw
Screw heating capacity	6kw
Heating zones	3zones
HDPE output	80kg/h
Oil pump drive power	7.5kw
Clamping force	65kn
Mold max size	148-568mm
Mold stroke	330*370mm
Max die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6m³/min
Cooling water pressure	0.3mpa
Water consumption	50L/min
Machine size	3.1*1.5*2.7m
Machine weight	5.5ton
