Mini HDPE LDPE Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Screw Diameter：50,55mm
  • Automation：Non-Automatic

Base Info

  • Model NO.：FB-E
  • Computerized：Non-Computerized
  • Certification：CE, ISO9001:2008
  • Certificate：CE, ISO9001
  • Material：HDPE, LDPE
  • Blowing Speed：40-50kg,H
  • Transport Package：Stretch Film or Wooden Case
  • Specification：CE, ISO9001
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：84773010
  • Production Capacity：30 Set,Month

Description

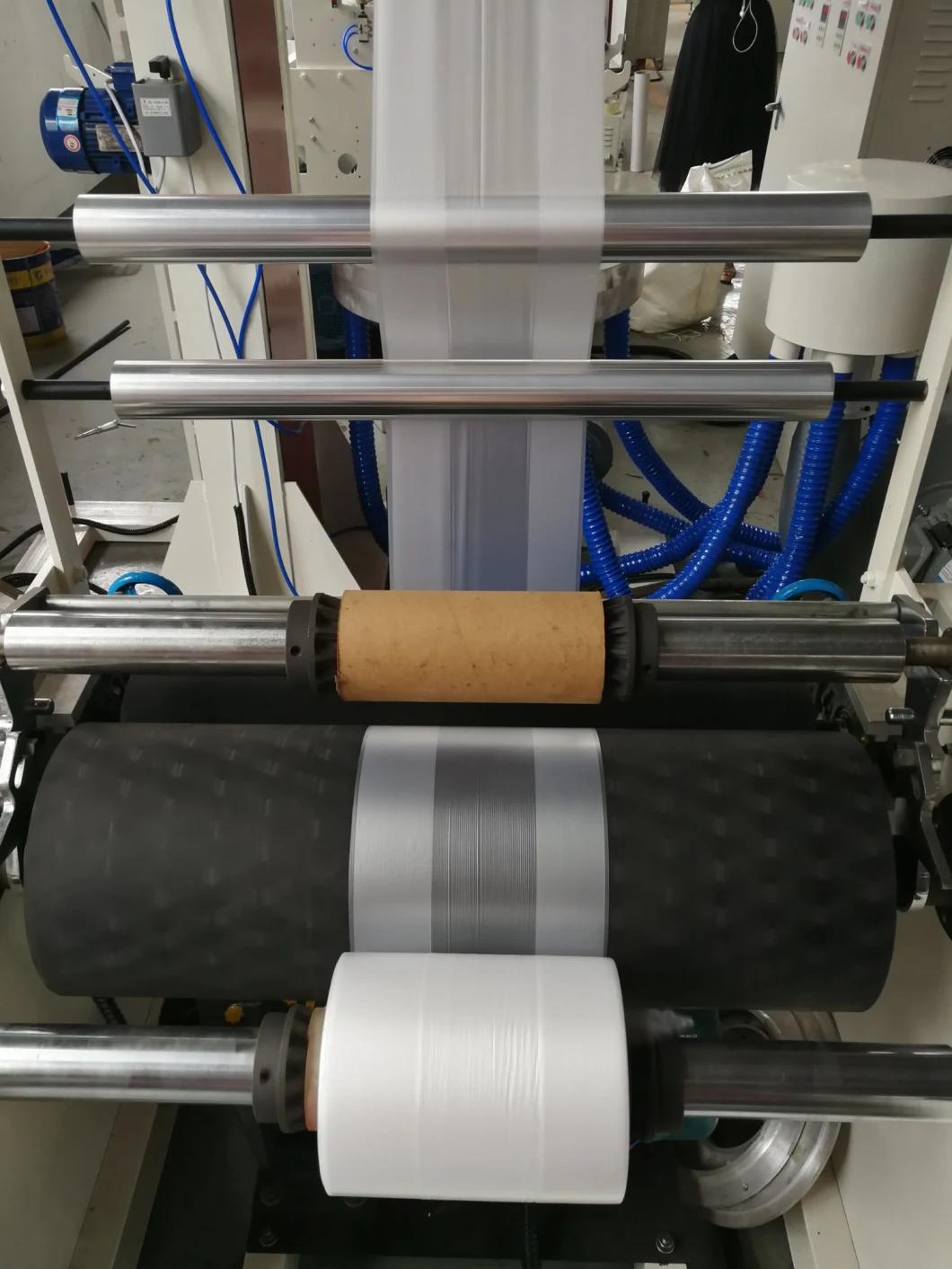

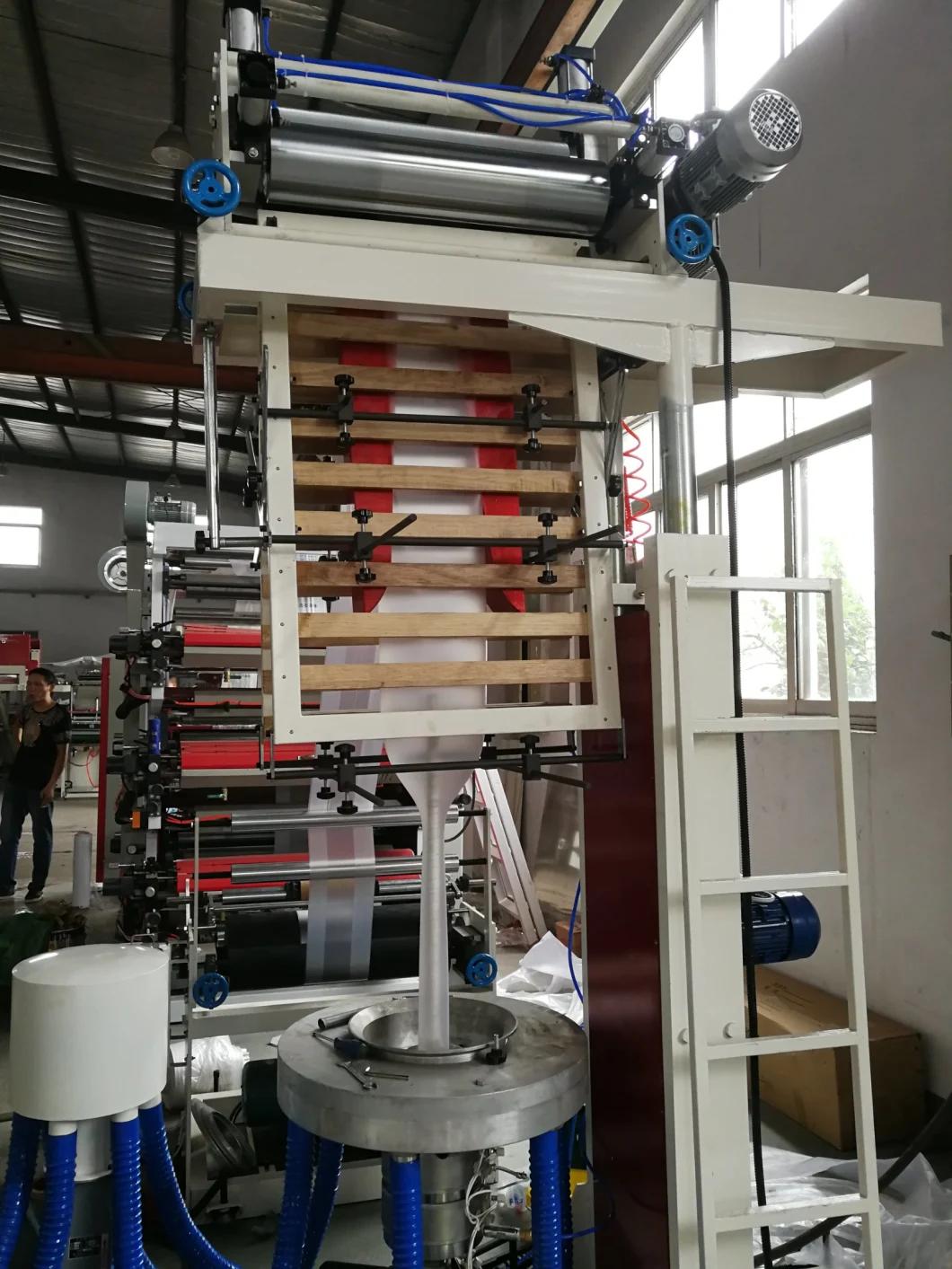

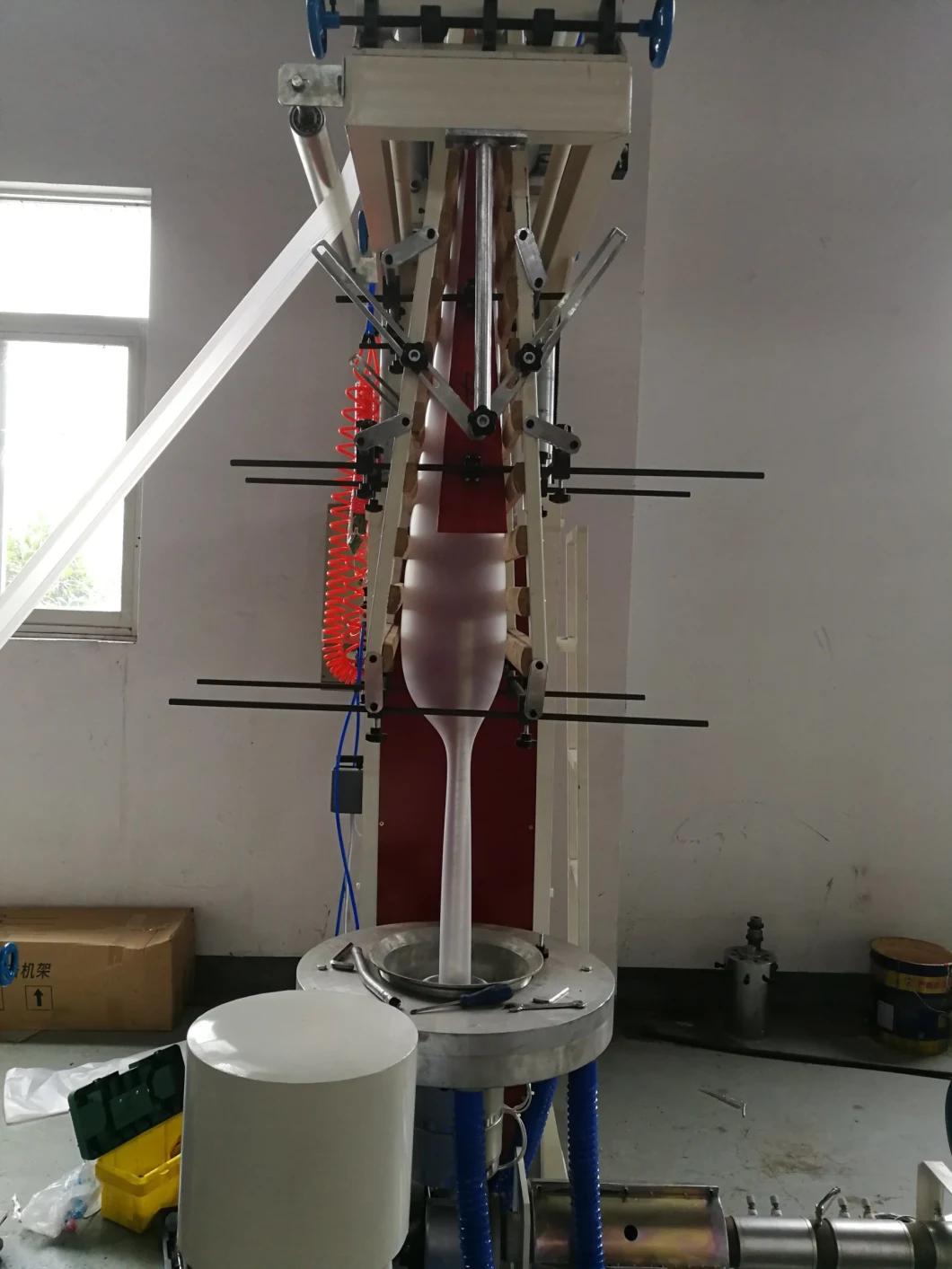

Main Technical VariablesModelFB-E- 600FB-E- 800Screw diameter(mm)50mm55mmScrew L/D RatioL/D28:1L/D28:1Screw rotation10-100r/min10-100r/minPower of main motor11kw15kwMax.Extrude Output40kg/h50kg/hSingle-face Thickess of film0.01-0.10mm0.008-0.10mmMax Film Folding Dia.600mm800mmLifting Range of Auxiliary Machine700mm700mmTotal Power22kw28kwMachine of weight2200kg2600kgOverall Dimension(L×W×H)4000×2000×2800mm4600×2300×3800mmMACHINE PICTURES FOR REFERENCE
Mini HDPE LDPE Film Blowing MachineMini HDPE LDPE Film Blowing MachineMini HDPE LDPE Film Blowing Machine
