• Model NO.：FC-90+50
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Cylinder Diameter：Diameter 35mm
• Screw L/D Ratio：25:1
• Revoling Speed of Screw：60rpm
• Extrusion Output：15
• Power for Main Machine：11kw
• Conductor Diameter：From 0.2mm- to 1.02mm
• Finished Wire Diameter：0.6mm-1.67mm

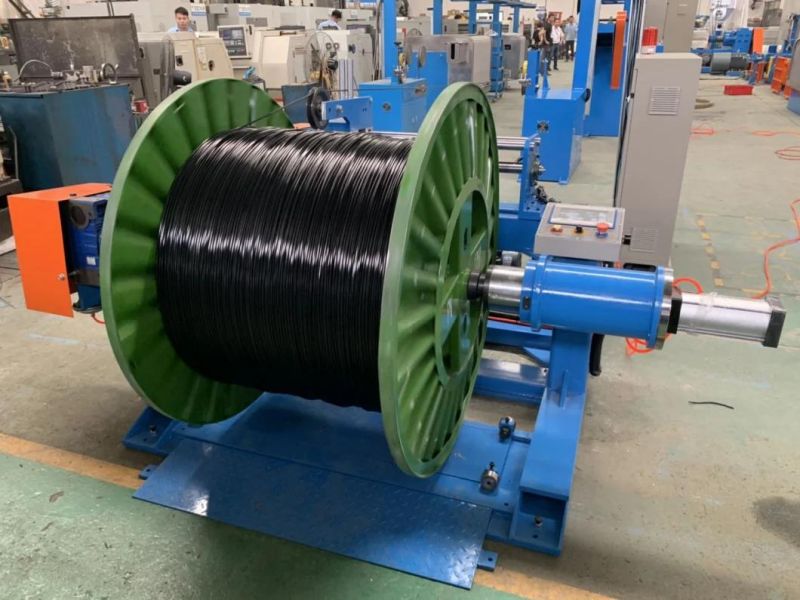

• Take up：Biaxial Rooling
• Take up Power：2.2kw
• Max of Accumulator Length：200m
• Transport Package：Simply Packed
• Specification：ISO9001
• Trademark：FC
• Origin：China
• HS Code：8477209000
• Production Capacity：20set,Month

Basic Info.

Model NO. FC-90+50 Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Cylinder Diameter Diameter 35mm Screw L/D Ratio 25:1 Revoling Speed of Screw 60rpm Extrusion Output 15 Power for Main Machine 11kw Conductor Diameter From 0.2mm- to 1.02mm Finished Wire Diameter 0.6mm-1.67mm Take up Biaxial Rooling Take up Power 2.2kw Max of Accumulator Length 200m Transport Package Simply Packed Specification ISO9001 Trademark FC Origin China HS Code 8477209000 Production Capacity 20set/Month

Product Description

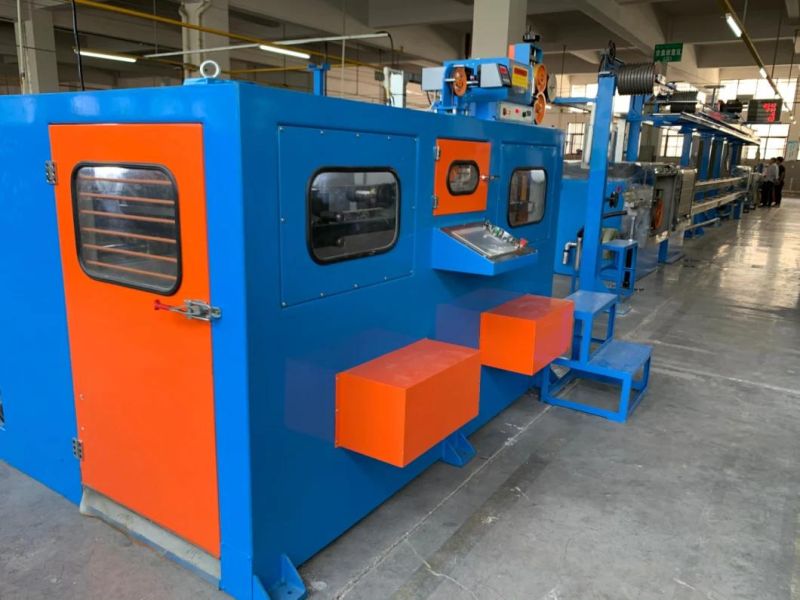

It's applied to extruding FEP(F-46). PFA and ETFE(F-40) and other products, which can bear high temperature.
1. Core wire diameter: Φ0.2-φ1.02mm
2. Finished wire diameter: Φ0.6-φ1.67mm;
3. Speed of extruding line: Max15-50m/min;
4. Center height of main engine: 1000mm
5. Direction o extruding line: Optional for right
6. Operation mode: Touch screen operation
 Tech. Parameter:
1)Power: 11kw AC motor
2)Reducer gear box: Milling gear imported from Italy ZLYJ133-II, the specialized reducer gear box for extrusion
3)Screw: GH113, φ45MM, ratio: 25: 1
4)Screw drum: GH113
5)Screw speed: 10-60r/min
6)Hot dip: 220V voltage, 3 phase screw drum, cast copper heater, each phase 2.2KW; 1 phase clamp, cast copper heater, 1000W.
7)Clamp type: Flange bolt fix way
8)Cooling way: 3 sets screw cooling high voltage centrifugal fan, 60W power, the clamp cooling itself.
9)Total power: 11+3*2.2+1+3*0.06=20KW
10)Dimension: L2000*W1300*H1500mm
11)Vacuum installation
12)Weight: 800KG
13)Spare parts: 1set clamp cast copper heater; 2 bar hot dip; 1 handpiece, and 1 eye die heater.

Please email me if you have other questions.
