Plastic Machinery

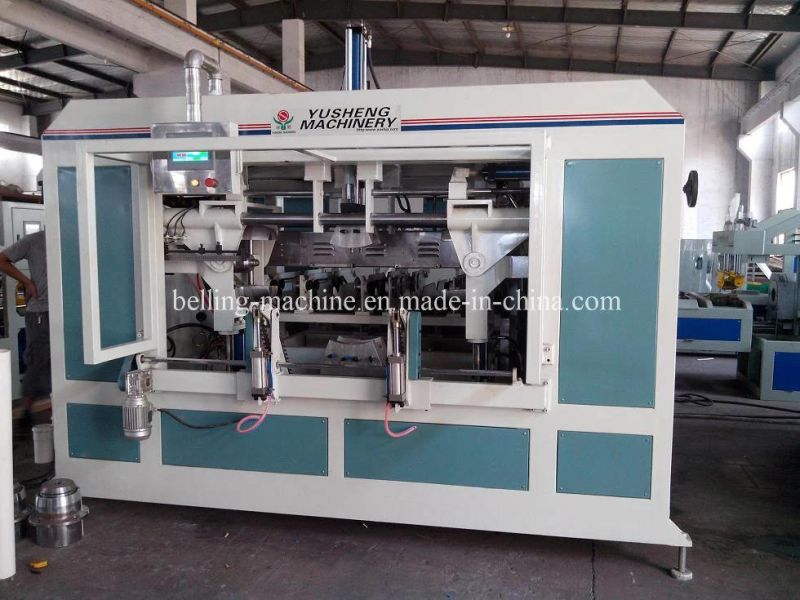

Automatic Conduit Bending Machine for PVC Pipe

Zhangjiagang Yusheng Machinery Co., Ltd.
  • Product Type:PVC Pipe
  • Screw No.:No Screw
  • Automation:Semi-Automatic
  • Computerized:Non-Computerized
  • Customized:Non-Customized
  • Condition:New

Base Info

  • Model NO.:160mm

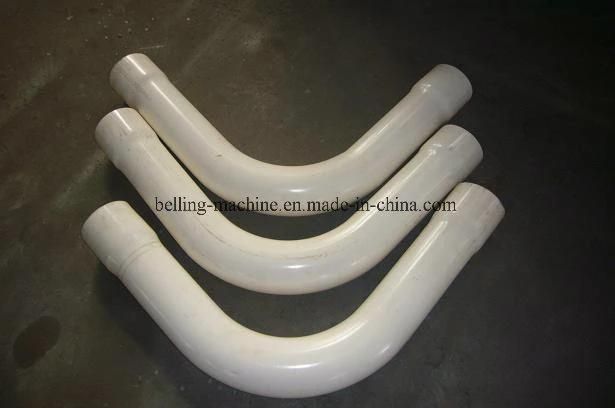

  • Bend Degree:90 Deg, 45 Deg
  • Pipe Length:0.5m-1.3m
  • Heating Method:Ceramic and Infrared Heating
  • Cooling Method:Air Cooling and Water Cooling
  • Belling Range:Od75mm-160mm
  • Electrical Parts:Siemens, ABB, Schneider
  • Control:by Siemens PLC
  • Guarantee Period:1 Year
  • Manufacturing Time:50 Days
  • Bending Degree:45 and 90 Degree
  • Transport Package:Wooden Box
  • Specification:full automatic
  • Trademark:Yusheng
  • Origin:Zhangjiagang
  • HS Code:84778000
  • Production Capacity:30sets Per Month


.Technical Parameters:1Dimension3100×2440×2300mm2 Pipe diameter75-160mm3 Heating MethodCeramic and infrared heating4Heating Power18kw5Heating Position26Cooling MethodAir cooling and Water Cooling7The power of Hydraulic system4kw8Belling position29Belling typeStaight type and R type10Hydraulic OilNo.46 Oil11The highest heating temperature30012Air Pressure0.4-0.6Mpa13 Water Pressure0.2-0.3Mpa14 power of Rorating motor0.37kw15power of discharging motor0.18kw16Speed of bending pipeone Automatic Conduit Bending Machine for PVC Pipe
Automatic Conduit Bending Machine for PVC Pipe
