• Model NO.：XR800
• Computerized：Computerized
• Certification：CE, BV
• Warranty：One Year
• Shredding Room：800*800 mm
• Rotor Diameter：400 mm
• Motor Bran：Simo, Wannan, Siemens, Weg
• Blade Materials：D2, DC53
• Delivery Time：15-30 Working Days
• Bearing：Heavy Duty Bearing
• PLC Control：Siemens
• Hydraulic Station：3 Kw
• Voltage：According to Customer
• Output：500-1000 Kg,Hr
• Screen Size：40-100mm
• Main Eletrical Equipment：Schneiders
• Weight：3700 Kg
• Rotary：80 Rpm
• Transport Package：Stretch Film,Wooden Pallet
• Specification：XR800
• Trademark：Zinmachine
• Origin：China
• HS Code：8477800000
• Production Capacity：100 Sets Per Year

Model
Motor (kw)
Diameter of rotor
(mm)
Speed
(rpm)
Rotating Knife (pcs)
Fixed Knife (pcs)
Hydraulic Motor power (kw)
Weight (kg)XR60022Φ2807526+422.22300XR70030 or 37Φ2807532+4233200XR80045Φ4007534+4233700XR100055Φ4007546+4244500XR120075Φ5007568+425.56700XR150090 0r 110Φ5507584+627.5 9000XR2000132 or 160Φ60075112+6211 13000Note:The above Technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

Application Area:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;

Machine Photos:

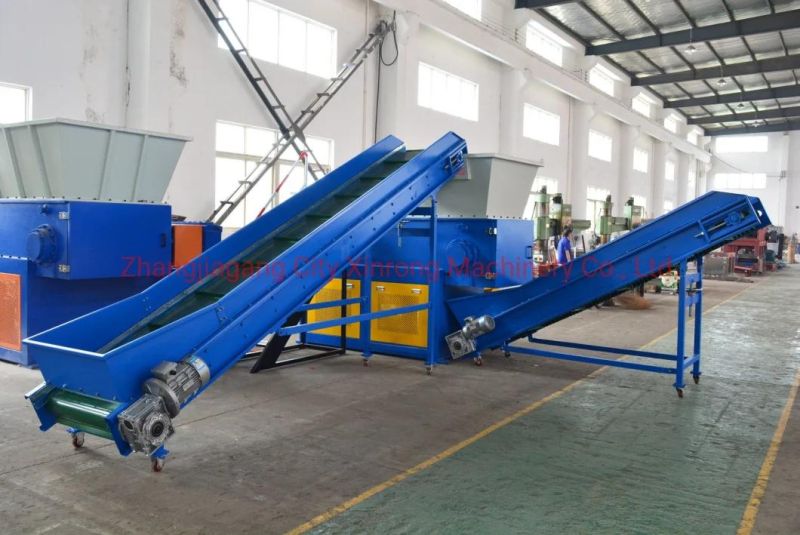

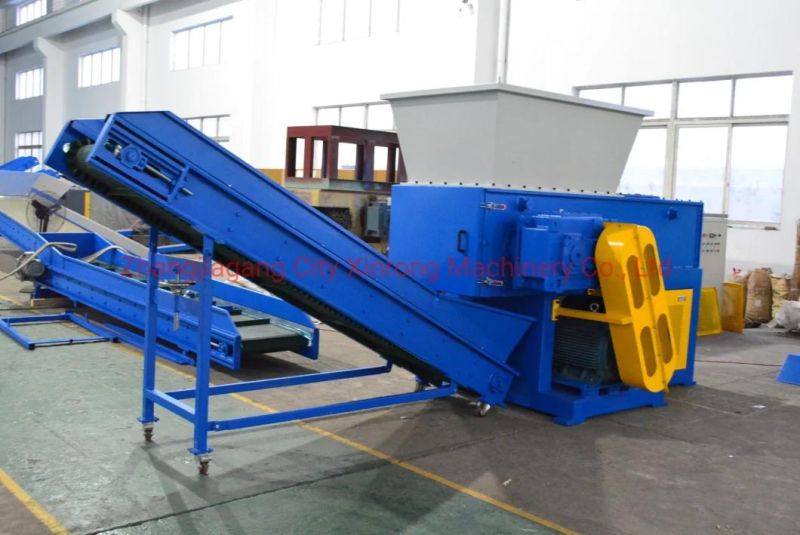

Single Shaft Shredder-XR800

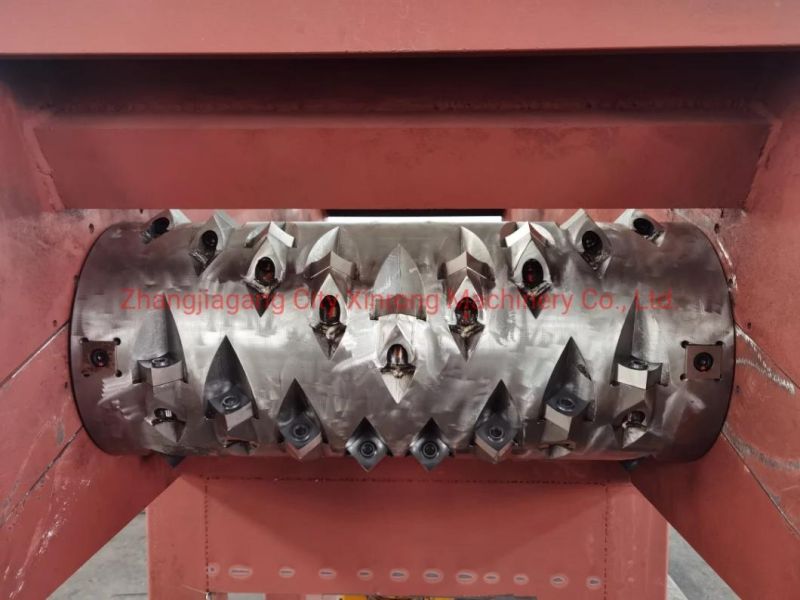

Rotor:

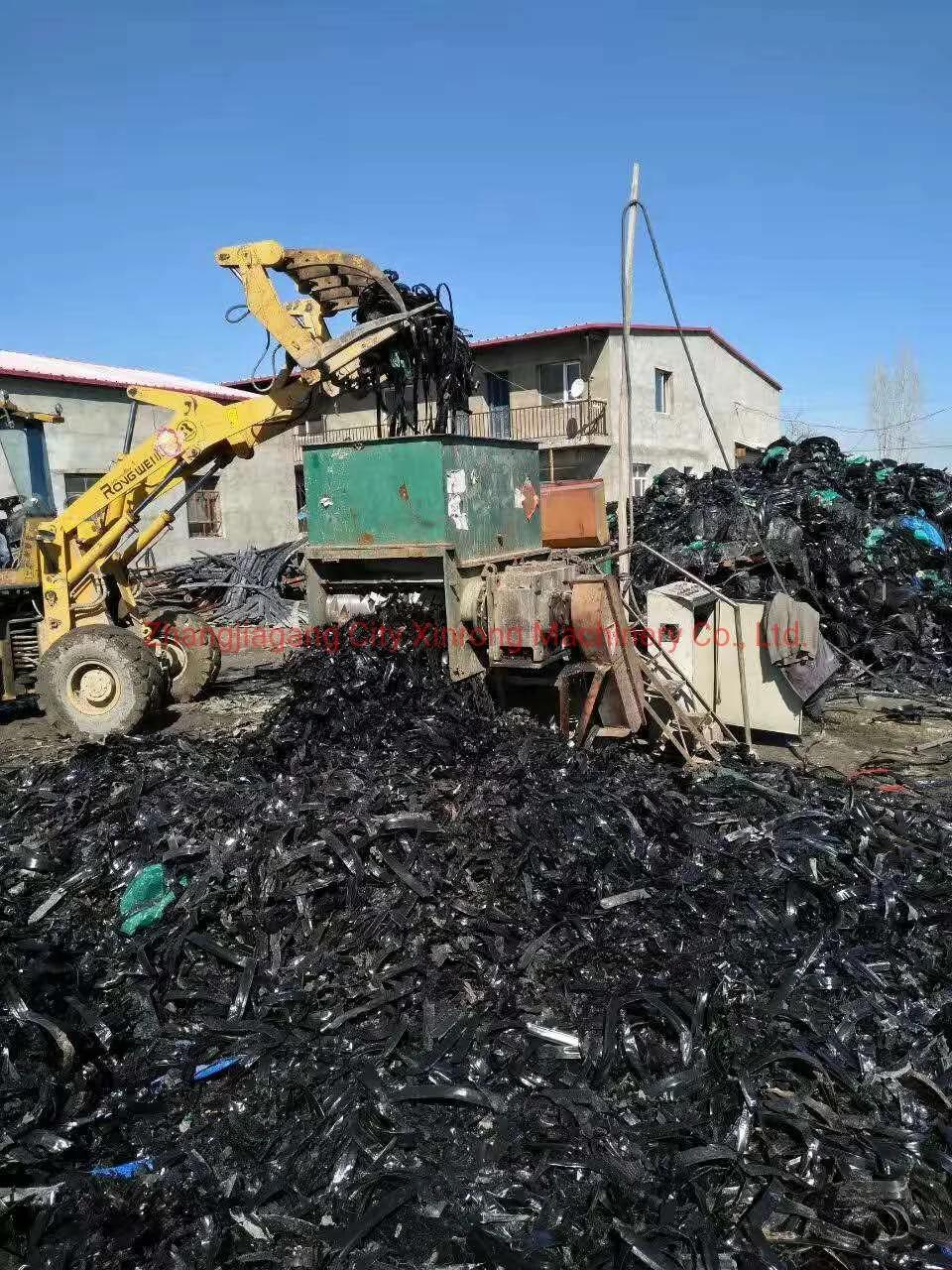

customer working site (China):

About us:
Shredding effects:

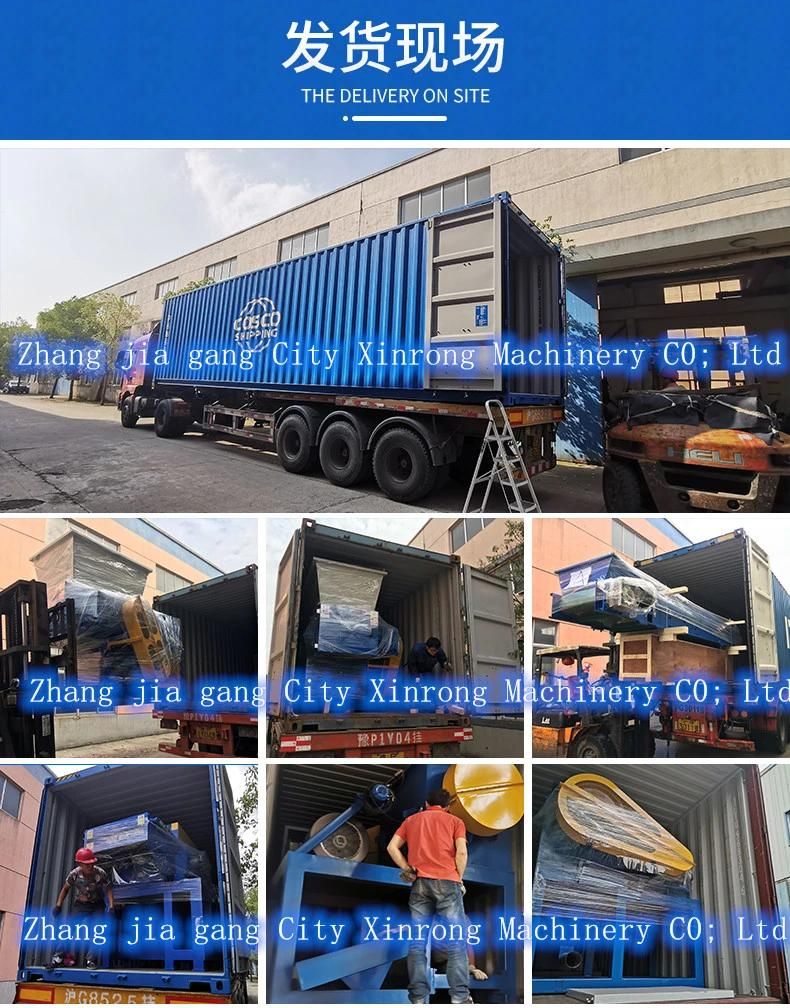

Machine Delivery:

IF YOU WANT TO KNOW MORE DETAILED INFORMATION OF THE MACHINE, PLEASE FEEL FREE TO CONTACT OR EMAIL US.
