• Model NO.：PE-110,600
• Condition：New
• Application：for Producing Pre-Insulated Pipe Jacket
• Pipe Diameter：From 110-600 mm
• Raw Material：PE
• Transport Package：Standard Package
• Specification：PE-110,600
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：100 Unint,Year

Basic Info.

Model NO. PE-110/600 Condition New Application for Producing Pre-Insulated Pipe Jacket Pipe Diameter From 110-600 mm Raw Material PE Transport Package Standard Package Specification PE-110/600 Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 100 Unint/Year

Product Description

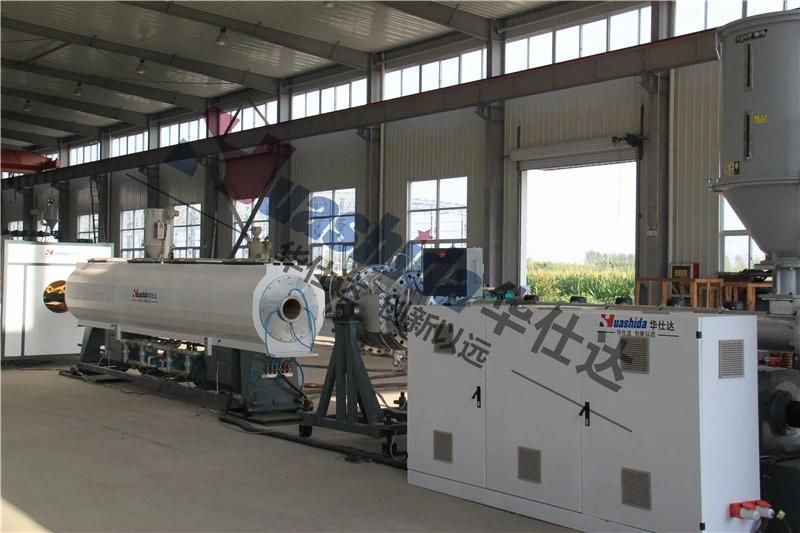

HDPE PU Thermal Insulation Jacket Pipe Extrusion Production Machine Line

---Pipe diameter range: 110-600mm, 655-1372mm, 960-1680mm
---The extrusion line comprise equipments and devices as below,
    1set   Vacuum loader
    1set   Hopper dryer
    1set   High-effeciency single screw extruder
    1set   single screw extruder for mark line
    1set   Vacuum calibration table
    1set   Water spraying tank
   1 set Hauling Machine
   1set   Cutting machine
    1set   Stacker


I. Pipe Usage
---HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.

II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ75/33---250-350kg/h
SJ120/33---700-900kg/h
SJ150/33---800-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is much waste pipe and material, no need workers to crush waste          material.
3.  High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 pcs of 11.6meters pipe, it is much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5.  No need trim edge, once forming.


III. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.

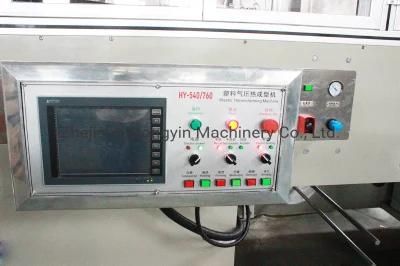

IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.


V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors

Style	PE-110/600		PE-650/1372	PE-960/1680
Main extruder	SJ-75/33		SJ-120/33	SJ-150/33
Pipe diameter	Φ365-960mm		Φ 650-1372	Φ 960-Φ 1680mm
Capacity	250-350kg/h		700~900 kg/h	800-1200kg/h
Installed power	160kw		440 kw	580kw
Length	28m		32 m	45m
