• Model NO.：PL
• Screw Design：Conical Twin Screw
• Screw Material：38crmoala
• Raw Material：PVC Powder+Additives
• Product：PVC Corner Bead
• Inverter：ABB Brand
• Motor：Siemens Beide
• Name：PVC Ceiling Tile Produciton Line
• Transport Package：Wood Package
• Specification：it depends
• Trademark：Plastar
• Origin：China
• HS Code：8477800000
• Production Capacity：100sets,Year

PVC material

CACO3

STABILIZER

STEARIC ACID

WAX

TiO2

 Color

RECYCLE POWDER

with high temperature trun the designed shape by mold , water cooling table makes the surface temperature down , different kind material units , different water cooling speed ,the forming cooling table is adjustable .   then haul off machine ,cutter ,stacker.

Product Features

The conical double-screw plastic extruder has the characters such as force extruding, high quality, wide application, long usage time, low cutting speed, not-easy decomposition of material, good plasticized performance, powder forming directly, etc. This extruder is equipped with self temperature controlling and vacuum exhausting devices. It suits for the production of pipes, plates, special shaped materials, etc.

Model Parameters

ModelExtruder  modelScrew diameter(mm)Capacity(kg/h)Main motor(kw)FLD45SJSZ45/9045/908015FLD51SJSZ51/10551/10511018.5FLD55SJSZ55/11055/11015022FLD65SJSZ65/13265/13222030/37FLD80SJSZ80/15680/15635055FLD92SJSZ92/18892/188650110

Production Process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table →Haul-off machine→ Cutting machine → Stacker

Production line list
This production line is composed of mixing machine,Screw feeder,conical twin-screw extruder,extrusion mould,vacuum calibration table, haul-off machine, cutting machine and stacker,crushing machine,milling machine

No.Machine NameQuantity1Screw feeder1 set2SJSZ series conical twin screw extruder1 set3Extrusion mould1 set4Vacuum calibration table1 set5Hauling-off machine1 set6Automatic cutting machine1 set7Stacker1 setSupporting Machines(Optional)1High speed mixing machine1 set2Crushing machine1 set3Milling machine1 set

Production Line Photos

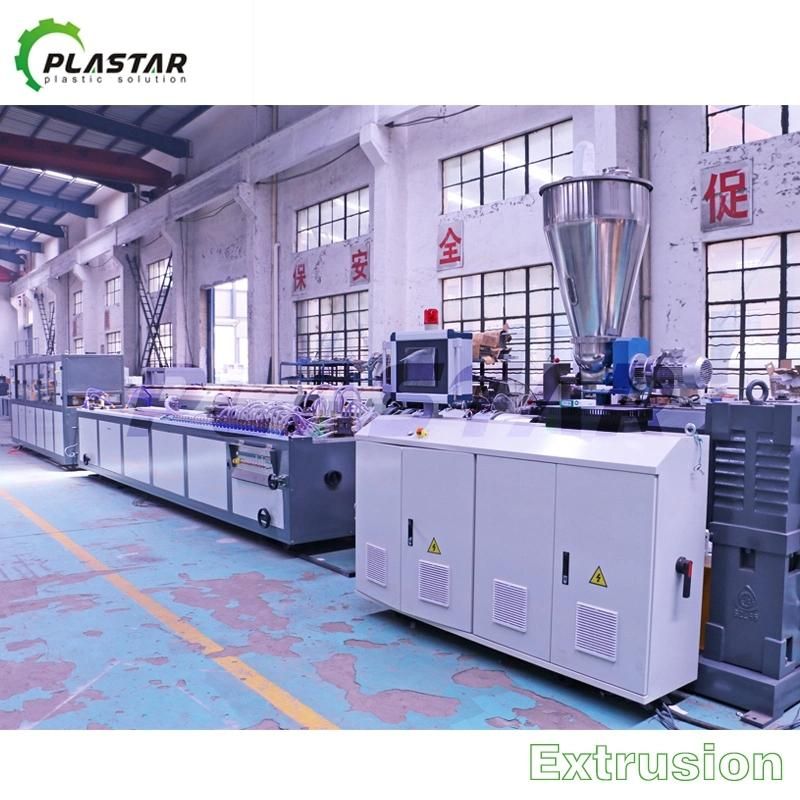

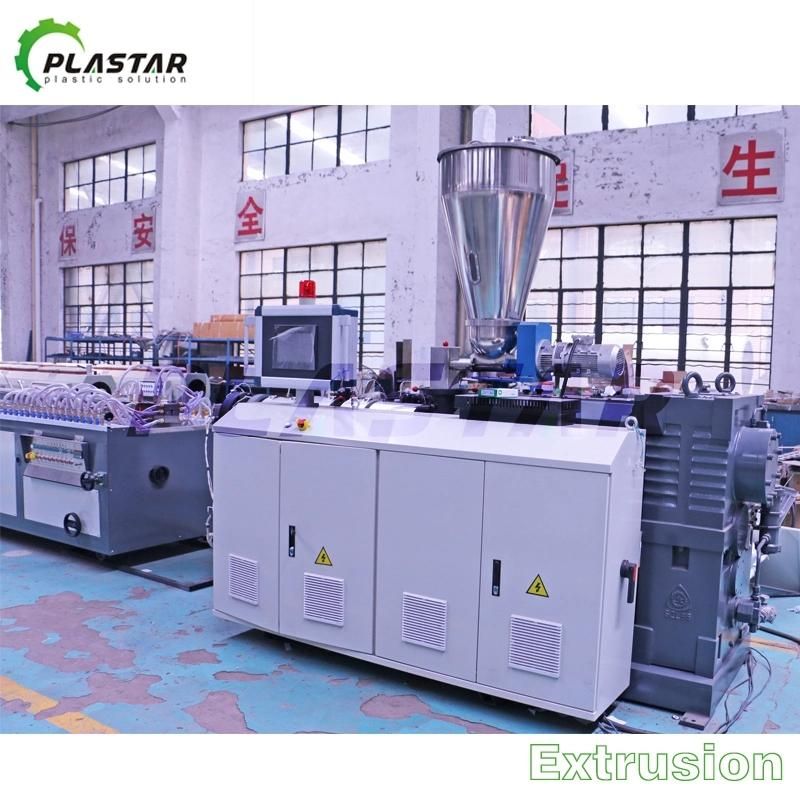

Extruder machine

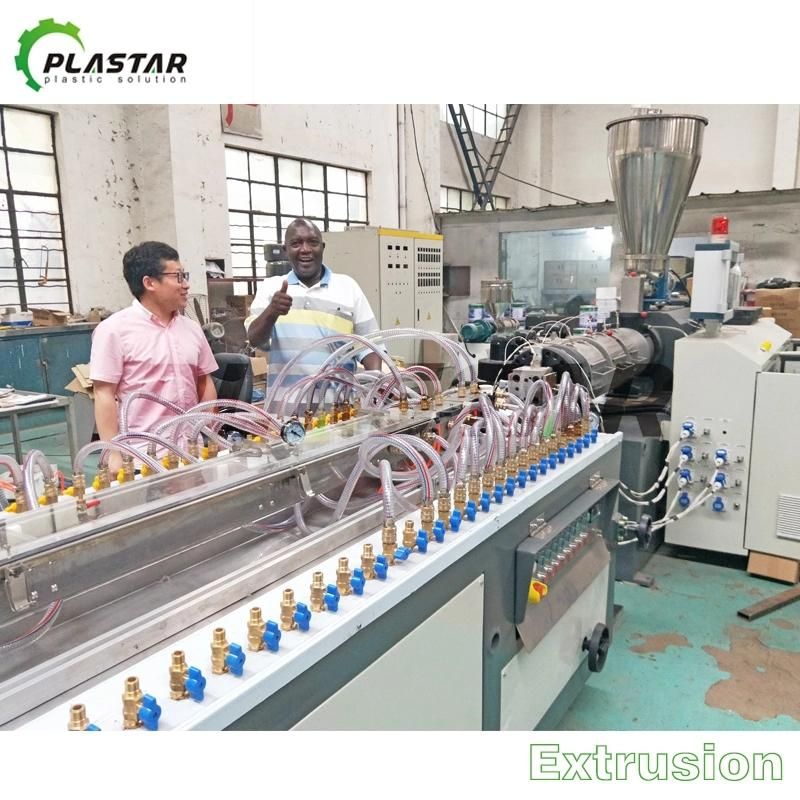

Vacuum Calibration Table:


Haul off & Cutter Machine

Customer Visiting:


Package&Shipping:



Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
