• Model NO.：SPEG-110 SPEG-160 SPEG-250 SPEG-450 SPEG-630
• Customized：Customized
• Condition：New
• After-sales Service：Overseas Installation, Free Technical Supporting
• Application：Water Supply Pipe
• Extruder：High-Efficient Single Screw Extruder
• PLC Cotnrolling：Siemens
• Cutting Methtod：Planetary Cutting
• Transport Package：Standard Package
• Specification：EN253,EN448,EN728,ISO1133,ISO8501-1.ISO9001
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：1000unit,Year

Basic Info.

Model NO. SPEG-110 SPEG-160 SPEG-250 SPEG-450 SPEG-630 Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Application Water Supply Pipe Extruder High-Efficient Single Screw Extruder PLC Cotnrolling Siemens Cutting Methtod Planetary Cutting Transport Package Standard Package Specification EN253,EN448,EN728,ISO1133,ISO8501-1.ISO9001 Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 1000unit/Year

Product Description

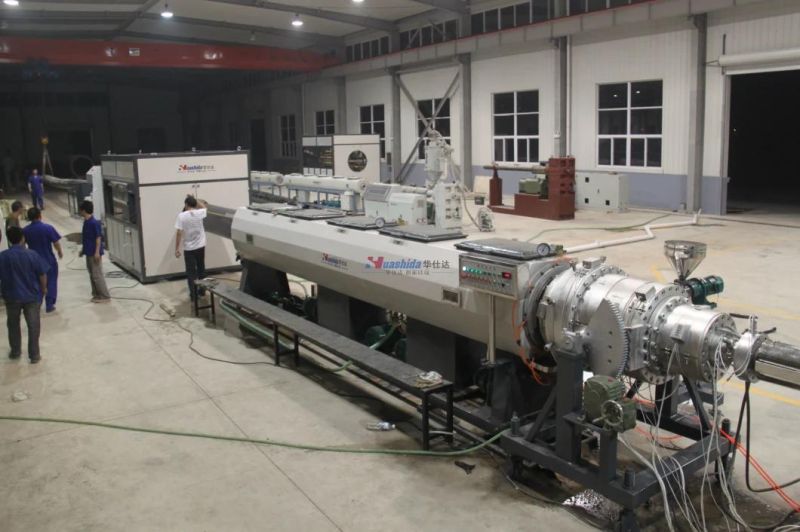

HDPE Water Gas Transporting Supply Pressure Pipe Extrusion Line

INTRODUCTION
Pipe range: 20-63mm, 90-250mm 110-315mm 400-630mm

Pipe application area:
Municipal water supply and gas supply etc.


Composition of Equipment
1.    1set  Vacuum loader
2.    1set  Hopper Dryer.
3.    1set  Efficient single screw extruder (Long L/D ratio)
4.    1set  Mould
5.    1set  Co-extruder for mark line.
6.    1set  Vacuum calibration tank
7.    2sets Water spraying tank
8.    1set  Hauling machine
9.    1set  Cutting machine
10.  1set  Stacker

Extruder
Efficient single screw extruder with water-cooling force feeding system and barrel with grooving in the feeding zone are designed to save the power of the main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.

Extrusion die head
The flow channel is specially treated to have better wear-resisting; spiral die head increases extrusion pressure to improve the quality of the pipe.

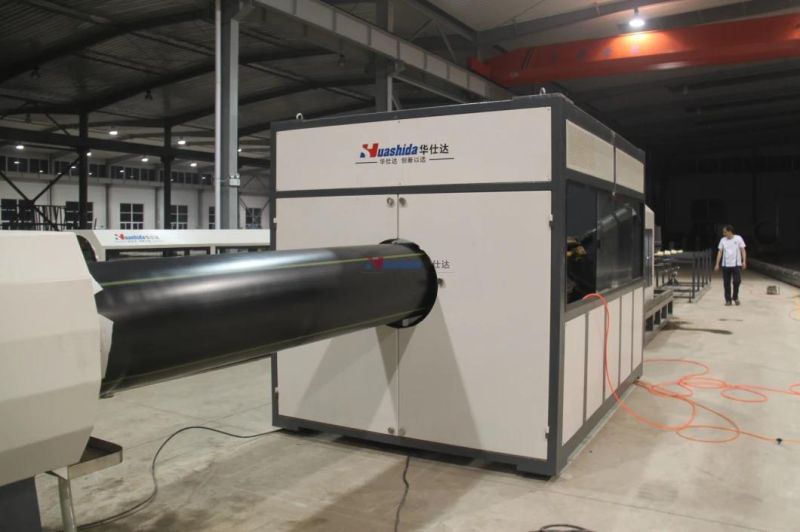

Vacuum calibration tank & Water spraying tank
It adopts bronze or stainless steel calibrators; High-efficiency water-spraying cooling to ensure the quality of pipes.

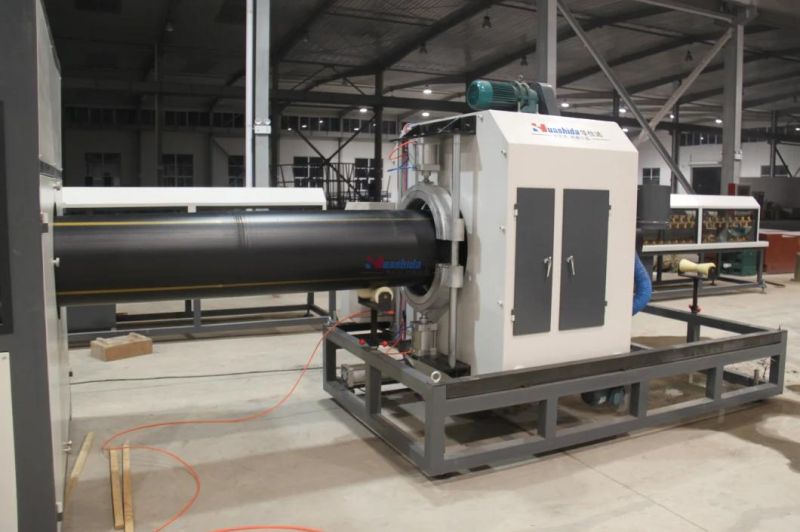

Hauling machine
High qualified rubber block is with longer life, we don't accept blocks made by recycled materials. Hauling speed is synchronized with extruder.

Planetary cutting machine
High qualified alloy steel blade; planetary cutting to get smooth edge; High cutting precision; PLC controlling.


TECHNICAL PARAMETERS


Style	PE16/63	PE75/160	PE160/315	PE200/450	PE-315/630	PE-500/800	PE-710/1200
Main extruder	SJ-65/30	SJ-75/33	SJ90/33	SJ90/33	SJ-120/33	SJ-120/33	SJ-150/33
Main motor	55kw	90kw	132kwDC	160kwDC	185kwDC	250kwDC	400kwDC
Pipe diameter	Φ16-63mm	Φ75-160mm	Φ160-315mm	Φ200-450mm	Φ315-630mm	Φ850-1372mm	Φ960-1680mm
Capacity	80-100kg/h	180-250kg/h	280-400kg/h	350-500kg/h	450-600kg/h	700-900kg/h	800-1200kg/h
